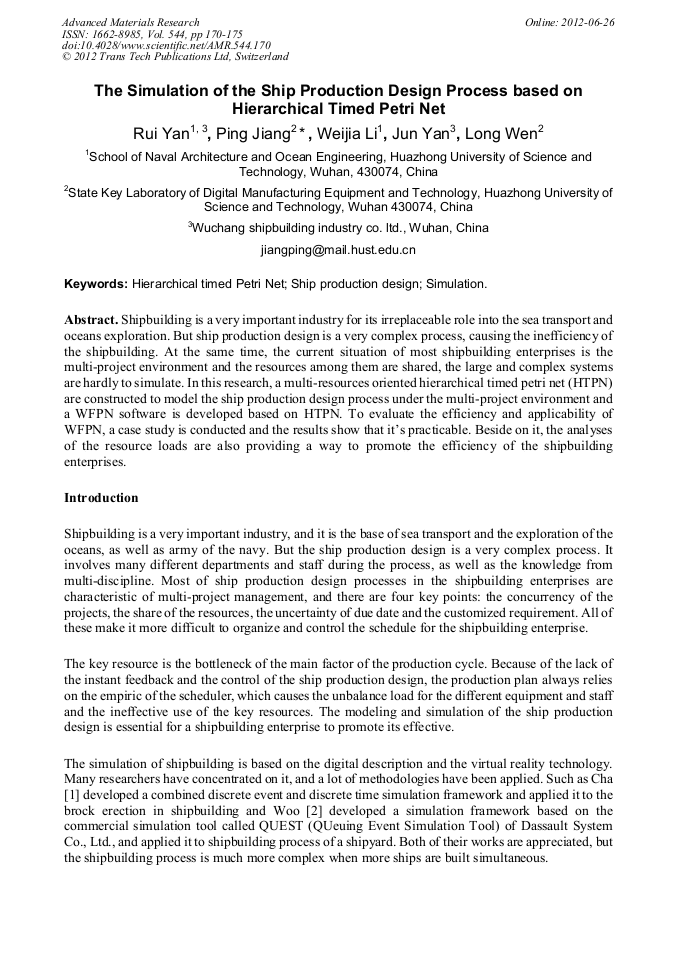

The Simulation of the Ship Production Design Process Based on Hierarchical Timed Petri Net

Abstract:

Shipbuilding is a very important industry for its irreplaceable role into the sea transport and oceans exploration. But ship production design is a very complex process, causing the inefficiency of the shipbuilding. At the same time, the current situation of most shipbuilding enterprises is the multi-project environment and the resources among them are shared, the large and complex systems are hardly to simulate. In this research, a multi-resources oriented hierarchical timed petri net (HTPN) are constructed to model the ship production design process under the multi-project environment and a WFPN software is developed based on HTPN. To evaluate the efficiency and applicability of WFPN, a case study is conducted and the results show that it’s practicable. Beside on it, the analyses of the resource loads are also providing a way to promote the efficiency of the shipbuilding enterprises.

• Periodical: Advanced Materials Research (Volume 544)
• Pages: 170-175
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.544.170
• Online since: June 2012
• Authors: Rui Yan, Ping Jiang, Wei Jia Li, Jun Yan, Long Wen
• Keywords: Hierarchical Timed Petri Net, Ship Production Design, Simulation

References

[1] J. Cha, M. Roh, Combined discrete event and discrete time simulation framework and its application to the block erection process in shipbuilding, Adv. Eng. Softw. 41 (2010) 656–665.

DOI: 10.1016/j.advengsoft.2009.12.006

[2] JH Woo, Modeling and simulation of indoor shop system of shipbuilding by integration of the product, process, resource and schedule information. Ph.D. Thesis, Seoul National University of Korea; 2005.

[3] R. Valette, M. Courvoisier, D. Mayeux, Control of flexible production systems and Petri nets. Informatik fachberichte. 66 (1982) 264–267.

DOI: 10.1007/978-3-642-69028-0_18

[4] R. Valette, M . Nets in production systems. In G. Rozenberg, H. Genrich, G. Roucairal (Eds.). Advances in Petri nets 1986, Part 1, 255 (1987) 191–217.

[5] H.Y. Zhang, F. Xia, Improved Petri Net Based Fault Diagnosis for Ship Power System, Chuandian Jishu. 30 (2010) 35-38.

[6] X.P. Zhang, S. Hu, XK. Bao, Resources self-allocation in the ship collaborative design. Manufacturing Automation 30 (2008) 49-52.

[7] T. Zhang, GM. Zhang. Research of the process modeling of real-time concurrent design based on time petri net in shipbuilding. Science Technology and Enginering 11 (2011) 8810-8814.

[8] R Fehling. A concept of hierarchical Petri nets with building blocks, in: APN'93, Lecture Notes in Computer Science 674 (1993) 148–168.

DOI: 10.1007/3-540-56689-9_43

[9] K. Jensen, Coloured petri nets-basic concepts, analysis methods and practical use, second ed., Springer, New York, 1997.
