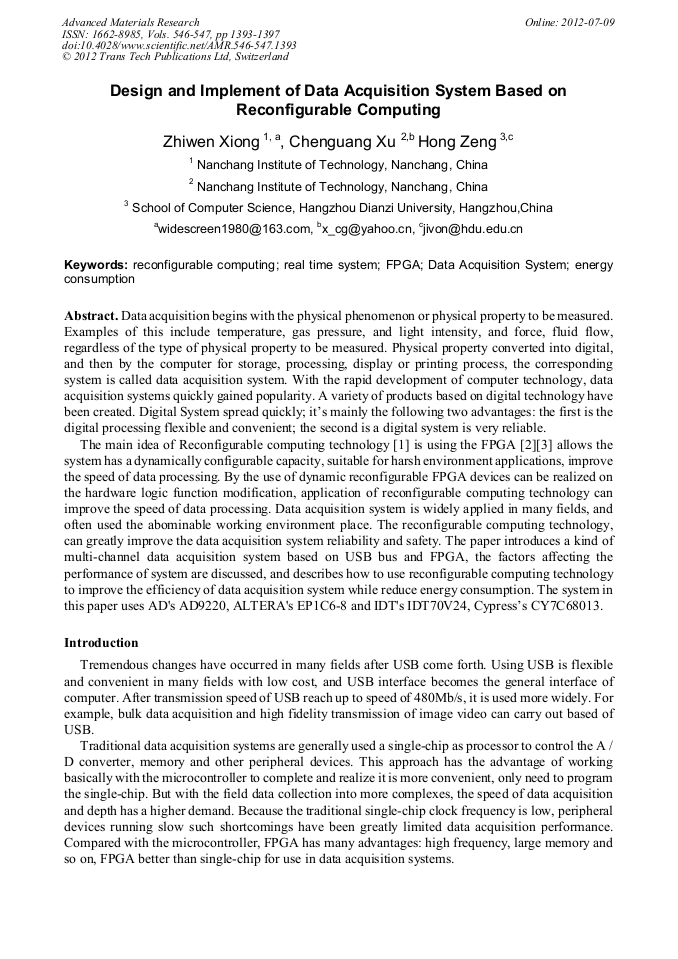

Design and Implement of Data Acquisition System Based on Reconfigurable Computing

Abstract:

Data acquisition begins with the physical phenomenon or physical property to be measured. Examples of this include temperature, gas pressure, and light intensity, and force, fluid flow, regardless of the type of physical property to be measured. Physical property converted into digital, and then by the computer for storage, processing, display or printing process, the corresponding system is called data acquisition system. With the rapid development of computer technology, data acquisition systems quickly gained popularity. A variety of products based on digital technology have been created. Digital System spread quickly; it’s mainly the following two advantages: the first is the digital processing flexible and convenient; the second is a digital system is very reliable. The main idea of Reconfigurable computing technology [1] is using the FPGA [2][3] allows the system has a dynamically configurable capacity, suitable for harsh environment applications, improve the speed of data processing. By the use of dynamic reconfigurable FPGA devices can be realized on the hardware logic function modification, application of reconfigurable computing technology can improve the speed of data processing. Data acquisition system is widely applied in many fields, and often used the abominable working environment place. The reconfigurable computing technology, can greatly improve the data acquisition system reliability and safety. The paper introduces a kind of multi-channel data acquisition system based on USB bus and FPGA, the factors affecting the performance of system are discussed, and describes how to use reconfigurable computing technology to improve the efficiency of data acquisition system while reduce energy consumption. The system in this paper uses AD's AD9220, ALTERA's EP1C6-8 and IDT's IDT70V24, Cypress’s CY7C68013.

• Periodical: Advanced Materials Research (Volumes 546-547)
• Pages: 1393-1397
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.546-547.1393
• Online since: July 2012
• Authors: Zhi Wen Xiong, Chen Guang Xu, Hong Zeng
• Keywords: Data Acquisition System, Energy Consumption (EC), Field-Programmable Gate Array (FPGA), Real Time System, Reconfigurable Computing

References

[1] Wigley, Kearney D. The first real operating system for reconfigurable computers, J. Computer Systems Architecture Conference, 2001, 29(6): 130-137.

DOI: 10.1109/acac.2001.903375

[2] Fernando Gehm Moraes and Daniel Mesquita. Development of a Tool-Set for Remote and Partial Reconfiguration of FPGA" C. Proeeedings of the Design, Automation and Test in Europe Conference and Exhibition (DATE, 03). (2003).

DOI: 10.1109/date.2003.1253763

[3] David Andrews. Programming Models for Hybrid FPGA-CPU Computational Components: A Misssing Link, J. Miero, IEEE Transactions, 2004, 24(4): 42-53.

DOI: 10.1109/mm.2004.36

[4] Prasanna. COMA: a cooperative management scheme for energy efficient implementation of real-time operating systems on FPGA based soft processors, J. Field-Programmable Custom Computing Machines, 2005. 13th Annual IEEE Symposium on 18-20 April 2005 Page(s): 139-148.

DOI: 10.1109/fccm.2005.26

[5] ZHOU Bo, WANG Shi Ji. An Operating System Framework for Reconfigurable Systems, J. Computer and Information Technology, 2005, 21(23): 781–787.

[6] Yang Qu, Juha Pekka. A Genetic Algorithm for Scheduling Tasks onto Dynamically Reconfigurable Hardware, J. Circuits and Systems, 2007, 27(23): 161-164.

DOI: 10.1109/iscas.2007.378246
