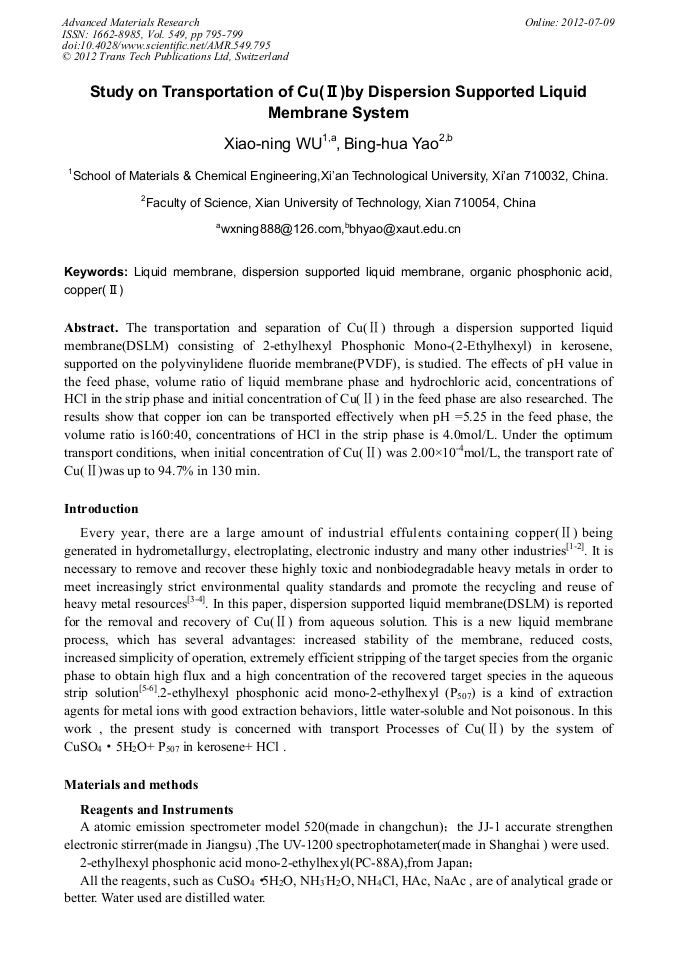

Study on Transportation of Cu(II) by Dispersion Supported Liquid Membrane System

Abstract:

The transportation and separation of Cu(Ⅱ) through a dispersion supported liquid membrane(DSLM) consisting of 2-ethylhexyl Phosphonic Mono-(2-Ethylhexyl) in kerosene, supported on the polyvinylidene fluoride membrane(PVDF), is studied. The effects of pH value in the feed phase, volume ratio of liquid membrane phase and hydrochloric acid, concentrations of HCl in the strip phase and initial concentration of Cu(Ⅱ) in the feed phase are also researched. The results show that copper ion can be transported effectively when pH =5.25 in the feed phase, the volume ratio is160:40, concentrations of HCl in the strip phase is 4.0mol/L. Under the optimum transport conditions, when initial concentration of Cu(Ⅱ) was 2.00×10^-4mol/L, the transport rate of Cu(Ⅱ)was up to 94.7% in 130 min.

• Periodical: Advanced Materials Research (Volume 549)
• Pages: 795-799
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.549.795
• Online since: July 2012
• Authors: Xiao Ning Wu, Bing Hua Yao
• Keywords: Copper(II), Dispersion Supported Liquid Membrane, Liquid Membrane, Organic Phosphonic Acid

References

[1] Zhongqi Ren, Weidong Zhang, Yiming Liu. New liquid membrane technology for simultaneous extraction and stripping of copper(II) from wastewater[J]. Chemical Engineering Science, 2007, 62: 6090-6101.

DOI: 10.1016/j.ces.2007.06.005

[2] Xiao-jiao Yu, Peng Li, Lian-feng Zhang. Transport of Cu (Ⅱ) through a supported liquid membrane using N503 as a mobile carrier[J]. Journal of Xi'an University of Technology，2008，24(3)320-323. (in Chinese).

[3] Qian Yang, Tai-shung Chung, Youchang Xiao. The development of chemically modified P84 Co-polyimide membranes as supported liquid membrane matrix for Cu(Ⅱ) removal with prolonged stability[J]. Chemical Engineering Science, 2007, 62: 1721-1729. (in Chinese).

DOI: 10.1016/j.ces.2006.12.022

[4] Raffaele Molinari, Teresa Poerio, Pietro Argurio. Selective removal of Cu2+ versus Ni2+, Zn2+and Mn2+ by using a new carrier in a supported liquid membrane[J]. Journal of Membrane Science, 2006, 280: 470-477.

DOI: 10.1016/j.memsci.2006.02.002

[5] Xiao-jian Luo, Jing-sheng He, Ming Ma etc. Study on transport and separation of Cu(Ⅱ) by N503-OT-Kerosene-HCl strip dispersion hybrid liquid membrane system[J]. Chinese journal of inorganic chemistry, 2005, 21(4): 588-592 (in Chinese).

[6] P.K. Parhi,K. Sarangi. Separation of copper, zinc, cobalt and nickel ions by supported liquid membrane technique using LIX 84I, TOPS-99 and Cyanex 272 e[J]. Separation Purification Technology, 2008, 59: 169-174.

DOI: 10.1016/j.seppur.2007.06.008

[7] Xiao-ning WU，Bing-hua YAO, Xinglong FU et al. Study on Transport of Co(Ⅱ) by Dispersion Supported Liquid Membrane System of PC-88A-Kerosene-HCl[J]. Journal of Xi'an University of Technology，2008，24（2）：187-191(in Chinese).
