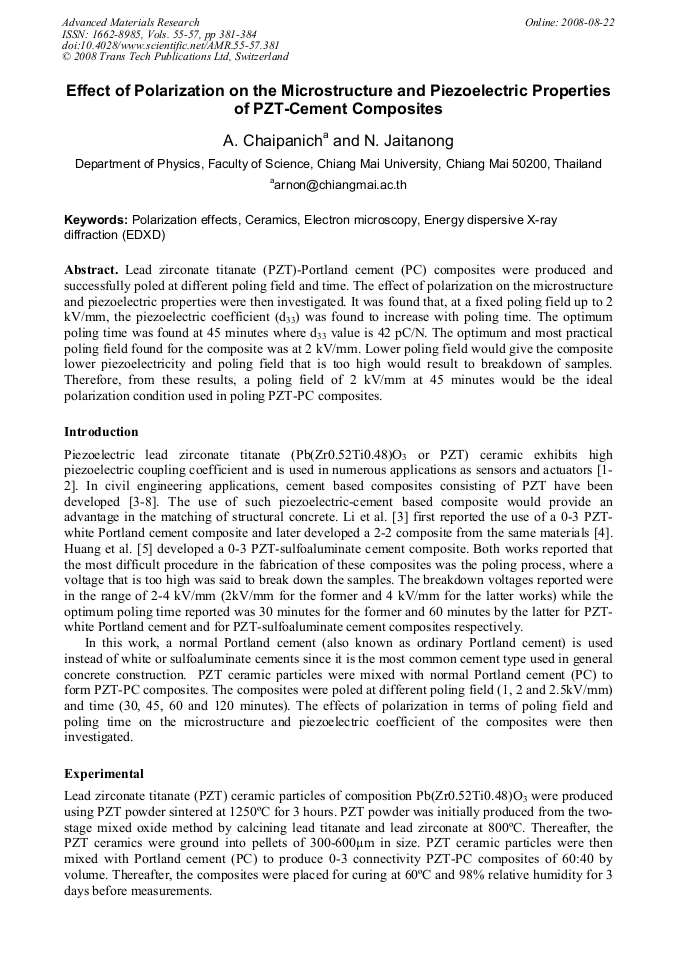

Effect of Polarization on the Microstructure and Piezoelectric Properties of PZT-Cement Composites

Abstract:

Lead zirconate titanate (PZT)-Portland cement (PC) composites were produced and successfully poled at different poling field and time. The effect of polarization on the microstructure and piezoelectric properties were then investigated. It was found that, at a fixed poling field up to 2 kV/mm, the piezoelectric coefficient (d33) was found to increase with poling time. The optimum poling time was found at 45 minutes where d33 value is 42 pC/N. The optimum and most practical poling field found for the composite was at 2 kV/mm. Lower poling field would give the composite lower piezoelectricity and poling field that is too high would result to breakdown of samples. Therefore, from these results, a poling field of 2 kV/mm at 45 minutes would be the ideal polarization condition used in poling PZT-PC composites.

• Periodical: Advanced Materials Research (Volumes 55-57)
• Pages: 381-384
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.55-57.381
• Online since: August 2008
• Authors: Arnon Chaipanich, Nittaya Jaitanong
• Keywords: Ceramic, Electron Microscopy, Energy Dispersive X-Ray Diffraction, Polarization Effects

References

This article has no references.
