PET/PP Blend with Bamboo Charcoal to Produce Functional Composites: Evaluation of Functionalities

Jia Horng Lin; Ching Wen Lou; Jin Mao Chen; Chien Teng Hsieh; Z.H. Liu

doi:10.4028/www.scientific.net/AMR.55-57.433

Paper Titles

Manufacturing and Stab-Resisting Properties of Compound Fabric Reinforced Using Recycled Nonwoven Selvages
p.417

Manufacturing Process and Practical Examination for a 3D Structural Geocell Made from Recycled PET Fibers
p.421

Manufacture and Performance Evaluation of Elastic/Bamboo Wrapped Yarn
p.425

Evaluation of Manufacturing Technology and Characterization of Composite Fabric for Stab Resistant Materials
p.429

PET/PP Blend with Bamboo Charcoal to Produce Functional Composites: Evaluation of Functionalities
p.433

The Effect of Processing Parameters on Properties of Bi₂GeO₅ Glass Ceramics
p.437

Photo-Induced Superhydrophilic TiO₂ Films Deposited by DC Reactive Magnetron Sputtering at Room Temperature
p.441

Temperature Dependence of Optical Constants of Silver Film Studied by In Situ Spectroscopic Ellipsometry
p.445

Investigation of Aluminium Diffusion into an Amorphous Silicon Thin Film at High Temperature by In Situ Spectroscopic Ellipsometry
p.449

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 55-57PET/PP Blend with Bamboo Charcoal to Produce...

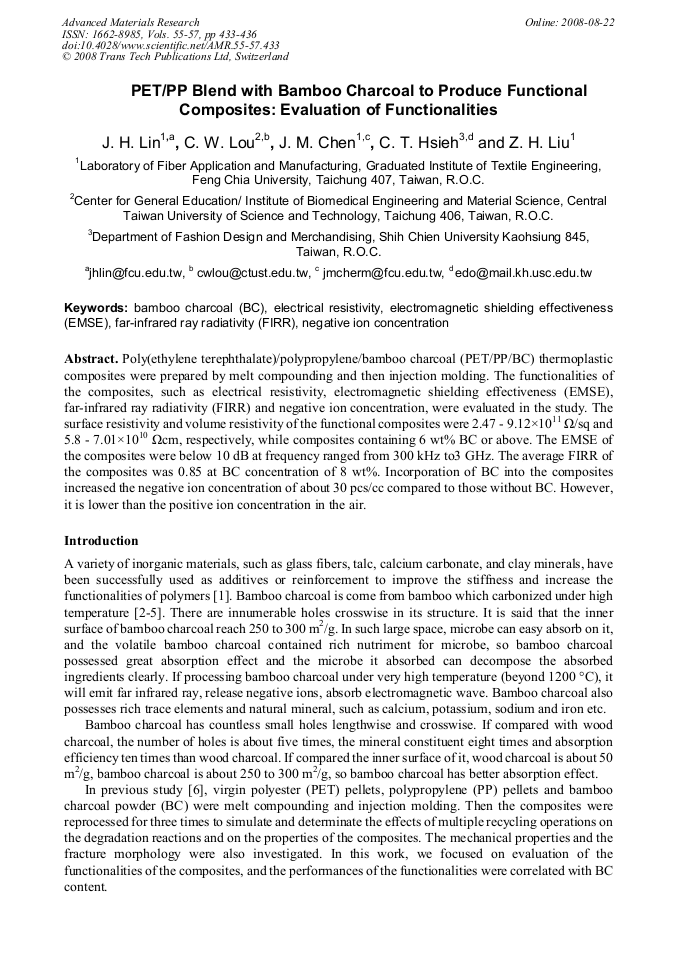

PET/PP Blend with Bamboo Charcoal to Produce Functional Composites: Evaluation of Functionalities

Abstract:

Poly(ethylene terephthalate)/polypropylene/bamboo charcoal (PET/PP/BC) thermoplastic composites were prepared by melt compounding and then injection molding. The functionalities of the composites, such as electrical resistivity, electromagnetic shielding effectiveness (EMSE), far-infrared ray radiativity (FIRR) and negative ion concentration, were evaluated in the study. The surface resistivity and volume resistivity of the functional composites were 2.47 - 9.12×1011 Ω/sq and 5.8 - 7.01×1010 Ωcm, respectively, while composites containing 6 wt% BC or above. The EMSE of the composites were below 10 dB at frequency ranged from 300 kHz to3 GHz. The average FIRR of the composites was 0.85 at BC concentration of 8 wt%. Incorporation of BC into the composites increased the negative ion concentration of about 30 pcs/cc compared to those without BC. However, it is lower than the positive ion concentration in the air.
