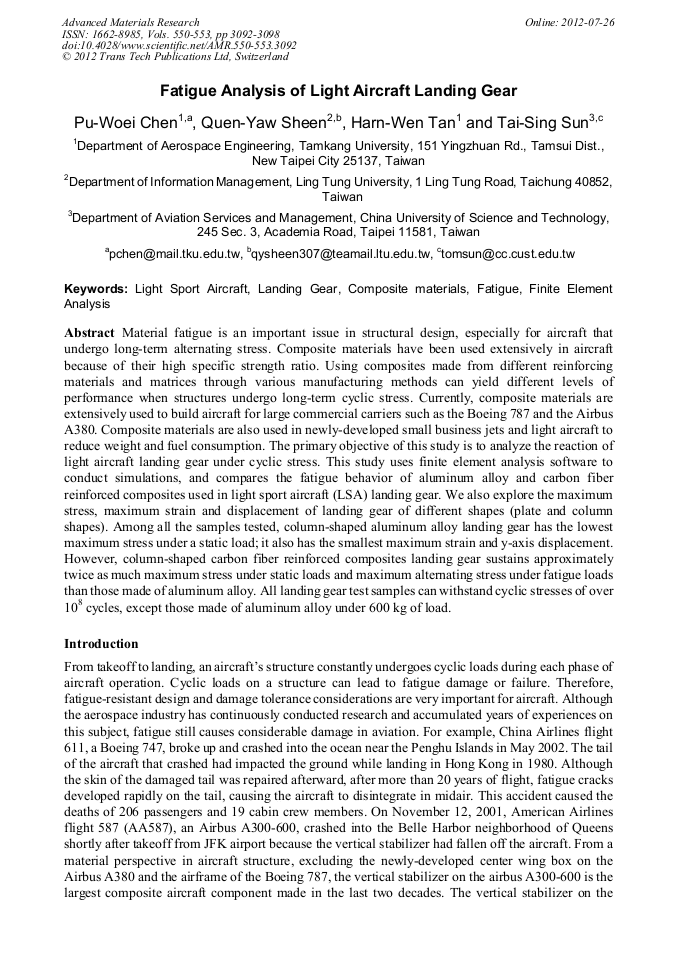

Fatigue Analysis of Light Aircraft Landing Gear

Abstract:

Material fatigue is an important issue in structural design, especially for aircraft that undergo long-term alternating stress. Composite materials have been used extensively in aircraft because of their high specific strength ratio. Using composites made from different reinforcing materials and matrices through various manufacturing methods can yield different levels of performance when structures undergo long-term cyclic stress. Currently, composite materials are extensively used to build aircraft for large commercial carriers such as the Boeing 787 and the Airbus A380. Composite materials are also used in newly-developed small business jets and light aircraft to reduce weight and fuel consumption. The primary objective of this study is to analyze the reaction of light aircraft landing gear under cyclic stress. This study uses finite element analysis software to conduct simulations, and compares the fatigue behavior of aluminum alloy and carbon fiber reinforced composites used in light sport aircraft (LSA) landing gear. We also explore the maximum stress, maximum strain and displacement of landing gear of different shapes (plate and column shapes). Among all the samples tested, column-shaped aluminum alloy landing gear has the lowest maximum stress under a static load; it also has the smallest maximum strain and y-axis displacement. However, column-shaped carbon fiber reinforced composites landing gear sustains approximately twice as much maximum stress under static loads and maximum alternating stress under fatigue loads than those made of aluminum alloy. All landing gear test samples can withstand cyclic stresses of over 108 cycles, except those made of aluminum alloy under 600 kg of load.

• Periodical: Advanced Materials Research (Volumes 550-553)
• Pages: 3092-3098
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.550-553.3092
• Online since: July 2012
• Authors: Pu Woei Chen, Quen Yaw Sheen, Harn Wen Tan, Tai Sing Sun
• Keywords: Composite Material, Fatigue, Finite Element Analysis (FEA), Landing Gear, Light Sport Aircraft

References

[1] "Failure Analysis of Composites Structures in Aircraft Accidents", Joseph F. Rakow and Alfred M. Pettinger, ISASI 2006 Annual Air Safety Seminar, Cancun Mexico (2006)

[2] Matthew R. Fox, "Composite Materials and Wreckage Examination", NTSB Board Meeting, AA Flight 587, National Transportation Safety Board (2004)

[3] "Aging Airplane Program: Widespread Fatigue Damage", Docket No. FAA-2006-24281, FAA, Federal Register vol. 75, No. 219 (2010)

[4] Sara Black, "Flying High on Composite Wings", Composites (2008)

[5] "Damage-Tolerance and Fatigue Evaluation of Structure", FAR Part 25.571 (2011)

[6] "Fatigue, Fail-Safe, and Damage Tolerance Evaluation of Metallic Structure for Normal, Utility, Acrobatic, and Commuter Category Airplanes", FAA AC 23-13A (2005)

[7] "2010 General Aviation Statistical Databook & Industry Outlook", General Aviation Manufacturers Association.

[8] "Certification Specifications for Light Sport Aeroplanes CS-LSA", Annex to ED Decision 2011/005/R, European Aviation Safety Agency (2011)

[9] "Assessment of Research Needs for Wind Turbine Rotor Materials Technology", National Research Council, National Academy of Sciences (1991)

DOI: 10.2172/6846101

[10] DOE/MSU Composite Material Fatigue Database, version 19.0 (2010)

[11] H.G.S.J. Thuis, "The Development of Composite Landing Gear Components for Aerospace Applications", National Aerospace Laboratory, NLR-TP-2004-141 (2004)

[12] Kshitij Shrotri, "Compsoite Skid Landing Gear Design Investigation", School of Aerospace Engineering Georgia Institute of Technology (2008)

[13] I.E. Koetsier, "Design Considerations of a Composite Spring Leaf Main Landing Gear", Delf University of Technology (2001)

[14] Amit Goyal, "Light Aircraft Main Landing Gear Design and Development", M. S. Ramaiah, School of Advanced Studies, INDIA (2002)

[15] Pu-Woei Chen, Chan-Ming Chen, Quen-Yaw Sheen, Tai-Sing Sun, "Static and Dynamic Loading Analysis of Light-Sport Aircraft Landing Gear", ICPNS 2010, The Sixth International Conference on Physical and Numerical Simulation of Materials Processing, Guilin, China (2010)

[16] ASTM E466-07, "Standard Practice for Conducting Force Controlled Constant Amplitude Axial Fatigue Tests of Metallic Materials".

DOI: 10.1520/e0466-96r02e01

[17] ASTM D3039M-95a, "Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials".

[18] G.T. Yahr,"Fatigue Design Curves for 6061-T6 Aluminum" , Engineering Technology Division, Oak Ridge National Laboratory, Oak Ridge, Tennessee 37831-8051.

DOI: 10.47886/9781934874028.ch15
