Microstructure of the Dissimilar Materials TIG Welding Joint of Mg-8Li Alloy/Al Alloy

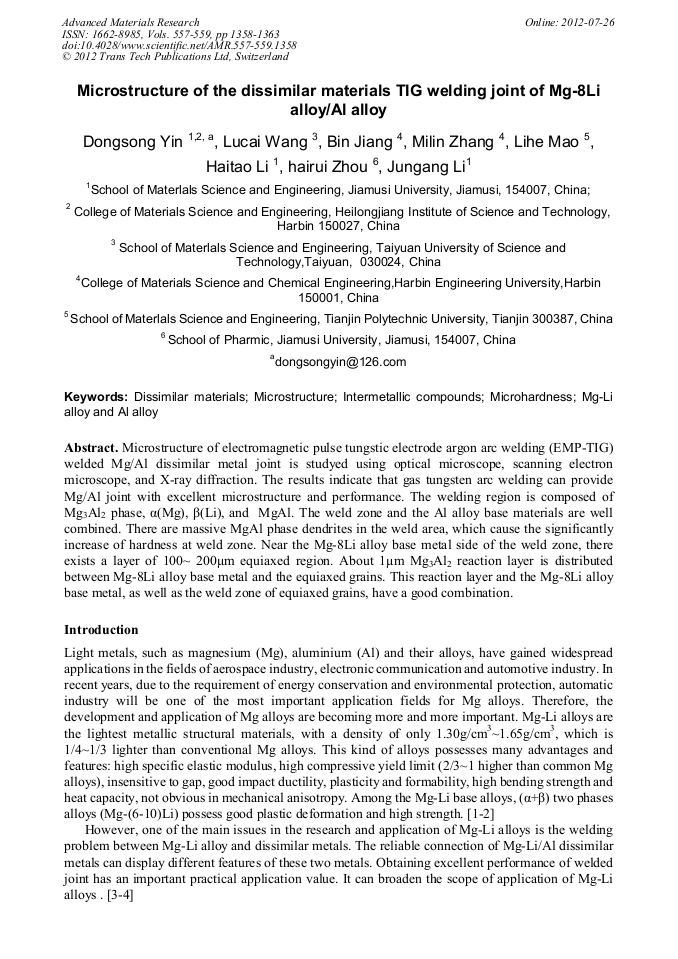

Abstract:

Microstructure of electromagnetic pulse tungstic electrode argon arc welding (EMP-TIG) welded Mg/Al dissimilar metal joint is studyed using optical microscope, scanning electron microscope, and X-ray diffraction. The results indicate that gas tungsten arc welding can provide Mg/Al joint with excellent microstructure and performance. The welding region is composed of Mg₃Al₂ phase, α(Mg), β(Li), and MgAl. The weld zone and the Al alloy base materials are well combined. There are massive MgAl phase dendrites in the weld area, which cause the significantly increase of hardness at weld zone. Near the Mg-8Li alloy base metal side of the weld zone, there exists a layer of 100~ 200μm equiaxed region. About 1μm Mg₃Al₂ reaction layer is distributed between Mg-8Li alloy base metal and the equiaxed grains. This reaction layer and the Mg-8Li alloy base metal, as well as the weld zone of equiaxed grains, have a good combination.

• Periodical: Advanced Materials Research (Volumes 557-559)
• Pages: 1358-1363
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.557-559.1358
• Online since: July 2012
• Authors: Dong Song Yin, Lu Cai Wang, Bin Jiang, Mi Lin Zhang, Li He Mao, Hai Tao Li, Hai Rui Zhou, Jun Gang Li
• Keywords: Dissimilar Materials, Intermetallic Compound (IMC), Mg-Li Alloy and Al Alloy, Microhardness, Microstructure

References

[1] W.A. Counts, M. Fria k, D. Raabe, J. Neugebauer. Acta Mater., Vol. 57 (2009), pp.69-76.

[2] X.H. Liu, S.H. Gu, H.B. Zhan, R.Z. Wu, M.L. Zhang. Superplasticity in a two-phase Mg-8Li-2Zn alloy processed by two-pass extrusion. Mater. Sci. Eng. A, Vol 528 (2011), p.6157–6162.

DOI: 10.1016/j.msea.2011.04.073

[3] B. Jiang, C.H. Zhang, T. Wang, Z.K. Qu, R.Z. Wu, M.L. Zhang. Creep behaviors of Mg-5Li-3Al-(0,1)Ca alloys. Mater. Des., Vol 34 (2012), pp.863-866.

DOI: 10.1016/j.matdes.2011.08.023

[4] J.Q. Li, Z.K. Qu, R.Z. Wu, M.L. Zhang. Microstructure, mechanical properties and aging behaviors of as-extruded Mg-5Li-3Al-2Zn-1.5Cu alloy. Mater. Sci. Eng. A, 528 (2011): 3915–3920.

DOI: 10.1016/j.msea.2011.01.025

[5] P. Liu, Y. J. Li , H. R. Gengn, J. Wang.Vacuum. Vol. 80(2006), pp.395-399

[6] Y. S. Sato, S. C. Park, M. Michiuchi, H. Kokawa. Scripta Mater., Vol. 50 (2004) , pp.1233-1236.

[7] J. C. Yan, Z. W. Xu , Z. Y. Li, L. Li, S.Q. Yang. Scripta Mater., Vol.53 (2005) , pp.585-589

[8] L. M. Liu, X.J Liu S.H. Liu. Scripta Mater., Vol.55 (2006), pp.383-386.

[9] L.M. Liu, H.Y. Wang Z. D. Zhang. Scripta Mater., Vol.56 (2007), p.473–476.
