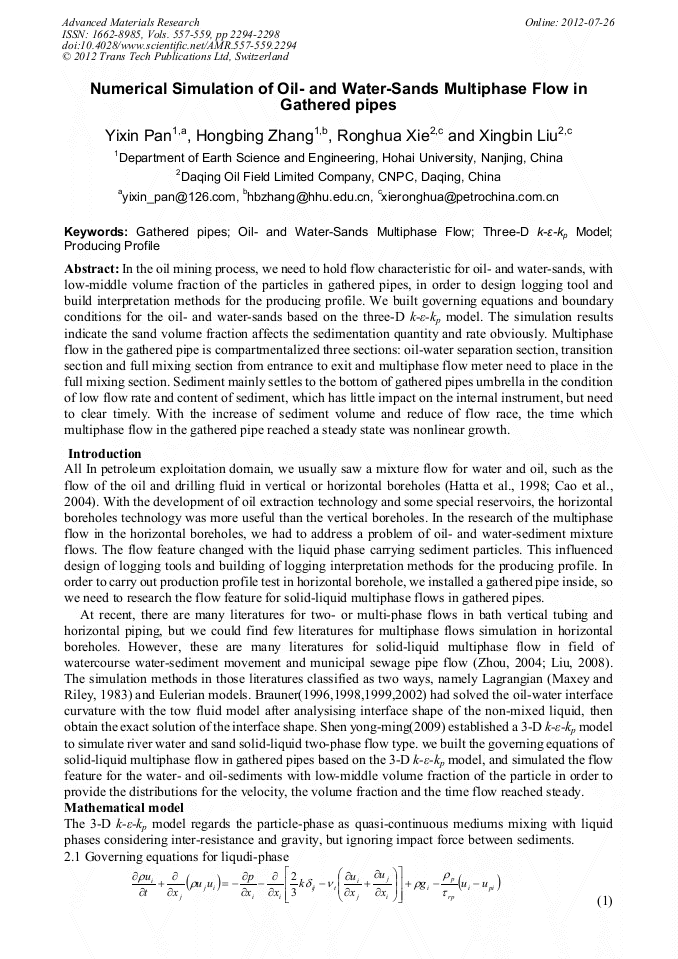

Numerical Simulation of Oil- and Water-Sands Multiphase Flow in Gathered Pipes

Abstract:

In the oil mining process, we need to hold flow characteristic for oil- and water-sands, with low-middle volume fraction of the particles in gathered pipes, in order to design logging tool and build interpretation methods for the producing profile. We built governing equations and boundary conditions for the oil- and water-sands based on the three-D k-ε-kp model. The simulation results indicate the sand volume fraction affects the sedimentation quantity and rate obviously. Multiphase flow in the gathered pipe is compartmentalized three sections: oil-water separation section, transition section and full mixing section from entrance to exit and multiphase flow meter need to place in the full mixing section. Sediment mainly settles to the bottom of gathered pipes umbrella in the condition of low flow rate and content of sediment, which has little impact on the internal instrument, but need to clear timely. With the increase of sediment volume and reduce of flow race, the time which multiphase flow in the gathered pipe reached a steady state was nonlinear growth.

• Periodical: Advanced Materials Research (Volumes 557-559)
• Pages: 2294-2298
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.557-559.2294
• Online since: July 2012
• Authors: Yi Xin Pan*, Hong Bing Zhang, Rong Hua Xie, Xing Bin Liu
• Keywords: Gathered Pipes, Oil- and Water-Sands Multiphase Flow, Producing Profile, Three-D K-ε-Kp Model

References

[1] Q. Cao, K. Sarkar, and A.K. Prasad, Direct numerical simulations of two-layer viscosity-stratified flow. Int. J. multiphase flow, vol. 30(2004), pp.1485-1508.

DOI: 10.1016/j.ijmultiphaseflow.2004.07.005

[2] N. Hatta, H. Fujimoto, M. Isobe, and J. Kang, Theoretical analysis of flow characteristics of multiphase mixtures in a vertical pipe. Int. J. multiphase flow, vol. 24, 1998, pp.539-561.

DOI: 10.1016/s0301-9322(97)00074-8

[3] Arirachakaran S., Oglesby K.D., Malinowsky M.S. An Analysis of Oil/Water Flow Phenomena in Horizontal Pipes. SPE18836, (1989).

DOI: 10.2118/18836-ms

[4] Brauner N. Modelling and Control of Two-Phase Phenomena: Liquid-Liquid Two-Phase Flow　Systems. Information on http://www.eng.tau.ac.il/-brauner/brauner.pdf (2002).

DOI: 10.1615/ichmt.1997.intsymliqtwophaseflowtranspphen.40

[5] Brauner N., Moalem Maron, Rovinsky J. A Two-Fluid Model for Stratified Flows With Curved Interfaces. International Journal of Multiphase Flow. Vol. 24(1998), pp.975-1004

DOI: 10.1016/s0301-9322(98)00005-6

[6] Dimitri Gorelik, Brauner N. The Interface Configuration in Two-Phase Stratified Pipe Flow. International Journal of Multiphase Flow. Vol. 25(1999), pp.977-1007

DOI: 10.1016/s0301-9322(99)00038-5

[7] Ng T.S., Lawrence C.J., Hewitt G.F. Laminar Stratified Pipe Flow. International Journal of Multiphase Flow. Vol. 28(2002), pp.963-996

DOI: 10.1016/s0301-9322(02)00004-6

[8] SHEN YongMing, LIU Cheng. A three-dimensional k-ε-kp Model in curvilinear coordinates for sediment movement and bed evolution. Vol. 52, No. 4(2009), pp.1090-1100

DOI: 10.1007/s11431-008-0234-2

[9] X.M. Zhou, The turbulent model and its application to the Sediment-laden two-phase flow. Ph.D. thesis, SiChuan University, Chengdu, China, 2004 (in Chinese).
