Effect of Dopants on the Microwave Magnetic Characteristics of FeCoBM-Al₂O₃ Soft Magnetic Thin Films

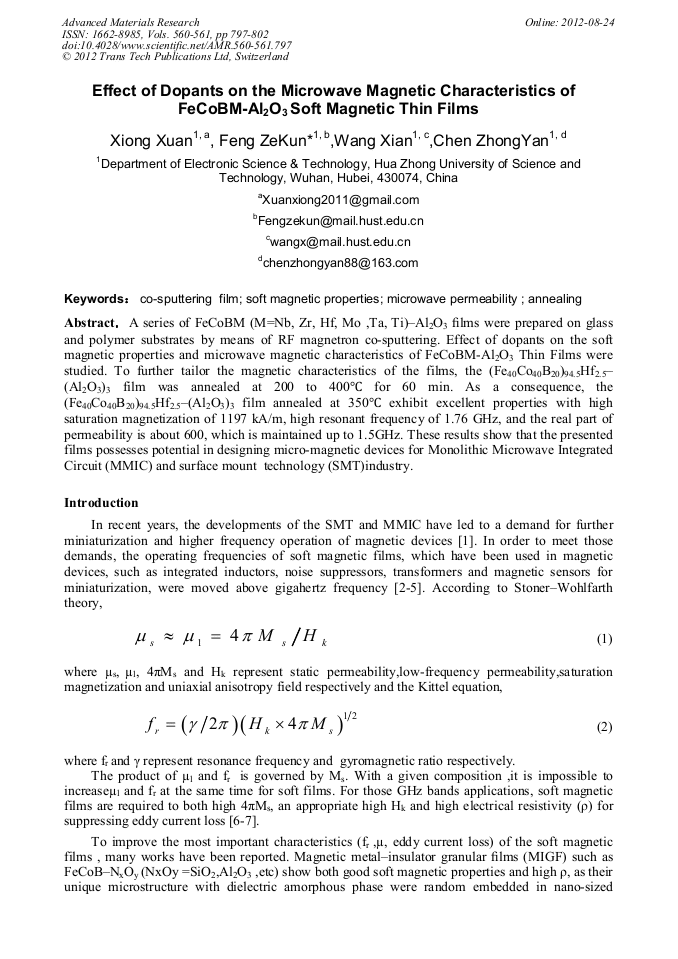

Article Preview

Abstract:

A series of FeCoBM (M=Nb, Zr, Hf, Mo ,Ta, Ti)–Al2O3 ﬁlms were prepared on glass and polymer substrates by means of RF magnetron co-sputtering. Effect of dopants on the soft magnetic properties and microwave magnetic characteristics of FeCoBM-Al2O3 Thin Films were studied. To further tailor the magnetic characteristics of the films, the (Fe40Co40B20)94.5Hf2.5–(Al2O3)3 film was annealed at 200 to 400°C for 60 min. As a consequence, the (Fe40Co40B20)94.5Hf2.5–(Al2O3)3 film annealed at 350°C exhibit excellent properties with high saturation magnetization of 1197 kA/m, high resonant frequency of 1.76 GHz, and the real part of permeability is about 600, which is maintained up to 1.5GHz. These results show that the presented films possesses potential in designing micro-magnetic devices for Monolithic Microwave Integrated Circuit (MMIC) and surface mount technology (SMT)industry.

You might also be interested in these eBooks

Material Sciences and Technology

Info:

Periodical:

Advanced Materials Research (Volumes 560-561)

Pages:

797-802

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.560-561.797

Citation:

Cite this paper

Online since:

August 2012

Authors:

Xuan Xiong, Ze Kun Feng, Xian Wang, Zhong Yan Chen

Keywords:

Annealing, Co-Sputtering Film, Microwave Permeability, Soft Magnetic Properties

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] S. Ohnuma, N. Kobayashi, T. Masumoto, S. Mitani and H. Fujimori. Magnetostriction and soft magnetic properties of (CoFe)–Al–O granular films with high electrical resistivity. Journal of applied physics, (1999), 85: 4574.

DOI: 10.1063/1.370412

[2] M. Yamaguchi, K. Hyeon Kim, S. Ikedaa. Soft magnetic materials application in the RF range. Journal of magnetism and magnetic materials, (2006), 304(2): 208-213.

DOI: 10.1016/j.jmmm.2006.02.143

[3] V. Bekker, K.Seemann, H. Leiste, C. Ziebert. New CMOS compatible soft ferromagnetic materials with in-plane uniaxial anisotropy for hf micro-inductor applications. Journal of magnetism and magnetic materials, (2005), 290: 1434-1437.

DOI: 10.1016/j.jmmm.2004.11.541

[4] V. Korenivski. GHz magnetic film inductors. Journal of magnetism and magnetic materials, (2000), 215: 800-806.

DOI: 10.1016/s0304-8853(00)00292-4

[5] M. Xu, T. M. Liakopoulos, C. H. Ahn. A microfabricated transformer for high-frequency power or signal conversion. IEEE Transactions on Magnetics, (1998), 34(4): 1369-1371.

DOI: 10.1109/20.706551

[6] J. S. Liao, Z. K. Feng, J. Qiu, Y.Q. Tong. High‐frequency permeability of sputtered Fe–Co–B‐based soft magnetic thin films. physica status solidi (a), (2008), 205(12): 2943-2947.

DOI: 10.1002/pssa.200824316

[7] S. X. Wang, N. X. Sun, M. Yamaguchi, S. Yabukami. Sandwich films: Properties of a new soft magnetic material. Nature, (2000), 407(6801): 150-151.

DOI: 10.1038/35025142

[8] M. Munakata, M.Yagi, M.Motoyama, Y.Shimada, M.Baba, M.Yamaguchi, K.I. Arai. Thickness effect on 1 GHz permeability of (CoFeB)-(SiO2) films with high electrical resistivity. IEEE Transactions on Magnetics, (2001), 37(4): 2258-2260.

DOI: 10.1109/20.951141

[9] J. Qiu, R. Z. Gong, Z. K. Feng, J.S. Liao. High frequency microwave characteristics of amorphous FeCoNiB-SiO2 thin films. Journal of Alloys and Compounds, (2010), 496(1-2): 467-471.

DOI: 10.1016/j.jallcom.2010.02.081

[10] S. Wang, X. D. Zhang, J. G. Li, Q. Tian, X.L. Kou. Effect of B content on structure and magnetic properties of FeCoB-Al2O3 nanogranular films. Applied Physics A: Materials Science & Processing, (2011), 104(1):1-9.

DOI: 10.1007/s00339-010-6178-y

[11] S. Wang, X. D. Zhang, J. G. Li, J.Ma, J.J. Huang. Enhanced magnetic softness and high-frequency characteristics of Fe51.1Co48.9B-Al2O3 nanogranular films. Scripta Materialia, (2011), 65(1):45–48

DOI: 10.1016/j.scriptamat.2011.03.010

[12] B. M. Zhang , G. W. Wang , F. Zhang , Y.H. Xiao, S.H.Ge. High-frequency FeCoNiNbB–SiO2 nano-granular ﬁlms with high resistivity and adjustable resonance frequency from 1.3 to 7.8 GHz. Applied Physics A: Materials Science & Processing, (2009) 97: 657–661.

DOI: 10.1007/s00339-009-5278-z

[13] X. L. Fan, D. S. Xue, M. Lin, Z.M. Zhang, D.W. Guo, C.J. Jiang, J.Q Wei. In situ fabrication of Co90Nb10 soft magnetic thin ﬁlms with adjustable resonance frequency from 1.3 to 4.9 GHz. Journal of applied physics, (2008), 92: 222505.

DOI: 10.1063/1.2939439

[14] S. D. Li, Z. R. Yuan, J.G. Duh. High-frequency ferromagnetic properties of as-deposited FeCoZr ﬁlms with uniaxial magnetic anisotropy. Journal of physics D: applied physics, (2008), 41:055004.

DOI: 10.1088/0022-3727/41/5/055004

[15] C.J. Jiang , D.S. Xue , D. W. Guo, X.L. Fan. Adjustable resonance frequency and linewidth by Zr doping in Co thin ﬁlms. Journal of applied physics, (2009), 106:103910.

DOI: 10.1063/1.3260238

[16] X. F. Bi, J. P. Cui. Temperature dependence of structural and transport propertyof Cu-free FeCoZrB magnetic films. Thin Solid Films, (2008), 516:2321– 2324.

DOI: 10.1016/j.tsf.2007.08.126

[17] S. D. Li, M. Liu, F. Xu, J. Lou, Z.J. Tian, J.P. Wu, Y.Hu, X.L. Cai, J.G. Duh, N. X. Sun. Soft magnetism and microwave magnetic properties of Fe-Co-Hf films deposited by composition gradient sputtering. Journal of applied physics, (2011), 109:07A315.

DOI: 10.1063/1.3549584

[18] S. W. Huang, Y. T. Lai, J.G. Duh. Effects of the Hf content on the microstructure and magnetic properties of Co–Hf–Ta thin ﬁlms. Applied Surface Science, (2011), 257:2042-2045.

DOI: 10.1016/j.apsusc.2010.09.049

[19] C. C. Hsieh, T. H. Lin1, H. W. Chang, C. W. Chang, W. C. Chang, and C. C. Yang. Effect of Dopants on the Soft Magnetic Properties and High Frequency Characteristics of FeCoBM (M = Ti, Nb, Hf, and Ta) Thin Films. Journal of Nanoscience and Nanotechnology, (2011),11: 2752–2755.

DOI: 10.1166/jnn.2011.2726

[20] P. K. Amiri, B. Rejaei, Y. Zhuang, M.Vroubel, D.W. Lee, S.X. Wang, and J. N. Burghartz. Integrated Microstrip Lines With Co–Ta–Zr Magnetic Films. IEEE Transactions on Magnetics, (2008), 40(11): 3103-3106.

DOI: 10.1109/tmag.2008.2002432

[21] X. D. Zhang, S. Wang, J. Zhou, J.G. Li, D.M. Jiao, X.L. Kou. Soft magnetic properties, high frequency characteristics, and thermal stability of co-sputtered FeCoTiN ﬁlms. Journal of Alloys and Compounds, (2009), 474: 273-278.

DOI: 10.1016/j.jallcom.2008.06.080

[22] S. I. Tanasea, D. P. Tanasea, M. Dobromira, V.Georgescu. Morphology, magnetic, magnetoresistance and optical properties of Co–Ni–Mo alloys thin ﬁlms. Applied Surface Science, (2011), 257: 10903-10909.

DOI: 10.1016/j.apsusc.2011.07.139

[23] G. W. Qin, B. Yang, N. Xiao, Y.P. Ren, M. Jiang, X. Zhao, K. Oikawa. Origin on amorphization of Co–Mo magnetic thin ﬁlms: Experiments and thermodynamic calculation. Thin Solid Films, (2009), 517: 2984-2987.

DOI: 10.1016/j.tsf.2009.01.003
