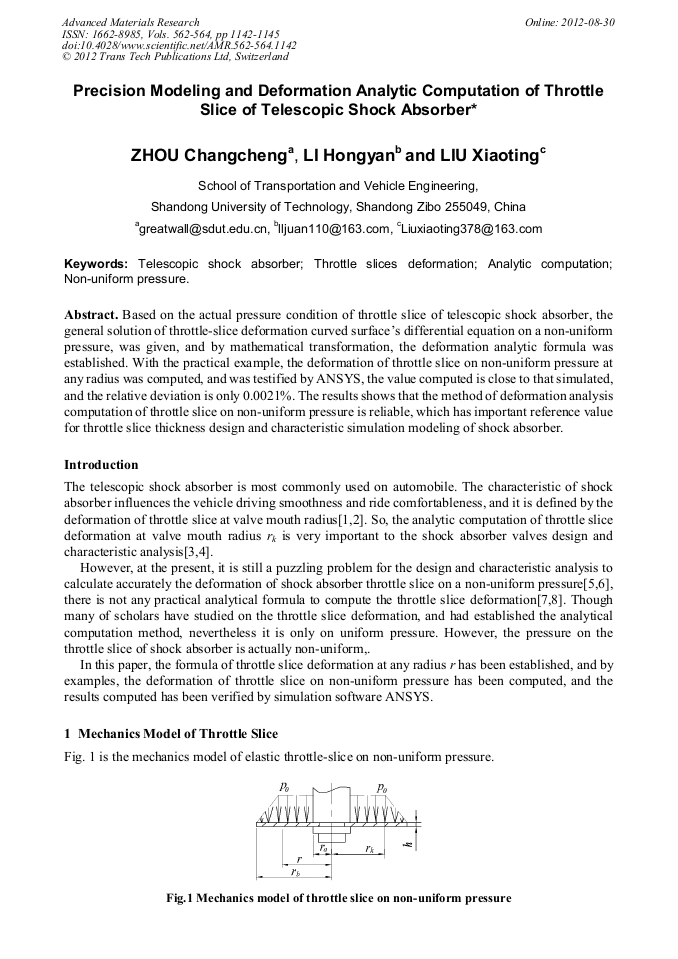

Precision Modeling and Deformation Analytic Computation of Throttle Slice of Telescopic Shock Absorber

Abstract:

Based on the actual pressure condition of throttle slice of telescopic shock absorber, the general solution of throttle-slice deformation curved surface’s differential equation on a non-uniform pressure, was given, and by mathematical transformation, the deformation analytic formula was established. With the practical example, the deformation of throttle slice on non-uniform pressure at any radius was computed, and was testified by ANSYS, the value computed is close to that simulated, and the relative deviation is only 0.0021%. The results shows that the method of deformation analysis computation of throttle slice on non-uniform pressure is reliable, which has important reference value for throttle slice thickness design and characteristic simulation modeling of shock absorber.
