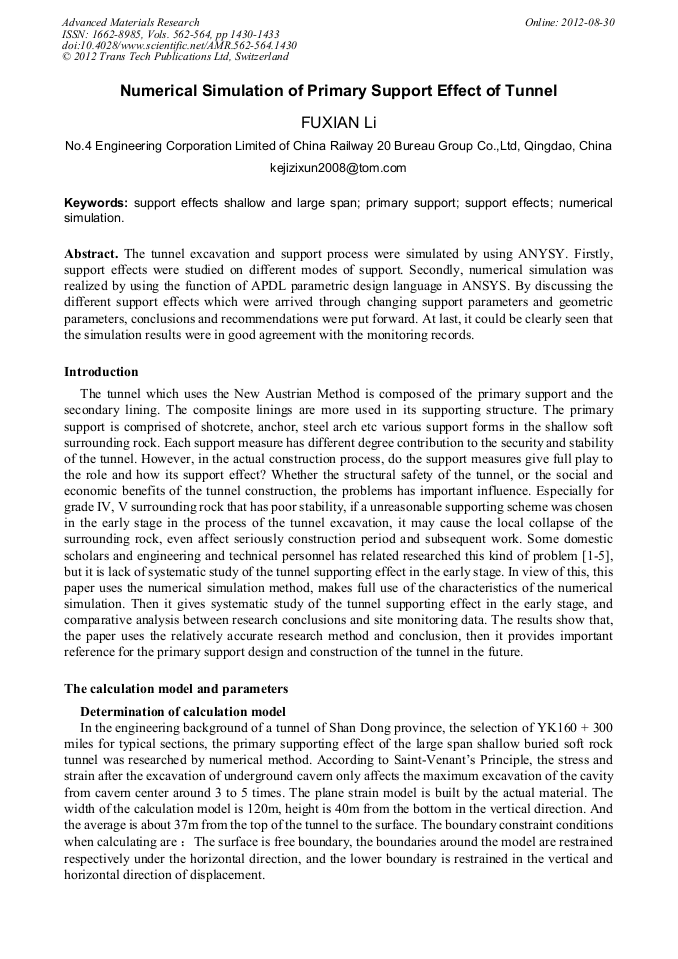

Numerical Simulation of Primary Support Effect of Tunnel

Abstract:

The tunnel excavation and support process were simulated by using ANYSY. Firstly, support effects were studied on different modes of support. Secondly, numerical simulation was realized by using the function of APDL parametric design language in ANSYS. By discussing the different support effects which were arrived through changing support parameters and geometric parameters, conclusions and recommendations were put forward. At last, it could be clearly seen that the simulation results were in good agreement with the monitoring records.

• Periodical: Advanced Materials Research (Volumes 562-564)
• Pages: 1430-1433
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.562-564.1430
• Online since: August 2012
• Authors: Fu Xian Li
• Keywords: Numerical Simulation, Primary Support, Support Effects, Support Effects Shallow and Large Span

References

[1] Haijun Li, Mingnian Wang, Haidong Zhao, et al, Influence of Primary Support Deterioration on the Security of Secondary Lining for a Large Cross-section Subsea Tunnel, Modern Tunnelling Technology, Vol 46, pp.7-10, August 2009 (In Chinese).

[2] Xiaohong Li, Dengxin Li, Xiaoguang Jin, et al, Discussion on influence of initial support to stability and deformation of surrounding rock mass in soft rock tunnel, , Rock and Soil Mechanics, vol6, p.1207–1210, August 2005(In Chinese).

[3] Yongquan Zhu, Suming Zhang, Shiting Jing, Concept and Determination of Limit Displacements of Primary Support System of Railway Tunnel, , Chinese Journal ofRockMechanics and Engineering, vol24, p.1594–1598, May 2005(In Chinese).

[4] Hongwei Huang, Ling Xu, Study on Deformation and Internal Force of Surrounding Rock and Initial Support in Dafengyakou Rock Road Tunnel, , Chinese Journal ofRockMechanics and Engineering, vol23, p.44–52, January 2004(In Chinese).

[5] Jian Zhang, Treatment Technique of Primary Support Settlement in Soft Region of Huangguoshu Tunnel, , Highway, p.217–220, November 2007(In Chinese).

[6] Yusheng Shen, Reserch on the Key Technology for Design and Construction of the Double-arch Tunnel in the Soft Surrounding Rock, , Southwest Jiaotong University, October 2005(In Chinese).
