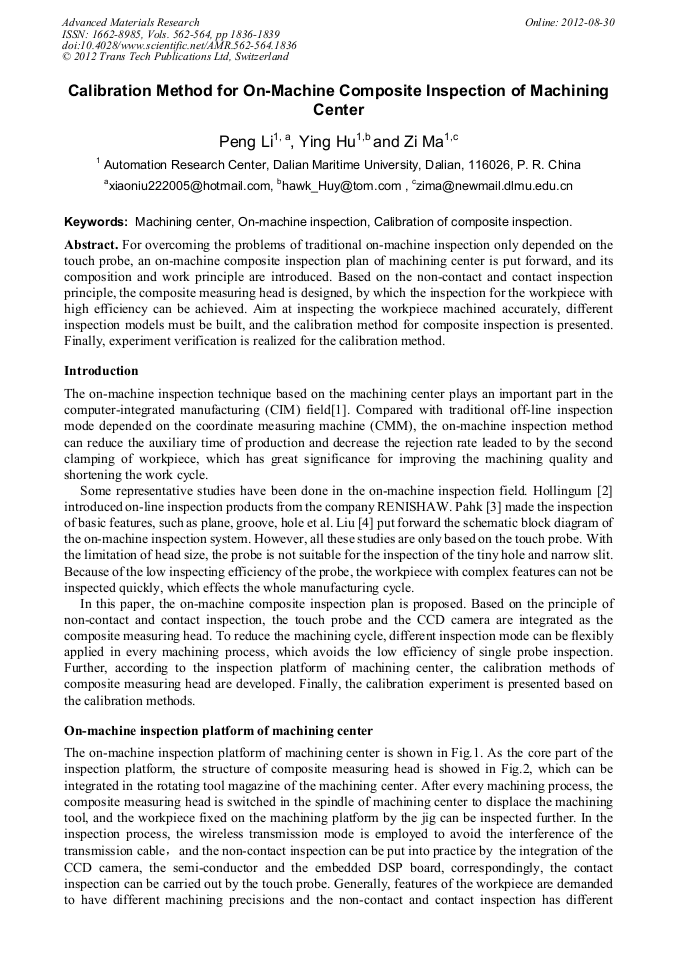

Calibration Method for On-Machine Composite Inspection of Machining Center

Abstract:

For overcoming the problems of traditional on-machine inspection only depended on the touch probe, an on-machine composite inspection plan of machining center is put forward, and its composition and work principle are introduced. Based on the non-contact and contact inspection principle, the composite measuring head is designed, by which the inspection for the workpiece with high efficiency can be achieved. Aim at inspecting the workpiece machined accurately, different inspection models must be built, and the calibration method for composite inspection is presented. Finally, experiment verification is realized for the calibration method.

• Periodical: Advanced Materials Research (Volumes 562-564)
• Pages: 1836-1839
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.562-564.1836
• Online since: August 2012
• Authors: Peng Li, Ying Hu, Zi Ma
• Keywords: Calibration of Composite Inspection, Machining Center, On-Machine Inspection

References

[1] R.X. Wang: Introduction of advanced manufacturing technology (Science Press, Beijing China 2004).

[2] J. Hollingum: ASME Journal of Engineering for Industry. Vol. 17(1997), pp.223-230.

[3] H. J. Pahk, M. Y. Jung, S. W. Hwang, et al: International Journal of Advanced Manufacturing Technology. Vol. 10(1995), pp.198-207.

[4] L.B. LIU, H.Q. Sang, Y. S Chen, et al: New Technology & New Process. Vol. 11(2005), pp.16-18. In Chinese.

[5] R.K. Lenz, R.Y. Tsai: IEEE Transactions on Pattern Analysis and Machine Intelligence. Vol. 10(1988), pp.713-720.

[6] R.Y. Tsai: IEEE Journal of Automation. Vol. 3(1987), pp.323-334.

[7] T. JIN, S.G. Tong: Reverse Engineering (China Machine Press, Beijing China 2003).
