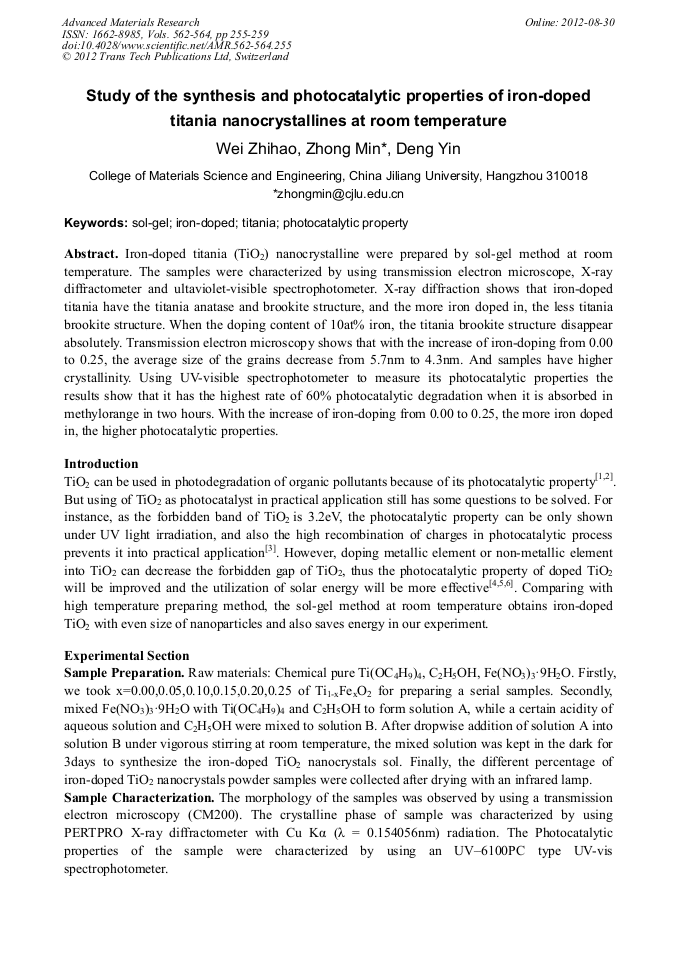

Study of the Synthesis and Photocatalytic Properties of Iron-Doped Titania Nanocrystallines at Room Temperature

Abstract:

Iron-doped titania (TiO2) nanocrystalline were prepared by sol-gel method at room temperature. The samples were characterized by using transmission electron microscope, X-ray diffractometer and ultaviolet-visible spectrophotometer. X-ray diffraction shows that iron-doped titania have the titania anatase and brookite structure, and the more iron doped in, the less titania brookite structure. When the doping content of 10at% iron, the titania brookite structure disappear absolutely. Transmission electron microscopy shows that with the increase of iron-doping from 0.00 to 0.25, the average size of the grains decrease from 5.7nm to 4.3nm. And samples have higher crystallinity. Using UV-visible spectrophotometer to measure its photocatalytic properties the results show that it has the highest rate of 60% photocatalytic degradation when it is absorbed in methylorange in two hours. With the increase of iron-doping from 0.00 to 0.25, the more iron doped in, the higher photocatalytic properties.

• Periodical: Advanced Materials Research (Volumes 562-564)
• Pages: 255-259
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.562-564.255
• Online since: August 2012
• Authors: Zhi Hao Wei, Min Zhong, Yin Deng
• Keywords: Iron-Doped, Photocatalytic Properties, Sol-Gel (SG), Titania

References

[1] Zuo Guofang. Study on the system of solar-TiO2 for photocatalytic degradation of organic contaminants in water bodies[J] . JOURNAL OF TIANSHUI NORMAL UNIVERSITY, 2001, 2(2): 42-45.

[2] Xu Tianyi. Preparation of supported mixed-crystal titanium dioxide photocatalyst at low temperature and its photocatalytic activity[J]. CHINESE JOURNAL OF ENVIRONMENTAL ENGINEERING, 2009, 3 (10): 1897-(1901).

[3] CHEN Gui-hua. Preparation and Photocatalytic Activity of Vanadium-doped Nano-TiO2 [J]. JOURNAL OF SYNTHETIC CRYSTALS, 2010, 39(5): 1243-1248.

[4] Zeng Yan. The characteristics and photocatalytic activity of metal-doped TiO2[J]. JIANG XI SCIENCE, 2010, 28(4): 436-440.

[5] Zhang Liyuan. Preparation and photocatalytic property of Ag-doped TiO2[J]. JOURNAL OF FUCTIONAL MATERIALS, 2010, 12(41): 2169-2173.

[6] Zhang Liyuan. Research development of doped TiO2[J]. CHEMICAL ENGINEER, 2010, 5: 46-49.

[7] Yue Linhai, Shui Miao, Xu Zhude. The phase transition and photocatalytic activity of rare earth-doped TiO2[J]. Journal of Zhejiang University SCIENCE, 2000, 27 (1): 69–74.

[8] Chen Juntao, Li Xinjun, Yang Ying. The effect on the photocatalytic property of TiO2 film by doping rare earth[J]. Journal of Rare Earths , 2003, 21: 67–71.
