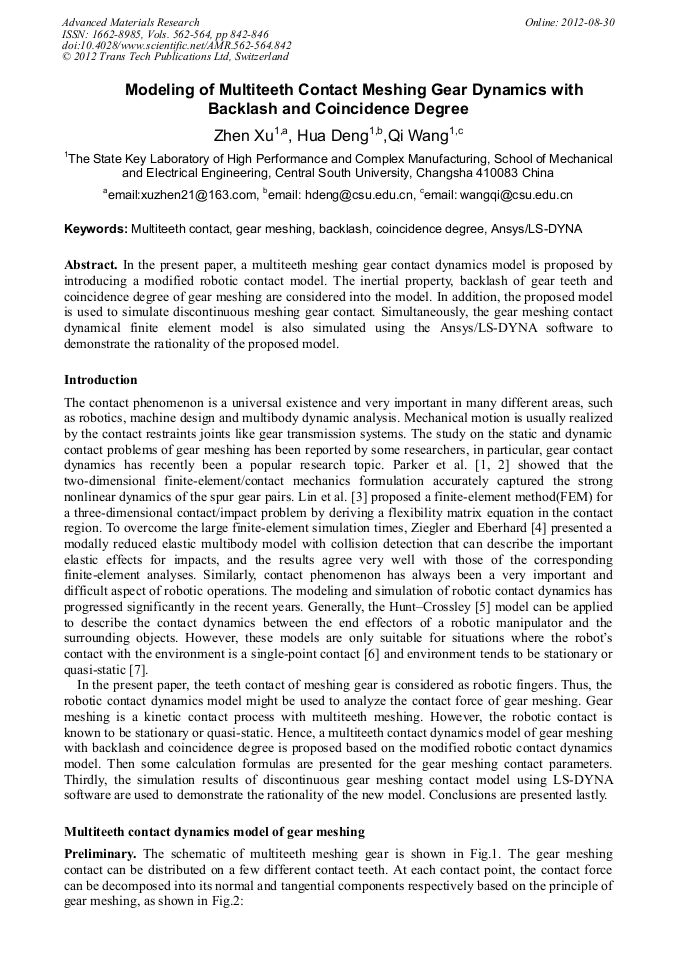

Modeling of Multiteeth Contact Meshing Gear Dynamics with Backlash and Coincidence Degree

Abstract:

In the present paper, a multiteeth meshing gear contact dynamics model is proposed by introducing a modified robotic contact model. The inertial property, backlash of gear teeth and coincidence degree of gear meshing are considered into the model. In addition, the proposed model is used to simulate discontinuous meshing gear contact. Simultaneously, the gear meshing contact dynamical finite element model is also simulated using the Ansys/LS-DYNA software to demonstrate the rationality of the proposed model.

• Periodical: Advanced Materials Research (Volumes 562-564)
• Pages: 842-846
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.562-564.842
• Online since: August 2012
• Authors: Zhen Xu, Hua Deng, Qi Wang
• Keywords: ANSYS/LS-DYNA, Backlash, Coincidence Degree, Gear Meshing, Multiteeth Contact

References

[1] Parker, R.G., V. Agashe and S.M. Vijayakar, Dynamic response of a planetary gear system using a finite element/contact mechanics model. Journal of Mechanical Design, 2000. 122: p.304.

DOI: 10.1115/1.1286189

[2] Parker, R.G., S.M. Vijayakar and T. Imajo, Non-linear dynamic response of a spur gear pair: modelling and experimental comparisons. Journal of Sound and Vibration, 2000. 237(3): pp.435-455.

DOI: 10.1006/jsvi.2000.3067

[3] Lin, T., H. Ou and R. Li, A finite element method for 3D static and dynamic contact/impact analysis of gear drives. Computer methods in applied mechanics and engineering, 2007. 196(9-12): pp.1716-1728.

DOI: 10.1016/j.cma.2006.09.014

[4] Ziegler, P. and P. Eberhard, Simulative and experimental investigation of impacts on gear wheels. Computer Methods in Applied Mechanics and Engineering, 2008. 197(51-52): pp.4653-4662.

DOI: 10.1016/j.cma.2008.06.007

[5] Hunt, K.H. and F. Crossley, Coefficient of restitution interpreted as damping in vibroimpact. Journal of Applied Mechanics, 1975. 42: p.440.

DOI: 10.1115/1.3423596

[6] Weber, M., et al., Identification of contact dynamics model parameters from constrained robotic operations. Journal of dynamic systems, measurement, and control, 2006. 128: p.307.

DOI: 10.1115/1.2192839

[7] Erickson, D., M. Weber and I. Sharf, Contact stiffness and damping estimation for robotic systems. The International Journal of Robotics Research, 2003. 22(1): p.41.

DOI: 10.1177/0278364903022001004

[8] Diolaiti, N., C. Melchiorri and S. Stramigioli, Contact impedance estimation for robotic systems. Robotics, IEEE Transactions on, 2005. 21(5): pp.925-935.

DOI: 10.1109/tro.2005.852261

[9] Sun, T. and H.Y. Hu, Nonlinear dynamics of a planetary gear system with multiple clearances. Mechanism and machine theory, 2003. 38(12): pp.1371-1390.

DOI: 10.1016/s0094-114x(03)00093-4

[10] Lankarani, H.M. and P.E. Nikravesh, A contact force model with hysteresis damping for impact analysis of multibody systems. Journal of Mechanical Design, 1990. 112: p.369.

DOI: 10.1115/1.2912617
