3-D Numerical Simulation on Unsteady Turbulent Flow of Rotational Flow Self-Priming Pump

Abstract:

The three-dimensional unsteady turbulent flow of rotational flow self-priming pump was simulated by using Reynolds time-averaged N-S equations and the standard k-ε turbulent model, sliding mesh model of static-dynamic coupled models and SIMPLE arithmetic. The static pressure distribution of the pump central rotative surface and relative velocity of the impeller central rotative surface in a complete application cycle were analyzed. The rule of instantaneous head in a impeller channel cycle was studied, and the positions of maximal head and minimal head were analyzed. It revealed that the unsteady method can truly simulate the changes of the rotational flow self-priming pump interior flow, and the unsteady characteristic of interior flow in rotational flow self-priming pump is obvious and it changes as the relative position of impeller and volute change. The change is periodical, and its frequency is relate to the impeller number and the rotate speed of the pump.

You might also be interested in these eBooks

Materials Engineering and Automatic Control

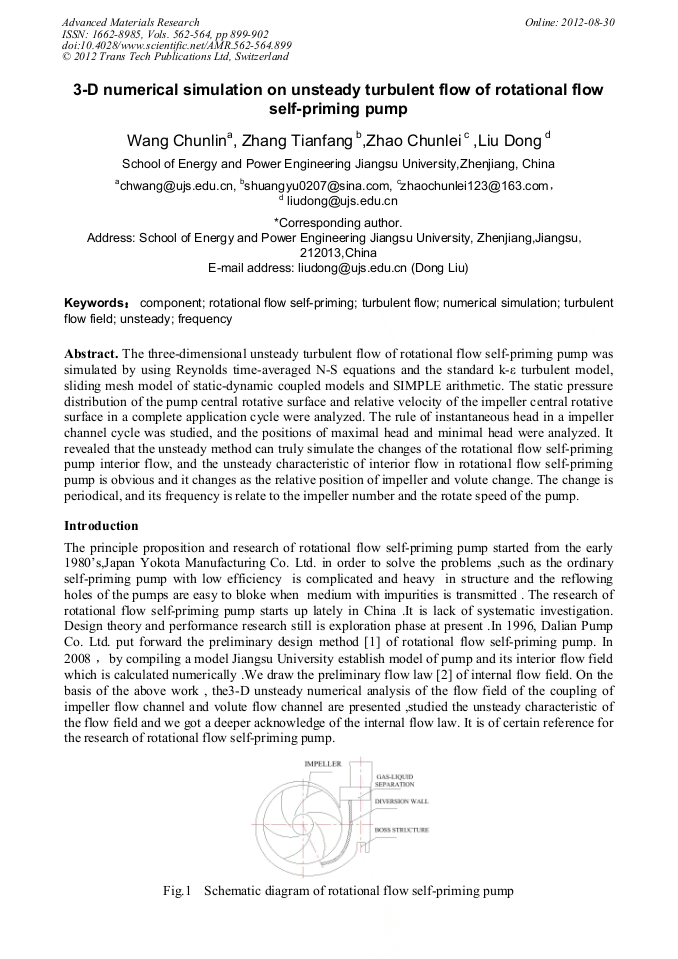

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 562-564)

Pages:

899-902

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.562-564.899

Citation:

Cite this paper

Online since:

August 2012

Authors:

Chun Lin Wang, Tian Fang Zhang, Chun Lei Zhao, Dong Liu

Keywords:

Component, Frequency, Numerical Simulation, Rotational Flow Self-Priming, Turbulent Flow, Turbulent Flow Field, Unsteady

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Zhang Lichen, Liu Peicheng. Principle and Design of DUH self-priming pump[J]. Pump Technology. 1996, (6): 32-34. (in Chinese).

Google Scholar

[2] Wang Chunlin, Si Yanlei, Zheng Haixia，et al. Numerical simulation of rotational interior flow in self-priming pump[J]. Drainage and Irrigation Machinery, 2008, 26(2): 31-35. (in Chinese).

Google Scholar

[3] Li Ping, Jiang Dan, He Keqiang. Numerical simulation of steam flow in jacketed flow distributor of high-pressure feed-water heaters' steam desuperheating section[J]. Journal of Power Engineering. 2007, 27(5): 732-735. (in Chinese).

Google Scholar

[4] Yu Hao, Kivilathti, Jorma. CFD Modeling of the Flow Field inside a Reflow Oven [J]. Soldering and Surface Mount Technology, 2002, 14 (1): 38-44.

DOI: 10.1108/09540910210416459

Google Scholar

[5] Yang Minguan, Guo Xiaomei. Numerical simulation for incompressible turbulent flow in the impeller of sewage pump [J]. Chinese Journal of Mechanical Engineering, 2004(1): 20-25.

DOI: 10.3901/cjme.2004.01.028

Google Scholar
