Chemical Etching of Dislocations Process on Sapphire

Xin Jian Xie; Qiu Yan Hao; Li Min Liang; Yin Ying Li; Cai Chi Liu

doi:10.4028/www.scientific.net/AMR.571.143

Paper Titles

Influence of Electron Irradiation on the Yellow Luminescence in Undoped n-GaN
p.125

Solvothermal Method Preparation of Nano Y₂O₂S:Eu ³⁺ and Research of Luminescence Property
p.129

The Investigation of Metamaterials by Measuring the Power of Transmission in the Terahertz Regime
p.133

Study on TE₀₁₁ Mode’s Resonant Characteristic of Complicated Microwave Cavity with Ceramics Layer in Rubidium Frequency Standard
p.137

Chemical Etching of Dislocations Process on Sapphire
p.143

GaN Layer Grown by Hydride Vapor Phase Epitaxy: Influence of the Reactor Pressure
p.147

Terahertz Response of Metamaterial Split-Ring Resonators: Numerical Analysis and Topology Design
p.151

Near-Infrared Detecting Array for High Energy Laser Beam Diagnostics
p.156

Influence of Plasmonic Light-Scattering by Gold Nano-Island Structures on the Quantum Efficiency of Organic Solar Cells
p.160

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 571Chemical Etching of Dislocations Process on...

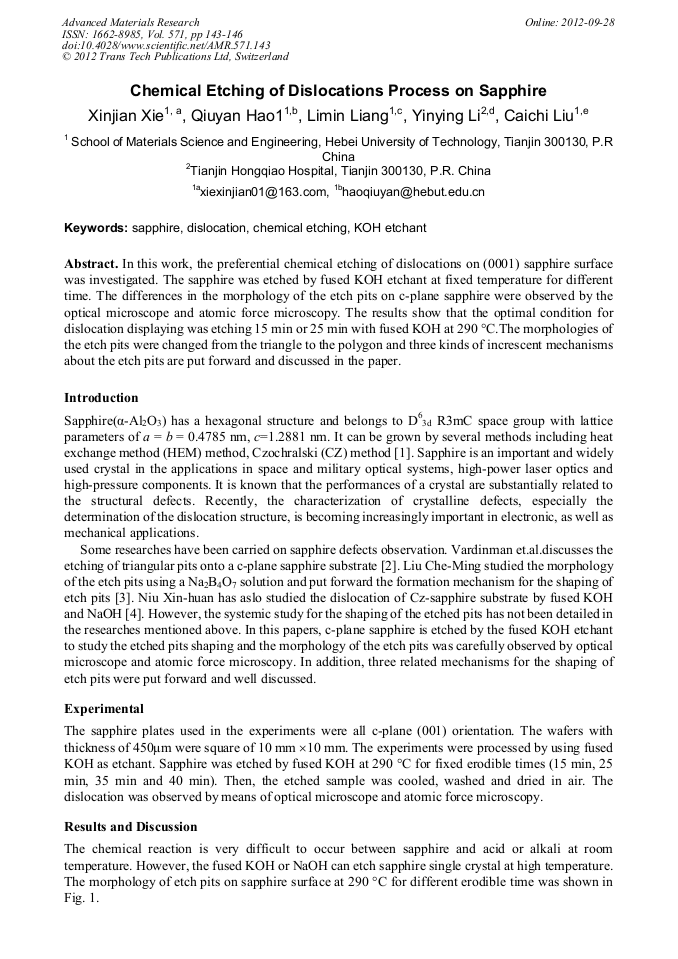

Chemical Etching of Dislocations Process on Sapphire

Abstract:

In this work, the preferential chemical etching of dislocations on (0001) sapphire surface was investigated. The sapphire was etched by fused KOH etchant at fixed temperature for different time. The differences in the morphology of the etch pits on c-plane sapphire were observed by the optical microscope and atomic force microscopy. The results show that the optimal condition for dislocation displaying was etching 15 min or 25 min with fused KOH at 290 °C.The morphologies of the etch pits were changed from the triangle to the polygon and three kinds of increscent mechanisms about the etch pits are put forward and discussed in the paper.
