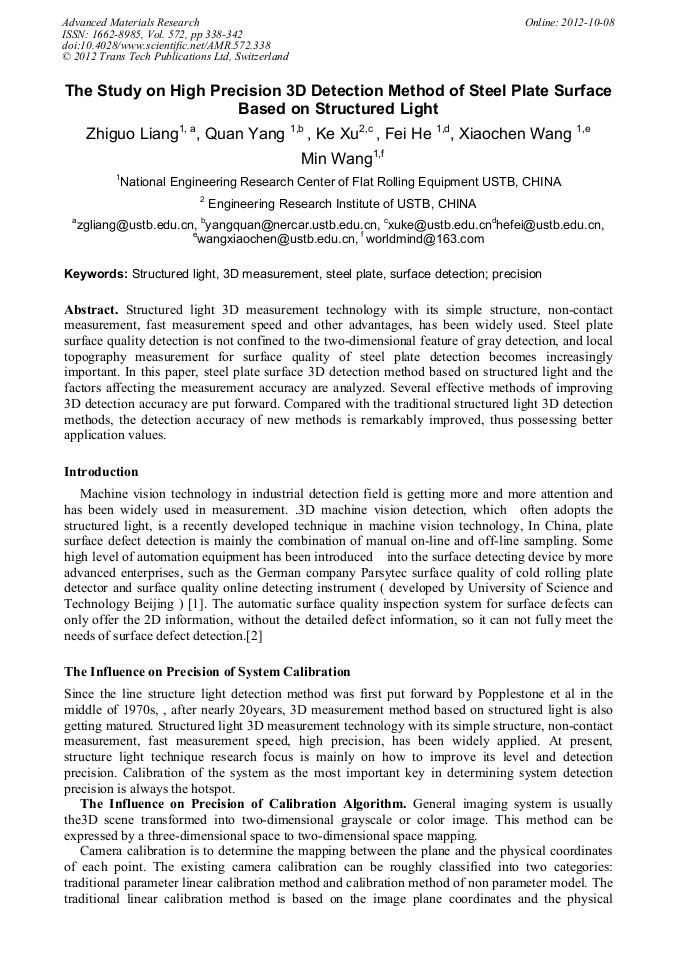

The Study on High Precision 3D Detection Method of Steel Plate Surface Based on Structured Light

Abstract:

Structured light 3D measurement technology with its simple structure, non-contact measurement, fast measurement speed and other advantages, has been widely used. Steel plate surface quality detection is not confined to the two-dimensional feature of gray detection, and local topography measurement for surface quality of steel plate detection becomes increasingly important. In this paper, steel plate surface 3D detection method based on structured light and the factors affecting the measurement accuracy are analyzed. Several effective methods of improving 3D detection accuracy are put forward. Compared with the traditional structured light 3D detection methods, the detection accuracy of new methods is remarkably improved, thus possessing better application values.

• Periodical: Advanced Materials Research (Volume 572)
• Pages: 338-342
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.572.338
• Online since: October 2012
• Authors: Zhi Guo Liang, Quan Yang, Ke Xu, Fei He, Xiao Chen Wang, Min Wang
• Keywords: 3D Measurement, Precision, Steel Plate, Structured Light, Surface Detection

References

[1] K. Xu, J.W. Xu and S.L. Lu: Journal of University of Science and Technology Beijing. Vol. 6 (2000) No. 4, p.296.

[2] H.Q. Tong: Reseach on Iron and Steel. (1997) No. 2, p.55.

[3] I. Abdel-AzizY and H.M. Karara: Proc. Symp. Close-Range Photogrammetry. （Urbana, Illinois, US, 1971）Vol. 1, p.18.

[4] Amnon Shashua and Nassir. Proc. IEEE Conf. CVPR. (Seattle, Washington, US june 1994): Vol. 483-489.

[5] M.L. Qiu and S.D. Ma. Proc. of the 2nd Asian Conference on Computer Vision(Singapore, December 5-8, 1995). 205-209.

[6] Y.Q. Tan K.C. Yang and J.C. Fang. Computer Engineering and Applications, Vol. 11 (2001) No. 1, pp.110-112.
