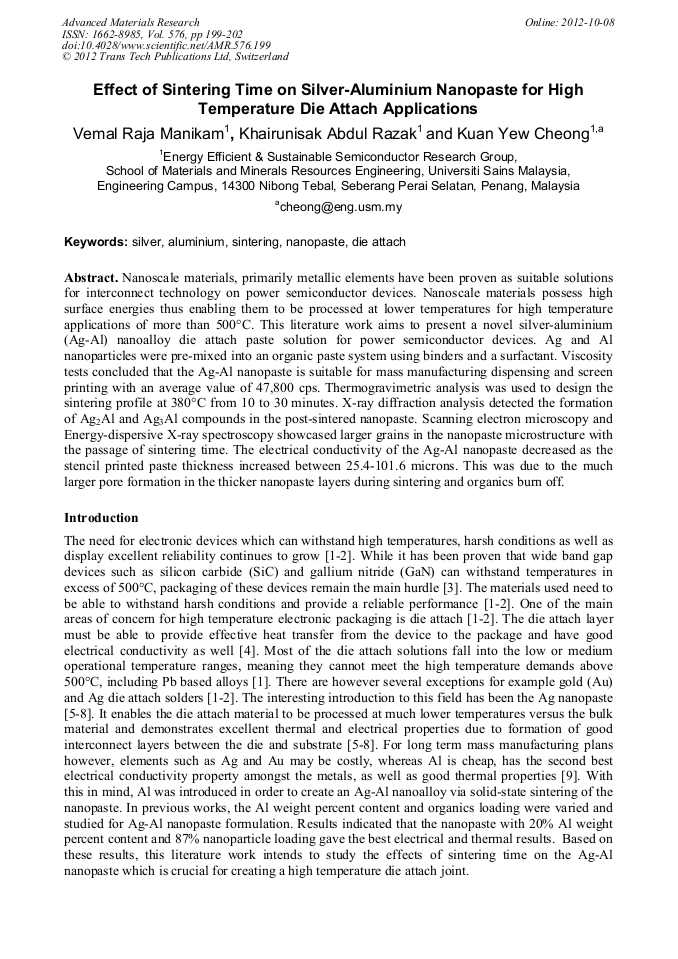

Effect of Sintering Time on Silver-Aluminium Nanopaste for High Temperature Die Attach Applications

Abstract:

Nanoscale materials, primarily metallic elements have been proven as suitable solutions for interconnect technology on power semiconductor devices. Nanoscale materials possess high surface energies thus enabling them to be processed at lower temperatures for high temperature applications of more than 500°C. This literature work aims to present a novel silver-aluminium (Ag-Al) nanoalloy die attach paste solution for power semiconductor devices. Ag and Al nanoparticles were pre-mixed into an organic paste system using binders and a surfactant. Viscosity tests concluded that the Ag-Al nanopaste is suitable for mass manufacturing dispensing and screen printing with an average value of 47,800 cps. Thermogravimetric analysis was used to design the sintering profile at 380°C from 10 to 30 minutes. X-ray diffraction analysis detected the formation of Ag2Al and Ag3Al compounds in the post-sintered nanopaste. Scanning electron microscopy and Energy-dispersive X-ray spectroscopy showcased larger grains in the nanopaste microstructure with the passage of sintering time. The electrical conductivity of the Ag-Al nanopaste decreased as the stencil printed paste thickness increased between 25.4-101.6 microns. This was due to the much larger pore formation in the thicker nanopaste layers during sintering and organics burn off.

• Periodical: Advanced Materials Research (Volume 576)
• Pages: 199-202
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.576.199
• Online since: October 2012
• Authors: Vemal Raja Manikam, Abdul Razak Khairunisak, Kuan Yew Cheong
• Keywords: Aluminum (Al), Die Attach, Nanopaste, Silver, Sintering

References

[1] V.R. Manikam, Kuan Yew Cheong, Die attach materials for high temperature applications: A review, IEEE Trans. Components Packag. Technol. 1 (2011) 457- 478.

DOI: 10.1109/tcpmt.2010.2100432

[2] H.S. Chin, K.Y. Cheong, A.B. Ismail, A review on die attach materials for SiC-based high-temperature power devices, Met. Mat. Trans. B. 41 (2010) 824-832.

DOI: 10.1007/s11663-010-9365-5

[3] P. Quintero, T. Oberc, P. McCluskey, Reliability assessment of high temperature lead-free device attach technologies, Electronic Components and Technology Conference (ECTC) (2008) 2131-2138.

DOI: 10.1109/ectc.2008.4550280

[4] R. Kisiel, Z. Szczepan´ ski, Die-attachment solutions for SiC power devices, Microelectron. Rel. 49 (2010) 627–629.

[5] J.G. Bai, Z.Z. Zhang, J.N. Calata, G.Q. Lu, Low-temperature sintered nanoscale silver as a novel semiconductor device-metallized substrate interconnect material, IEEE Trans. Compon. Packag. Technol. 29 (2006) 589-593.

DOI: 10.1109/tcapt.2005.853167

[6] T. Wang, X. Chen, G.Q. Lu, G.Y. Lei, Low temperature sintering with nano-silver paste in die attached interconnections, J. Electron. Mater. 36 (2007) 1333-1340.

DOI: 10.1007/s11664-007-0230-5

[7] J.G. Bai, T.G. Lei, J.N. Calata, G.Q. Lu, Processing and characterization of nanosilver pastes for die-attaching SiC devices, IEEE Trans. Electron. Packag. Manuf. 30 (2007) 241-245.

DOI: 10.1109/tepm.2007.906508

[8] J.G. Bai, Jian Yin, Z.Z. Zhang, G.Q. Lu, J.D. van Wyk, High temperature operation of SiC power devices by low-temperature sintered silver die attachment, IEEE Trans. Adv. Packag. 30 (2007) 506-510.

DOI: 10.1109/tadvp.2007.898628

[9] W.D. Callister Jr., Materials Science and Engineering: An Introduction, fifth ed., John Wiley and Sons, Inc., New York, (2000).

[10] Information on: http: /www. ami. ac. uk/courses/topics/0267_sdb/index. html.
