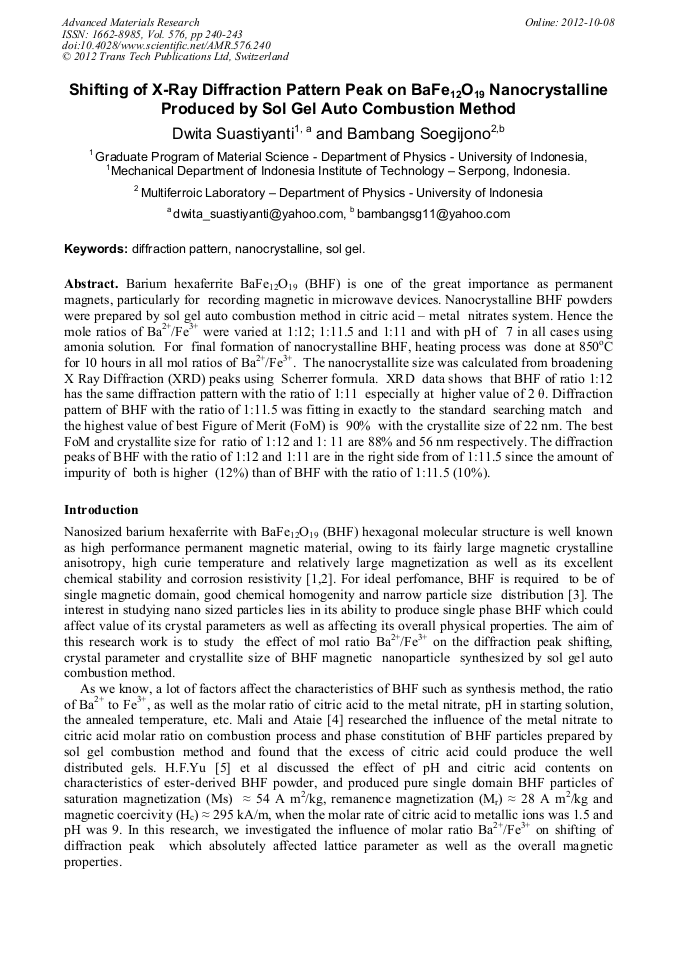

Shifting of X-Ray Diffraction Pattern Peak on BaFe₁₂O₁₉ Nanocrystalline Produced by Sol Gel Auto Combustion Method

Abstract:

Barium hexaferrite BaFe12O19 (BHF) is one of the great importance as permanent magnets, particularly for recording magnetic in microwave devices. Nanocrystalline BHF powders were prepared by sol gel auto combustion method in citric acid – metal nitrates system. Hence the mole ratios of Ba2+/Fe3+ were varied at 1:12; 1:11.5 and 1:11 and with pH of 7 in all cases using amonia solution. For final formation of nanocrystalline BHF, heating process was done at 850oC for 10 hours in all mol ratios of Ba2+/Fe3+. The nanocrystallite size was calculated from broadening X Ray Diffraction (XRD) peaks using Scherrer formula. XRD data shows that BHF of ratio 1:12 has the same diffraction pattern with the ratio of 1:11 especially at higher value of 2 θ. Diffraction pattern of BHF with the ratio of 1:11.5 was fitting in exactly to the standard searching match and the highest value of best Figure of Merit (FoM) is 90% with the crystallite size of 22 nm. The best FoM and crystallite size for ratio of 1:12 and 1: 11 are 88% and 56 nm respectively. The diffraction peaks of BHF with the ratio of 1:12 and 1:11 are in the right side from of 1:11.5 since the amount of impurity of both is higher (12%) than of BHF with the ratio of 1:11.5 (10%).

• Periodical: Advanced Materials Research (Volume 576)
• Pages: 240-243
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.576.240
• Online since: October 2012
• Authors: Dwita Suastiyanti, Bambang Soegijono
• Keywords: Diffraction Pattern, Nanocrystalline, Sol-Gel (SG)

References

[1] D. Bahadur, S. Rajakumar, Ankit Kumar, Influence of fuel ratios on auto combustion synthesis of barium ferrite nano particle, J. Chem. Sci, Vol. 118, No. 1 (January 2006) 15-21.

DOI: 10.1007/bf02708761

[2] A.T. Wise, J. Rocks , D.E. Laughlin, M.E. Mc Henry, S.D. Yoon, C. Vittoria, V.G. Harris, M-type barium hexaferrite synthesis and characterization for phase shifter application, Journal of Applied Physics 109 (2011) 07E535.

DOI: 10.1063/1.3559471

[3] Liu Junliang, Zeng Yanwei, Guo Cuijing, Zhang Wei, Yang Xiaowei, One step synthesis of barium hexaferrite nano powders via microwave assisted sol – gel auto combustion. Elsevier Science Direct Ceramics International 30 (2010) 993-997.

DOI: 10.1016/j.jeurceramsoc.2009.10.019

[4] A. Mali , A. Ataie, The influence of the metal nitrate to citric acid molar ratio on combustion process and phase constitution of BHF particles, Ceram. Int, 30 (2004) (1979).

DOI: 10.1016/j.ceramint.2003.12.178

[5] H.F. Yu, K.C.H. Huang, The effect of pH and citric acid contents on characteristics of ester-derived BHF powder, J. Magn. Magn. Mater, 260 (2003) 455.

[6] Guoqing Xu, Honghang Ma, Minjian Zhong, Jiong Zhou, Yuezhong Yue, Zhengming He, Influence of pH on characteristics of BaFe12O19 powder prepared by sol-gel auto combustion, Journal of Magnetism and Magnetic Materials, 301 (2006) 383-388.

DOI: 10.1016/j.jmmm.2005.07.014
