Structural Development of Expanded Austenite on Duplex Stainless Steel by Low Temperature Thermochemical Nitriding Process

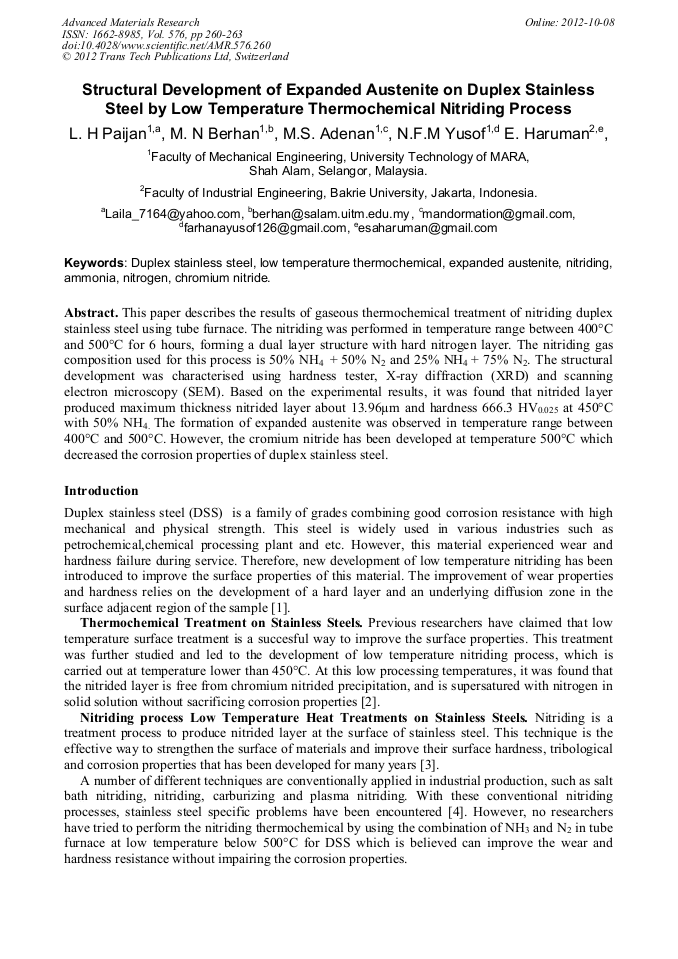

Abstract:

Article Preview

This paper describes the results of gaseous thermochemical treatment of nitriding duplex stainless steel using tube furnace. The nitriding was performed in temperature range between 400°C and 500°C for 6 hours, forming a dual layer structure with hard nitrogen layer. The nitriding gas composition used for this process is 50% NH4 + 50% N2 and 25% NH4 + 75% N2. The structural development was characterised using hardness tester, X-ray diffraction (XRD) and scanning electron microscopy (SEM). Based on the experimental results, it was found that nitrided layer produced maximum thickness nitrided layer about 13.96µm and hardness 666.3 HV0.025 at 450°C with 50% NH4. The formation of expanded austenite was observed in temperature range between 400°C and 500°C. However, the cromium nitride has been developed at temperature 500°C which decreased the corrosion properties of duplex stainless steel.

Info:

Periodical:

Edited by:

Mustafizur Rahman, Erry Yulian Triblas Adesta, Mohammad Yeakub Ali, A.N. Mustafizul Karim, Md. Abdul Maleque, Hazleen Anuar, Tasnim Firdaus Mohamed Ariff, NMohammad Iqbal, Noorasikin Samat and Noor Azlina Hassan

Pages:

260-263

DOI:

10.4028/www.scientific.net/AMR.576.260

Citation:

L.H. Paijan et al., "Structural Development of Expanded Austenite on Duplex Stainless Steel by Low Temperature Thermochemical Nitriding Process", Advanced Materials Research, Vol. 576, pp. 260-263, 2012

Online since:

October 2012

Export:

Price:

$38.00

[1] C. Thomas, and A.J. M Somers, Characterisation of low temperature surface hardened stainless steel, Structure e-9, 9/(2006).

[2] E. Haruman, Y.S.H. Malik, A.G. E Sutjipto, Low temperature fluidized bed nitriding of austenitic stainless steel, Solid State Phenomena. 118 (2006) 125-130.

DOI: 10.4028/www.scientific.net/ssp.118.125

[3] W. Liang, X. Bin, Y. Zhiwei, S. Yaqin, The wear and corrosion peoperties of stainless steel nitride by low pressure plasma arc source ion nitriding at low temperatures, Surface and coating technology. 130 (2000) 304 -308.

DOI: 10.1016/s0257-8972(00)00713-1

[4] E. Richter, R. Gunzel, S. Parasacandola, T. Telbizova, O. Kruse, W. Moller, Nitriding of stainless steel and aluminium alloys by plasma immersion ion implantation, surface and coating Technology. 128-129 (2000) 21-27.

DOI: 10.1016/s0257-8972(00)00638-1

[5] A. Triwiyanto, S. Mridha, E. Haruman, Low temperature thermochemical surface treatment of austenitic stainless steel for improved mechanical and tribological, Advanced materials research. 83-86 (2010) 489-496.

DOI: 10.4028/www.scientific.net/amr.83-86.489

[6] Y. Sun, E. Haruman, Low temperature plasma surface alloying of austenitic stainless steels, Solid state phenomena. 118 (2006) 85-90.

DOI: 10.4028/www.scientific.net/ssp.118.85

[7] Z. L Zhang, T. Bell, Surf. Eng. 19 (1985) 131.

[8] TMR Stainless, Practical guidelines for the fabrication of duplex stainless steel, second ed., Pittsburgh, PA, USA, (2009).

[9] M. Tsujikawa, N. Yamauchi, N. Ueda, T. Stone, Y. Hirose, Surface and Coating Tech. 193 (2005) 309-313.

[10] Y. Sun, E. Haruman, Low temperature plasma surface alloying of austenitic stainless steels, Solid State Phenomena. 118 (2006) 85-90.

DOI: 10.4028/www.scientific.net/ssp.118.85

In order to see related information, you need to Login.
