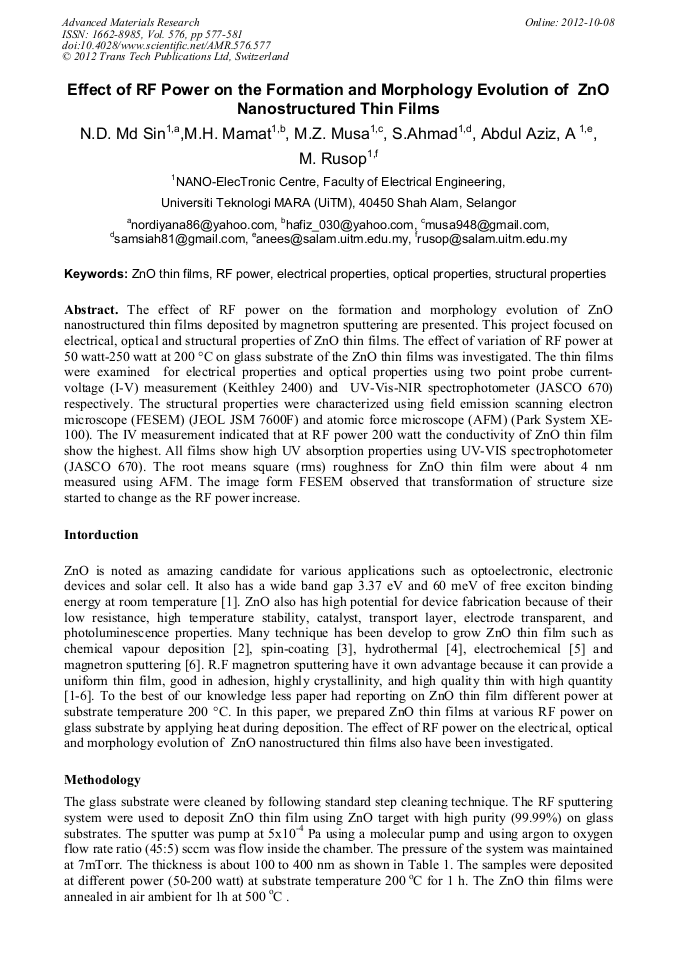

Effect of RF Power on the Formation and Morphology Evolution of ZnO Nanostructured Thin Films

Abstract:

The effect of RF power on the formation and morphology evolution of ZnO nanostructured thin films deposited by magnetron sputtering are presented. This project focused on electrical, optical and structural properties of ZnO thin films. The effect of variation of RF power at 50 watt-250 watt at 200 °C on glass substrate of the ZnO thin films was investigated. The thin films were examined for electrical properties and optical properties using two point probe current-voltage (I-V) measurement (Keithley 2400) and UV-Vis-NIR spectrophotometer (JASCO 670) respectively. The structural properties were characterized using field emission scanning electron microscope (FESEM) (JEOL JSM 7600F) and atomic force microscope (AFM) (Park System XE-100). The IV measurement indicated that at RF power 200 watt the conductivity of ZnO thin film show the highest. All films show high UV absorption properties using UV-VIS spectrophotometer (JASCO 670). The root means square (rms) roughness for ZnO thin film were about 4 nm measured using AFM. The image form FESEM observed that transformation of structure size started to change as the RF power increase.

• Periodical: Advanced Materials Research (Volume 576)
• Pages: 577-581
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.576.577
• Online since: October 2012
• Authors: N.D.M. Sin, Mohamad Hafiz Mamat, Mohamed Zahidi Musa, S. Ahmad, A. Abdul Aziz, Mohamad Rusop Mahmood
• Keywords: Electrical Properties, Optical Property, RF Power, Structural Property, ZnO Thin Film

References

[1] Eugenia Mirica, Glen Kowach, Paul Evans, Henry Du, Morphology Evolution of ZnO Thin Films Deposited by Reactive Sputtering, Crystal growth & design Vol. 4 No. 1 (2004) 147-156.

DOI: 10.1021/cg025595j

[2] Yongsheng Zhang, Ke Yu, Desheng Jiang, Ziqiang Zhu, Haoran Geng, Laiqiang Luo, Zinc oxide nanorod and nanowire for humidity sensor, Applied surface science 242(2005) 212-217.

DOI: 10.1016/j.apsusc.2004.08.013

[3] M.H. Mamat, M.Z. Sahdan, Z. Khusaimi, A. Zain Ahmed, S. Abdullah, M. Rusop, influence of doping concentrations on the aluminium doped zinc oxide thin films properties for ultraviolet photoconductive sensor application, Optical Materials 32 (2010).

DOI: 10.1016/j.optmat.2009.12.005

[4] N. D. Md Sin, M. Fuad Kamel, Rosalena Irma Alip, Zulfakri Mohamad, and M. Rusop , The Electrical Characteristics of Aluminium Doped Zinc Oxide Thin Film for Humidity Sensor Applications, Journal Advanced Materials Research Vol. 364 (2012).

DOI: 10.1155/2011/974906

[5] N. Kamal Singh, Sadhna Shrivastava, Shyama Rath, S. Annapoorni, Optical and room temperature sensing properties of highly oxygen deficient flower-like ZnO nanostructures, Applied Surface Science 257 (2010) 1544–1549.

DOI: 10.1016/j.apsusc.2010.08.093

[6] N.D. Md Sin, M.Z. Musa, M. Rusop, Effect of R. F Power to the Properties of ZnO Thin Films Deposited by Magnetron Sputtering, Advanced Materials Research Vol. 364 (2012) pp.119-123.

DOI: 10.4028/www.scientific.net/amr.364.119

[7] Shufang Wang, Xifeng Li, Jianhua Zhang, Effects of substrate temperature on the properties of heavy Ga-doped ZnO transparent conductive film by RF magnetron sputtering, Journal of Physics: Conference Series 188 (2009) 012017.

DOI: 10.1088/1742-6596/188/1/012017

[8] Y.M. Lu, W.S. Hwang, W.Y. Liu, J.S. Yang, in: Effect of RF power on optical and electrical properties of ZnO thin film by magnetron sputtering, Material Chemistry and Physics 72 269-272 (2001).

DOI: 10.1016/s0254-0584(01)00450-3

[9] Su-Shia Lin, Jow-Lay Huang, in: The effect of r. f. power and substrate temperature on the properties of ZnO films, Surface & Coating Technology 185, 222-227 (2004).

[10] Cao Feng, Wang Yi-Ding, Liu Da Li, Yin Jing-Zhi, Guo Bao-Jia, Li Lei, An Yu-Peng, Preparation and Characterization of Transparent Conductive Nb-Doped ZnO Films by Radio-Frequency Sputtering, Chin. Phys. Lett. Vol. 26, No. 3 (2009) 034210.

DOI: 10.1088/0256-307x/26/3/034210

[11] Wang Guanghua, Kong Jincheng, Li Xiongjun, Qiu Feng, Li Cong, Yang Lili, Kong Lingde, and Ji Rongbin, in : Journal of Semiconductors Vol. 31, No. 5 (2010).

DOI: 10.1088/1674-4926/31/5/053004

[12] I. Sayago, M. Aleixandre, L. Ares, M.J. Fernandez, J.P. Santos, J. Gutierrez, M.C. Horrillo The effect of the oxygen concentration and rf power on the zinc oxide films properties deposited by magnetron sputtering, Applied surface science 245 (2005).

DOI: 10.1016/j.apsusc.2004.10.035
