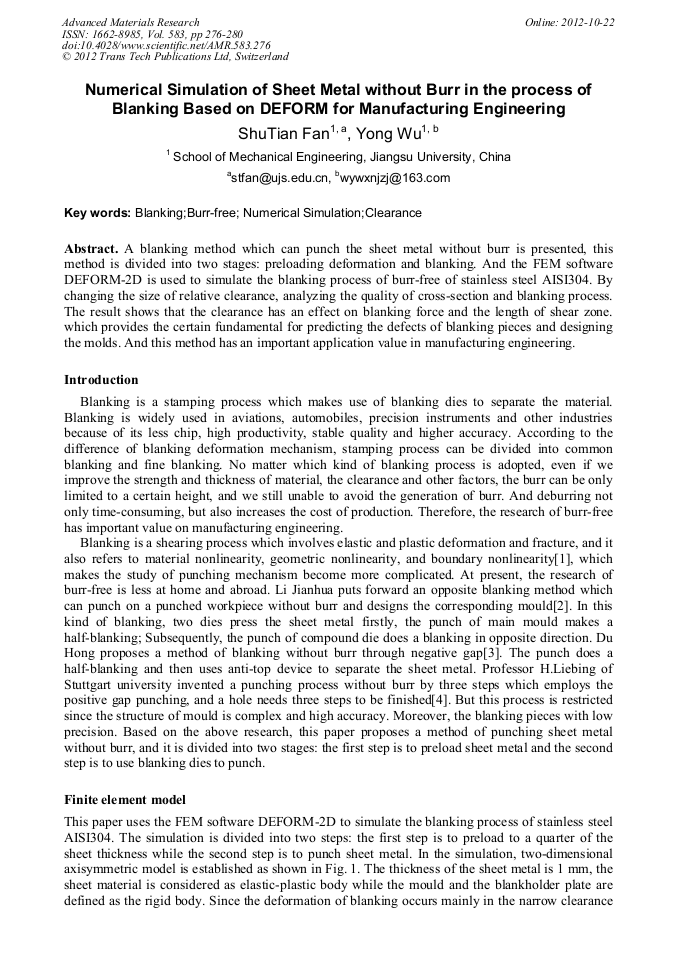

Numerical Simulation of Sheet Metal without Burr in the Process of Blanking Based on DEFORM for Manufacturing Engineering

Abstract:

A blanking method which can punch the sheet metal without burr is presented, this method is divided into two stages: preloading deformation and blanking. And the FEM software DEFORM-2D is used to simulate the blanking process of burr-free of stainless steel AISI304. By changing the size of relative clearance, analyzing the quality of cross-section and blanking process. The result shows that the clearance has an effect on blanking force and the length of shear zone. which provides the certain fundamental for predicting the defects of blanking pieces and designing the molds. And this method has an important application value in manufacturing engineering.

• Periodical: Advanced Materials Research (Volume 583)
• Pages: 276-280
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.583.276
• Online since: October 2012
• Authors: Shu Tian Fan, Yong Wu
• Keywords: Blanking, Burr-Free, Clearance, Numerical Simulation

References

[1] Fang Gang, Zeng Pan: Finite Element Simulation for Blanking Process of Sheet Metal (2001).

[2] Li Jianhua: Sheet Punching without Burr (1987).

[3] Du Hong: A Blanking Method to Punch on a Punched Workpiece without Burr (2000).

[4] K. Lange, H. Liebing: Blaking and Piercing Without any Burr (1978).

[5] Wang Xiufeng, Wan Lianghui: Cold Stamping Mould Design and Manufacturing (Beijing University of Aeronautics and Astronautics Publications, China 2005).

[6] Du Dongfu: Cold Stamping Process and Die Design (Hunan Science and Technology Publications, China 2005).
