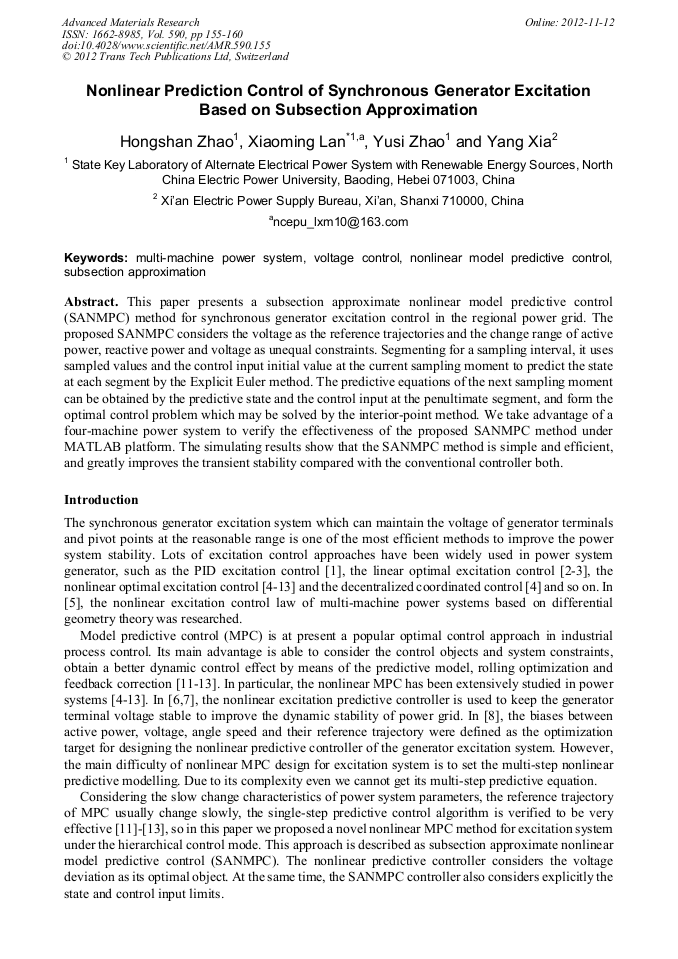

Nonlinear Prediction Control of Synchronous Generator Excitation Based on Subsection Approximation

Abstract:

This paper presents a subsection approximate nonlinear model predictive control (SANMPC) method for synchronous generator excitation control in the regional power grid. The proposed SANMPC considers the voltage as the reference trajectories and the change range of active power, reactive power and voltage as unequal constraints. Segmenting for a sampling interval, it uses sampled values and the control input initial value at the current sampling moment to predict the state at each segment by the Explicit Euler method. The predictive equations of the next sampling moment can be obtained by the predictive state and the control input at the penultimate segment, and form the optimal control problem which may be solved by the interior-point method. We take advantage of a four-machine power system to verify the effectiveness of the proposed SANMPC method under MATLAB platform. The simulating results show that the SANMPC method is simple and efficient, and greatly improves the transient stability compared with the conventional controller both.

• Periodical: Advanced Materials Research (Volume 590)
• Pages: 155-160
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.590.155
• Online since: November 2012
• Authors: Hong Shan Zhao, Xiao Ming Lan, Yu Si Zhao, Yang Xia
• Keywords: Multi-Machine Power System, Nonlinear Model Predictive Control, Subsection Approximation, Voltage Control

References

[1] Jurado.F., Cano.A., Ortega.M., Comparison between PID and PSS effects on transient stability , Syst. Control Theory Appl. , 2000, pp.156-160.

[2] Chengxiong Mao, Malik O.P., Hope G.S., Jun Fan, An adaptive generator excitation controller based on linear optimal control, IEEE Trans. Energy Convers. 1990, pp.673-678.

DOI: 10.1109/60.63138

[3] Abniki H., Asadi A., Khaiavi P., Nabavi-Razavi M.T., A novel optimization technique for Linear Optimal Control and Power System Stabilizer in multi-machine power systems, International Conference on Environment and Electrical Engineering (2011).

DOI: 10.1109/eeeic.2011.5874718

[4] Hashmani A.A., Youyi Wang, Lie Tek Tjing, Design and application of a nonlinear coordinated excitation and TCPS controller in power systems, Int. J. Control Autom. Syst., 2005, pp.346-354.

DOI: 10.1109/acc.2001.945815

[5] Lu Q., Sun Y., Xu Z., Mochizuki T., Decentralized nonlinear optimal excitation control, IEEE Trans. Power Syst., 1996, p.1957-(1962).

DOI: 10.1109/59.544670

[6] Liang Z.S. Pan K.Y. Zhang H.G., Nonlinear excitation model predictive control for electric power system, in Proc. 1999 14th of World Congress. International Federation of Automatic Control, pp.273-277.

[7] Zhishan Liang, Huanguang Zhang, Hongyue Wang, Hongzhan Nie, Holographic robust predictive control of synchronous machine excitation for power systems, in Proc. 2000 IEEE Power Engineering Society Winter Meeting, pp.181-185.

DOI: 10.1109/pesw.2000.849951

[8] LIU Hui, LI Xiao-cong, WEI Hua, WANG Ni, The design of nonlinear predictive excitation controller base on TSE, " Zhongguo Dianji Gongcheng Xuebao, 2005, pp.27-37.

[9] Liu Shuiping Liu Mingbo Xie Min, Model predictive control method for load shedding of power system based on trajectory sensitivities, Zhongguo Dianji Gongcheng Xuebao, 2010, pp.28-35.

[10] Wu xiaochen Xu Aidong Zhao jinquan Deng Hui Xu Peng, Review on transient stability prediction methods based on real time wide-area phasor measurement, DRPT- Int. Conf. Electr. Util. Deregulation Restructuring Power Technol., 2011, pp.302-306.

DOI: 10.1109/drpt.2011.5993910

[11] Henson M.A., Nonlinear model predictive control: current status and future directions, Comput. Chem. Eng. (UK), 1998, pp.187-202.

[12] Badgwell T.A. Qin S.J., Review of nonlinear model predictive control applications, nonlinear predictive control theory and practice, 2001, pp.3-32.

DOI: 10.1049/pbce061e_ch1

[13] Garriqa. Jorge L. Soroush. Masoud, Model predictive control method: A review, Ind. Eng. Chem. Res., 2010, pp.3505-3515.

[14] IEEE Recommended Practice for Excitation System Models for Power System Stability Studies, IEEE Standard 421. 5, (1992).
