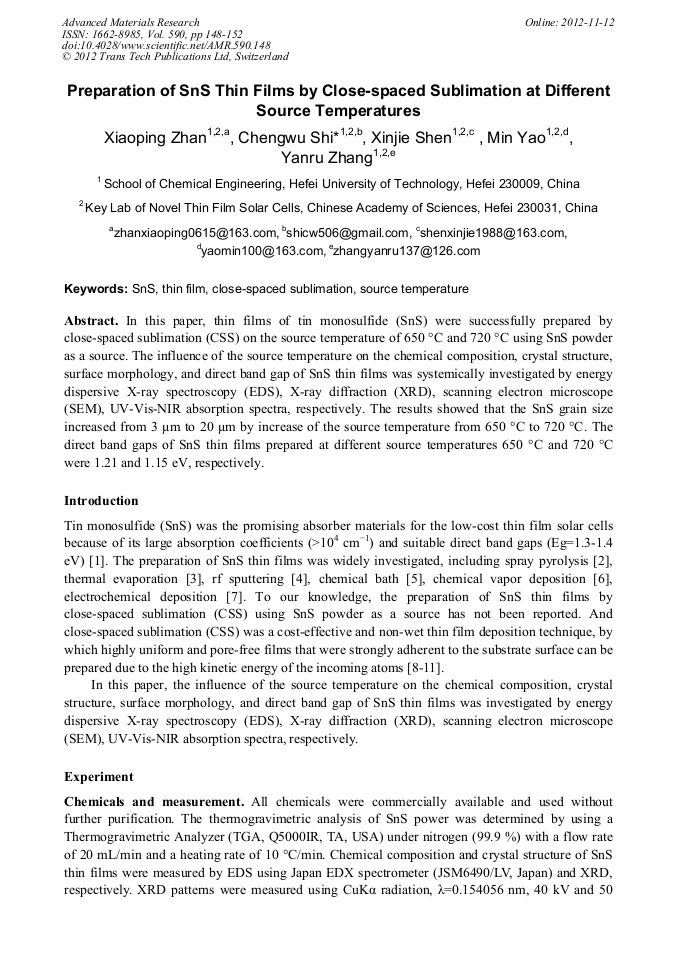

Preparation of SnS Thin Films by Close-Spaced Sublimation at Different Source Temperatures

Abstract:

In this paper, thin films of tin monosulfide (SnS) were successfully prepared by close-spaced sublimation (CSS) on the source temperature of 650 °C and 720 °C using SnS powder as a source. The influence of the source temperature on the chemical composition, crystal structure, surface morphology, and direct band gap of SnS thin films was systemically investigated by energy dispersive X-ray spectroscopy (EDS), X-ray diffraction (XRD), scanning electron microscope (SEM), UV-Vis-NIR absorption spectra, respectively. The results showed that the SnS grain size increased from 3 μm to 20 μm by increase of the source temperature from 650 °C to 720 °C. The direct band gaps of SnS thin films prepared at different source temperatures 650 °C and 720 °C were 1.21 and 1.15 eV, respectively.

• Periodical: Advanced Materials Research (Volume 590)
• Pages: 148-152
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.590.148
• Online since: November 2012
• Authors: Xiao Ping Zhan, Cheng Wu Shi, Xin Jie Shen, Min Yao, Yan Ru Zhang
• Keywords: Close-Spaced Sublimation, SNS, Source Temperature, Thin Film

References

[1] G. Valiukonis, D.A. Guiseinova, G. Krivaite, A. Sileika, Optical spectra and energy band structure of layer-type AIVBII compounds, J. Phys. Stat. Solidi, (B) 135 (1986) 229-307.

DOI: 10.1002/pssb.2221350130

[2] N. Koteeswara Reddy and K.T. Ramakrishna Reddy, SnS films for photovoltaic applications: Physical investigations on sprayed SnxSy films, Physica B 368 (2005) 25-31.

DOI: 10.1016/j.physb.2005.06.032

[3] A.A. Shama, H.M. Zeyada, Electronic dielectric constants of thermally evaporated SnS thin films, Opt. Mater. 24 (2003) 555-561.

DOI: 10.1016/s0925-3467(03)00138-1

[4] K. Hartman, J.L. Johnson, M.I. Bertoni, SnS thin-films by RF sputtering at room temperature, Thin Solid Films 519 (2011) 7421-7424.

DOI: 10.1016/j.tsf.2010.12.186

[5] P.P. Hankare, A.V. Jadhav, P.A. Chate, Synthesis and characterization of tin sulphide thin films grown by chemical bath deposition technique, J. Alloys Compd. 463 (2008) 581-584.

DOI: 10.1016/j.jallcom.2007.11.065

[6] L.S. Price, I.P. Parkin, A.M.E. Hardy, R.J.H. Clark, T.G. Hibbert, K.C. Molloy, Atmospheric pressure chemical vapor deposition of tin sulfides (SnS, Sn2S3, and SnS2) on Glass, Chem. Mater. 11 (1999) 1792-1799.

DOI: 10.1002/chin.199940218

[7] M.M. Kamel, M.M. Ibrahim, Electrochemical deposition and characterization of SnS thin films, J. Solid State Electrochem 15 (2011) 683-688.

DOI: 10.1007/s10008-010-1136-3

[8] Y.P. Venkata Subbaiah, P. Prathap, M. Devika, K.T. Ramakrishna Reddy, Close-spaced evaporated ZnSe film: preperation and characterization, Physica B 365 (2005) 240-246.

DOI: 10.1016/j.physb.2005.05.020

[9] B. Schumm, H. Althues, S. Kaskel, CdTe nanoparticles for the deposition of CdTe films using close spaced sublimation, J. Cryst. Growth 312 (2010) 2449-2453.

DOI: 10.1016/j.jcrysgro.2010.05.021

[10] Y.P. Venkata Subbaiah, P. Prathap, K.T. Ramakrishna Reddy, Structural, electrical and optical properties of ZnS films deposited by close-spaced evaporation, Appl. Surf. Sci. 253 (2006) 2409-2415.

DOI: 10.1016/j.apsusc.2006.04.063

[11] Q. Jianga, B.J. Cantwell, J.T. Mullins, A. Basu, A.W. Brinkman, Close-spaced sublimation growth of homo-and hetero-epitaxial CdTe thick films, J. Cryst. Growth 310 (2008) 1664-1668.

DOI: 10.1016/j.jcrysgro.2007.12.043
