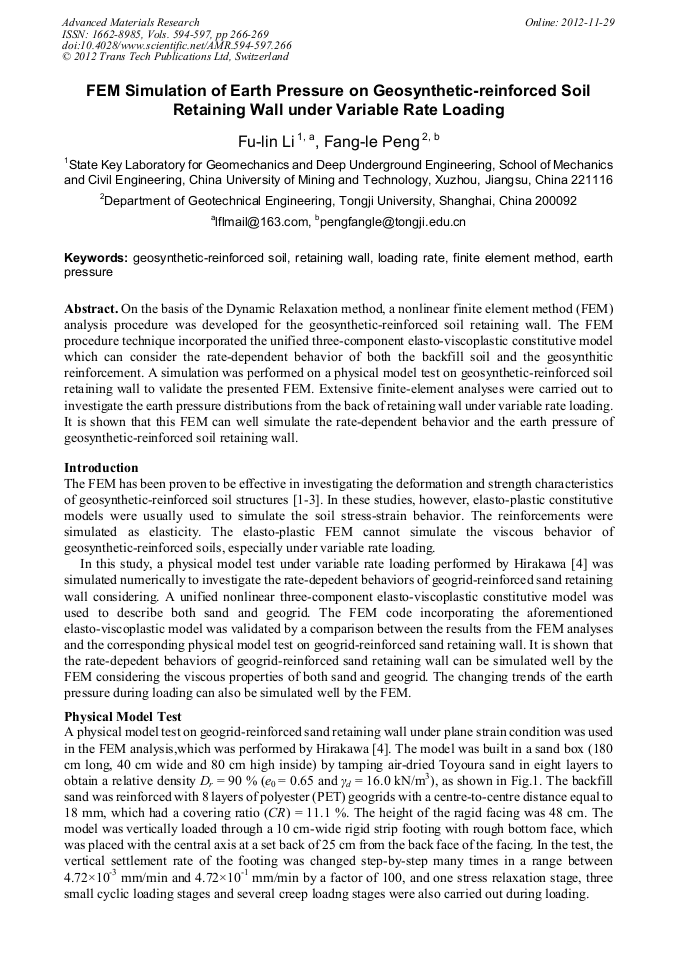

FEM Simulation of Earth Pressure on Geosynthetic-Reinforced Soil Retaining Wall under Variable Rate Loading

Abstract:

On the basis of the Dynamic Relaxation method, a nonlinear finite element method (FEM) analysis procedure was developed for the geosynthetic-reinforced soil retaining wall. The FEM procedure technique incorporated the unified three-component elasto-viscoplastic constitutive model which can consider the rate-dependent behavior of both the backfill soil and the geosynthitic reinforcement. A simulation was performed on a physical model test on geosynthetic-reinforced soil retaining wall to validate the presented FEM. Extensive finite-element analyses were carried out to investigate the earth pressure distributions from the back of retaining wall under variable rate loading. It is shown that this FEM can well simulate the rate-dependent behavior and the earth pressure of geosynthetic-reinforced soil retaining wall.

• Periodical: Advanced Materials Research (Volumes 594-597)
• Pages: 266-269
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.594-597.266
• Online since: November 2012
• Authors: Fu Lin Li, Fang Le Peng
• Keywords: Earth Pressure, Finite Element Method (FEM), Geosynthetic-Reinforced Soil, Loading Rate, Retaining Wall

References

[1] F.L. Peng, N. Kotake, F. Tatsuoka, D. Hirakawa, T. Tanaka, Plane strain compression behaviour of geogrid-reinforced sand and its numerical analysis, Soils Found. 40(3) (2000) 55-74.

DOI: 10.3208/sandf.40.3_55

[2] Kotake, N., Tatsuoka, F., Tanaka, T., Siddiquee, M.S.A., Huang, C.C., 2002. FEM simulation of the bearing capacity of level reinforced sand ground subjected to footing load. Geosynthetics International 8 (6), 501–549.

DOI: 10.1680/gein.8.0205

[3] H.I. Ling, H.B. Liu, Deformation analysis of reinforced soil retaining walls - simplistic versus sophisticated finite element analyses, Acta Geotech. 4(3) (2009) 203-213.

DOI: 10.1007/s11440-009-0091-6

[4] D. Hirakawa, Study on residual deformation characteristics of geosynthetic-reinforced soil structures, Ph.D. Thesis, The University of Tokyo, 2003. (in Japanese)

[5] H. Di Benedetto, F. Tatsuoka, M. Ishihara, Time-dependent shear deformation characteristics of sand and their constitutive modeling, Soils Found. 42(2) (2002) 1-22.

DOI: 10.3208/sandf.42.2_1

[6] F. Tatsuoka, M. Ishihara, H. Di Benedetto, R. Kuwano, Time-dependent shear deformation characteristics of geo-materials and their simulation, Soils Found. 42(2) (2002) 103-129.

DOI: 10.3208/sandf.42.2_103

[7] E. Hoque, F. Tatsuoka, Anisotropy in the elastic deformation of materials, Soils Found. 38(1) (1998) 163-179.

DOI: 10.3208/sandf.38.163

[8] D. Hirakawa, W. Kongkitkul, F. Tatsuoka, T. Uchimura, Time-dependent stress-strain behaviour due to viscous properties of geogrid reinforcement, Geosynth. Int. 10(6) (2003) 176-199.

DOI: 10.1680/gein.2003.10.6.176

[9] F.L. Peng, M.S.A. Siddiquee, F. Tatsuoka, S.J.M. Yasin, T. Tanaka, Strain energy-based elasto-viscolastic constitutive modeling of sand for numerical simulation, Soils Found. 49(4) (2009) 611-629.

DOI: 10.3208/sandf.49.611
