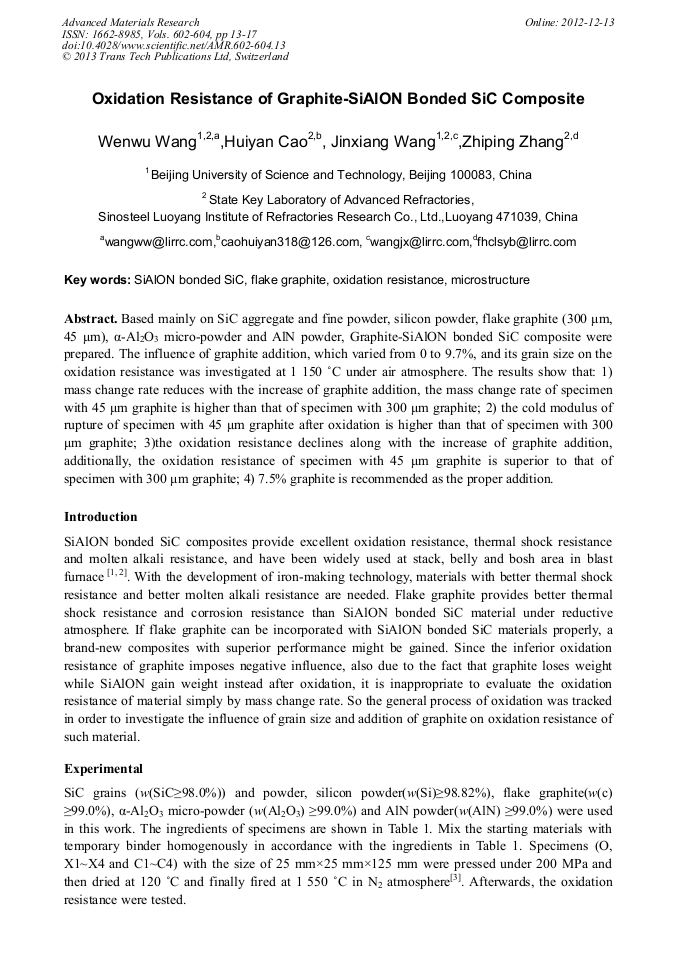

Oxidation Resistance of Graphite-SiAlON Bonded SiC Composite

Abstract:

Based mainly on SiC aggregate and fine powder, silicon powder, flake graphite (300 μm, 45 μm), α-Al₂O₃ micro-powder and AlN powder, Graphite-SiAlON bonded SiC composite were prepared. The influence of graphite addition, which varied from 0 to 9.7%, and its grain size on the oxidation resistance was investigated at 1 150 °C under air atmosphere. The results show that: 1) mass change rate reduces with the increase of graphite addition, the mass change rate of sample with 45 μm graphite is higher than that of sample with 300 μm graphite; 2) the cold modulus of rupture of sample with 45 μm graphite after oxidation is higher than that of sample with 300 μm graphite; 3)the oxidation resistance declines along with the increase of graphite addition, additionally, the oxidation resistance of sample with 45 μm graphite is superior to that of sample with 300 μm graphite; 4) 7.5% graphite is recommended as the proper addition.

• Periodical: Advanced Materials Research (Volumes 602-604)
• Pages: 13-17
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.602-604.13
• Online since: December 2012
• Authors: Wen Wu Wang, Hui Yan Cao, Jin Xiang Wang, Zhi Ping Zhang
• Keywords: Flake Graphite, Microstructure, Oxidation Resistance, SiAlON bonded SiC

References

[1] Pengli Dong, Xidong Wang, Mei Zhang, etc: Refratories, vol. 40 (2006), pp.110-113(In Chinese)

[2] Zhaohui Huang, Jialin Sun, Jinxiang Wang, etc: Refratories, vol. 35 (2001), pp.125-127,130(In Chinese)

[3] Wenwu Wang, Huiyan Cao, Jinxiang Wang, etc. Advanced Materials Research, Vol. 535-537 (2012), pp.169-173

[4] Weidong Yue, Xiangchong Zhong. Refractories, vol. 41(2007), pp.93-96(In Chinese)

[5] Xiaoyan Peng, Lin Li, Zhiyong He. Refractories, vol.39(2005), pp.337-340(In Chinese)
