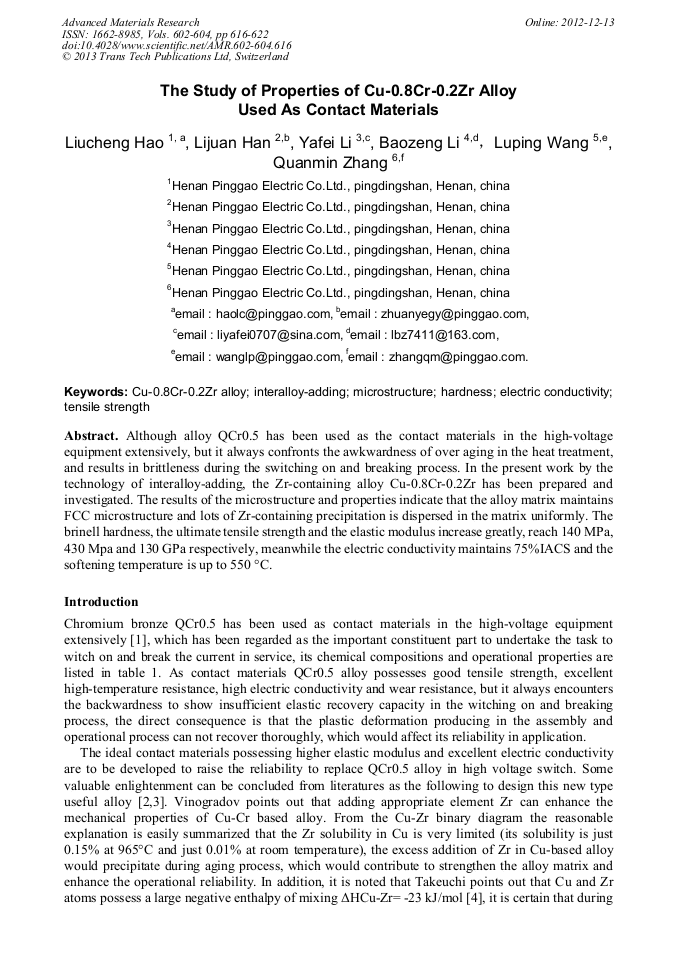

The Study of Properties of Cu-0.8Cr-0.2Zr Alloy Used as Contact Materials

Abstract:

Although alloy QCr0.5 has been used as the contact materials in the high-voltage equipment extensively, but it always confronts the awkwardness of over aging in the heat treatment, and results in brittleness during the switching on and breaking process. In the present work by the technology of interalloy-adding, the Zr-containing alloy Cu-0.8Cr-0.2Zr has been prepared and investigated. The results of the microstructure and properties indicate that the alloy matrix maintains FCC microstructure and lots of Zr-containing precipitation is dispersed in the matrix uniformly. The brinell hardness, the ultimate tensile strength and the elastic modulus increase greatly, reach 140 MPa, 430 Mpa and 130 GPa respectively, meanwhile the electric conductivity maintains 75%IACS and the softening temperature is up to 550 °C.

• Periodical: Advanced Materials Research (Volumes 602-604)
• Pages: 616-622
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.602-604.616
• Online since: December 2012
• Authors: Liu Cheng Hao, Li Juan Han, Ya Fei Li, Bao Zeng Li, Lu Ping Wang, Quan Min Zhang
• Keywords: Conductivity, Cu-0.8Cr-0.2Zr Alloy, Electric, Hardness, Interalloy-Adding, Microstructure, Tensile Strength

References

[1] Y.J Wang, Z.F Li, et al. The development situation of electrical contact materials, The academic seminar collection of the twelfth Chinese nonferrous metal materials science and alloy processing technology [C] (2007) 132-138. (In chinese)

[2] Q.H Ye, P Liu. Review of high-strength and high-conductivity Cu-Cr-Zr alloys [J], Journal of Henan University of Science and Technology 26(5) (2005) 1-4. (In chinese)

[3] A Vinogradov, V Patlan, et al. Structure and properties of ultra-fine grain Cu-Cr-Zr alloy produced by equal-channel angular pressing [J], Acta Materialia 50(7) (2002) 1639-1651.

DOI: 10.1016/s1359-6454(01)00437-2

[4] A Takeuchi, A Inoue. Classification of bulk metallic glasses by atomic size difference, heat of mixing and period of constituent elements and its application to characterization of the main alloying element, Materials Transactions 46 (2005) 2817-2829.

DOI: 10.2320/matertrans.46.2817

[5] S.Y Zhang The latest metal speed manual of the performance-application and comparison of Chinese and foreign brands [M]. Chinese Science and Technology Press (2005) 1036-1164. (In chinese)

[6] B.Z Li, Q. Wang, et al. A ferrite stainless steel Cr27Mo6Al3Cu with oxidation resistance [J]. Materials and Design 40 (2012) 171-175.

DOI: 10.1016/j.matdes.2012.04.006

[7] S R Yeomans, P G McCormick. An investigation of precipitation and strengthening in age-hardening copper-manganese alloys [J]. Materials Science and Engineering 34 (1978) 101-109.

DOI: 10.1016/0025-5416(78)90040-x

[8] M Li, J K Heuer, et al. Fracture behavior of high-strength, high-conductivity copper alloys [J]. Journal of Nuclear Materials 283-287 (2000) 977-981.

DOI: 10.1016/s0022-3115(00)00316-0

[9] W A Soffa, D E Laughlin. High-strength age hardening copper-titanium alloys [J]. Progress in Material Science 49 (2004) 347-366.

DOI: 10.1016/s0079-6425(03)00029-x

[10] Su Juanhua. Dong Qiming. et al. Research on aging precipitation in a Cu-Cr-Zr-Mg alloy [J]. Materials Science and Engineering A. 392 (2005) 422-426.

DOI: 10.1016/j.msea.2004.09.041
