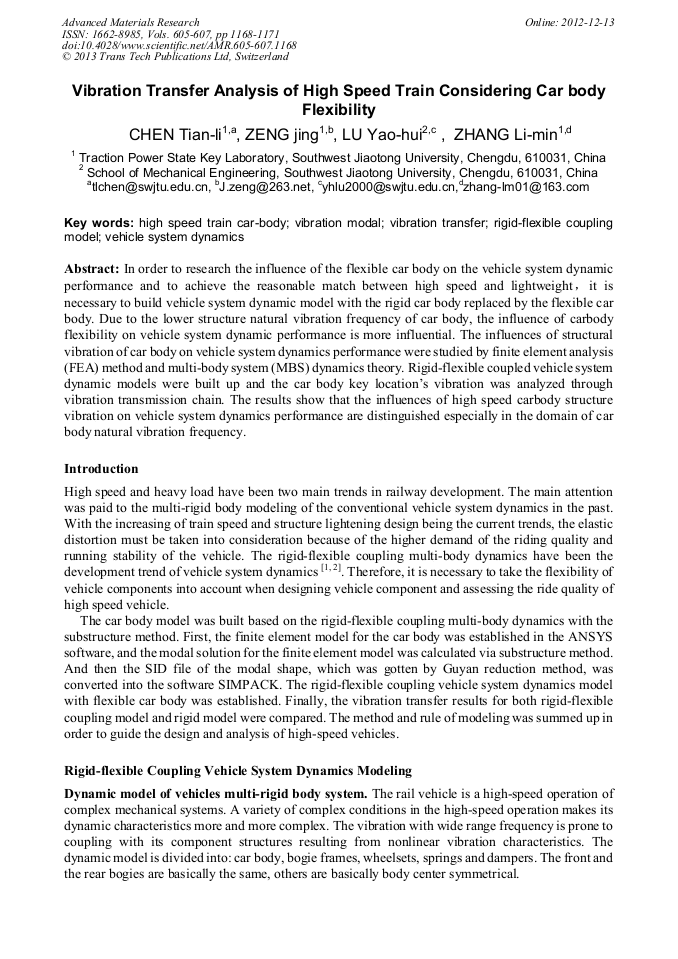

Vibration Transfer Analysis of High Speed Train Considering Car body Flexibility

Abstract:

In order to research the influence of the flexible car body on the vehicle system dynamic performance and to achieve the reasonable match between high speed and lightweight，it is necessary to build vehicle system dynamic model with the rigid car body replaced by the flexible car body. Due to the lower structure natural vibration frequency of car body, the influence of carbody flexibility on vehicle system dynamic performance is more influential. The influences of structural vibration of car body on vehicle system dynamics performance were studied by finite element analysis (FEA) method and multi-body system (MBS) dynamics theory. Rigid-flexible coupled vehicle system dynamic models were built up and the car body key location’s vibration was analyzed through vibration transmission chain. The results show that the influences of high speed carbody structure vibration on vehicle system dynamics performance are distinguished especially in the domain of car body natural vibration frequency.

• Periodical: Advanced Materials Research (Volumes 605-607)
• Pages: 1168-1171
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.605-607.1168
• Online since: December 2012
• Authors: Tian Li Chen, Jing Zeng, Yao Hui Lu, Li Min Zhang
• Keywords: High Speed Train Car-Body, Rigid-Flexible Coupling Model, Vehicle System Dynamics, Vibration Modal, Vibration Transfer

References

[1] LMS International. LMS CADA-X Transfer path analysis Tu-torial.Revision 3.4.1997.

[2] Yaohui Lu. The Study on Carbody Lightening Problems for Railway Speed up Passenger Cars [D]. Chengdu: Southwest Jiaotong University, 2003 (In Chinese).

[3] R. D. Krishna, J. Z. Frederick, and U. H. Shan. Application of noisepath target setting using the technique of transfer path analysis. SAE Paper 2003-01-1402, 2003.

[4] Antonio V, Herman V A, Peter K, etal. Experimental transfer path analysis of a hybrid bus. SAE Paper 2005 -01-2335, 2005.

[5] Long Yan, SHI Wen-ku, LIANG Tian-ye, ZHOU zhou. Identification of Powertrain Rigid Body Properties Based on Operation Modal Method .SAE 2009 -01-2761. .

DOI: 10.4271/2009-01-2761

[6] Z. L. Peng, Z. Q. Lang, G. Meng and C. M. Cheng. Journal of Dynamics and Control. Vol.9.No.3,P.2. 2011.

[7] W. Y. Wang, X. X. Jin, W. Peng, H. Guo and Y. L. Yin: Structural Transfer Path Analysis of tire Vibration and Noise, Vol 29, No 3.P.89. 2010.

[8] X. D. Zhang, R. B. Wang, Z. K. Zhang and X. F. Jiao: Stochastic Evolution Model of a Neuronal Oscillator Population with higher Order Coupling, Vol.29, No.1.P13. 2010.

[9] Y. F. Li and J. H. Lin: Vibration Transmission Analysis Based on Higher Order Spectrum,Vol.31, No.1. P.1. 2011.
