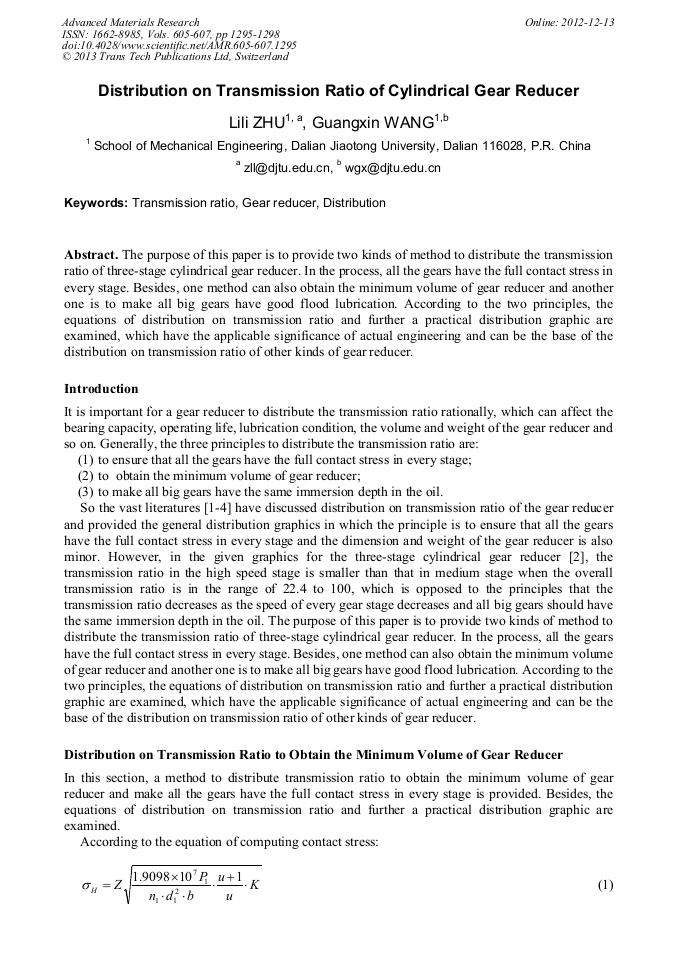

Distribution on Transmission Ratio of Cylindrical Gear Reducer

Abstract:

The purpose of this paper is to provide two kinds of method to distribute the transmission ratio of three-stage cylindrical gear reducer. In the process, all the gears have the full contact stress in every stage. Besides, one method can also obtain the minimum volume of gear reducer and another one is to make all big gears have good flood lubrication. According to the two principles, the equations of distribution on transmission ratio and further a practical distribution graphic are examined, which have the applicable significance of actual engineering and can be the base of the distribution on transmission ratio of other kinds of gear reducer.
