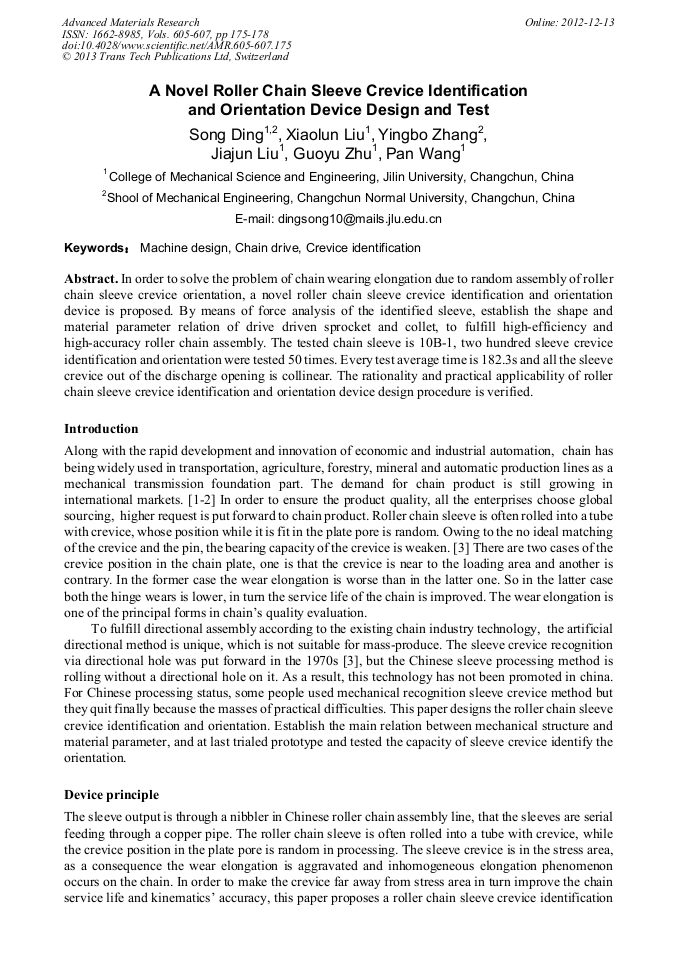

A Novel Roller Chain Sleeve Crevice Identification and Orientation Device Design and Test

Abstract:

In order to solve the problem of chain wearing elongation due to random assembly of roller chain sleeve crevice orientation, a novel roller chain sleeve crevice identification and orientation device is proposed. By means of force analysis of the identified sleeve, establish the shape and material parameter relation of drive driven sprocket and collet, to fulfill high-efficiency and high-accuracy roller chain assembly. The tested chain sleeve is 10B-1, two hundred sleeve crevice identification and orientation were tested 50 times. Every test average time is 182.3s and all the sleeve crevice out of the discharge opening is collinear. The rationality and practical applicability of roller chain sleeve crevice identification and orientation device design procedure is verified.

• Periodical: Advanced Materials Research (Volumes 605-607)
• Pages: 175-178
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.605-607.175
• Online since: December 2012
• Authors: Song Ding, Xiao Lun Liu, Ying Bo Zhang, Jia Jun Liu, Guo Yu Zhu, Pan Wang
• Keywords: Chain Drive, Crevice Identification, Machine Design

References

[1] Xiaolun Liu, Song Ding, etc. Advanced Materials Research. 2011, V291-294.

[2] Xiaolun Liu, etc. International Conference on Management Science and Intelligent Control. (2011).

[3] Yangyang Hua. Jilin University. (2011).

[4] Zhilun Xu. The second edition, in Beijing: People's Education Press. (1983).
