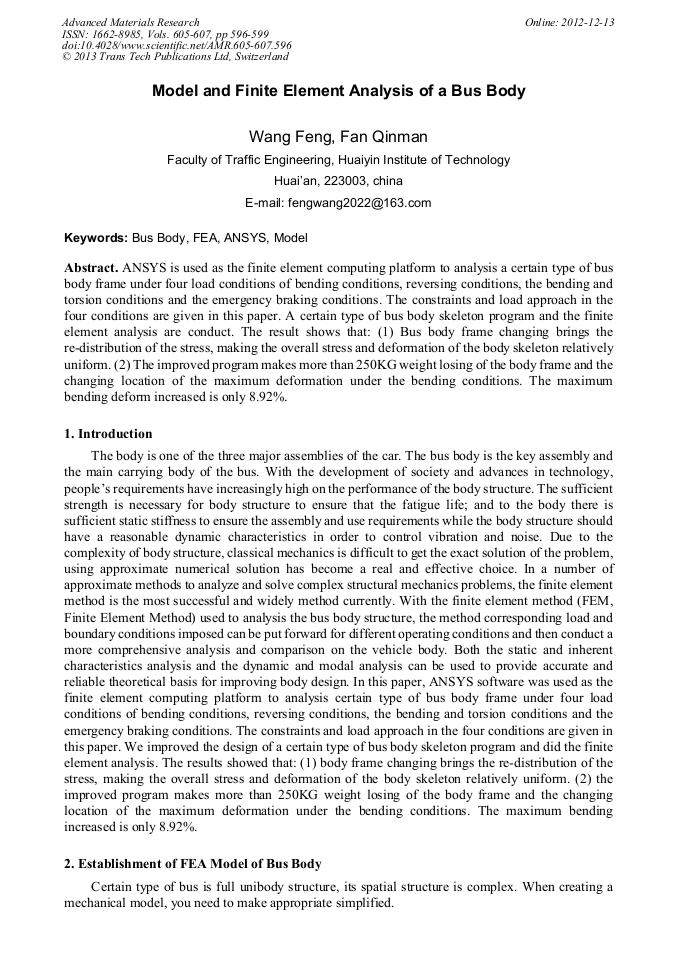

Model and Finite Element Analysis of a Bus Body

Abstract:

ANSYS is used as the finite element computing platform to analysis a certain type of bus body frame under four load conditions of bending conditions, reversing conditions, the bending and torsion conditions and the emergency braking conditions. The constraints and load approach in the four conditions are given in this paper. A certain type of bus body skeleton program and the finite element analysis are conduct. The result shows that: (1) Bus body frame changing brings the re-distribution of the stress, making the overall stress and deformation of the body skeleton relatively uniform. (2) The improved program makes more than 250KG weight losing of the body frame and the changing location of the maximum deformation under the bending conditions. The maximum bending deform increased is only 8.92%.

• Periodical: Advanced Materials Research (Volumes 605-607)
• Pages: 596-599
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.605-607.596
• Online since: December 2012
• Authors: Feng Wang*, Qin Man Fan
• Keywords: ANSYS, Bus Body, Finite Element Analysis (FEA), Model

References

[1] Kim D, Kim H. Vehicle stability control with regenerative braking and electronic brake force distribution for a four-wheel drive hybrid electric vehicle .Proc Instn Mech Engrs, Part D:J Automobile Engineering, 2006, vol220 (6), pp.683-693.

DOI: 10.1243/09544070d00605

[2] Y.GAO,and E.MEHRDAD lectronic Braking Systemof EV and HEV-Integration of Regenerative Braking .Automatic Braking Force Control and ABS,SAE(2011),pp.2478-2481

DOI: 10.4271/2001-01-2478

[3] Hoon Yeo,Sungho Hwang, Hyunsoo Kim. Regenerative braking algorithm for a hybrid electric vehicle with CVT ratio control .Proceedings of the Institution of Mechanical Engineers, 2006, vol220 (11), pp.1589-1600.

DOI: 10.1243/09544070jauto304
