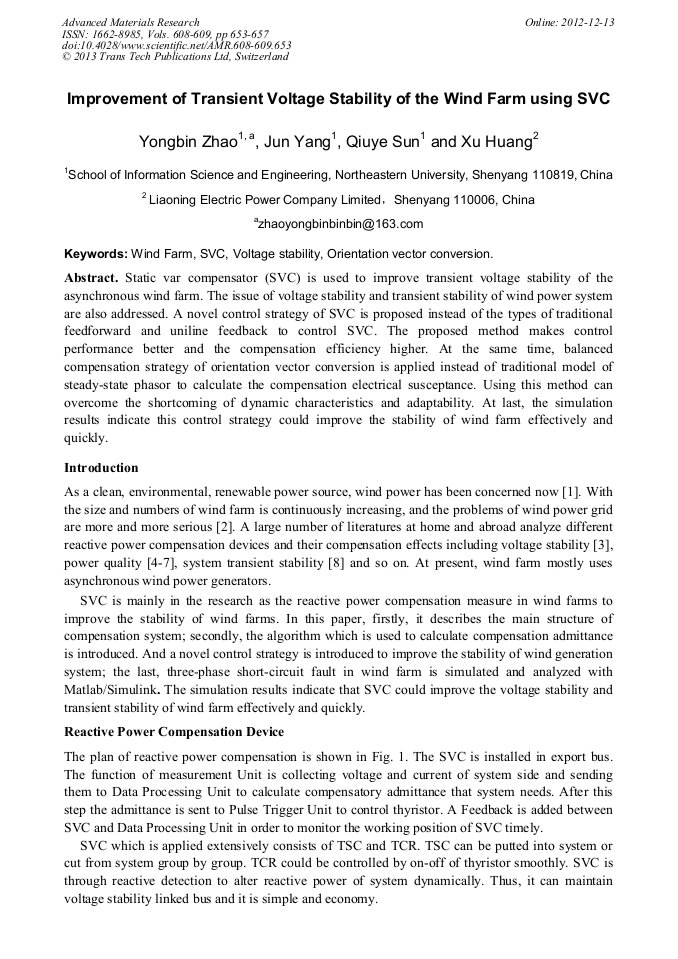

Improvement of Transient Voltage Stability of the Wind Farm Using SVC

Abstract:

Static var compensator (SVC) is used to improve transient voltage stability of the asynchronous wind farm. The issue of voltage stability and transient stability of wind power system are also addressed. A novel control strategy of SVC is proposed instead of the types of traditional feedforward and uniline feedback to control SVC. The proposed method makes control performance better and the compensation efficiency higher. At the same time, balanced compensation strategy of orientation vector conversion is applied instead of traditional model of steady-state phasor to calculate the compensation electrical susceptance. Using this method can overcome the shortcoming of dynamic characteristics and adaptability. At last, the simulation results indicate this control strategy could improve the stability of wind farm effectively and quickly.

• Periodical: Advanced Materials Research (Volumes 608-609)
• Pages: 653-657
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.608-609.653
• Online since: December 2012
• Authors: Yong Bin Zhao, Jun Yang, Qiu Ye Sun, Xu Huang
• Keywords: Orientation Vector Conversion, Svc, Voltage Stability, Wind Farm

References

[1] S.M. Shinde, K.D. Patil and W.Z. Gandhare: Dynamic Compensation of Reactive Power for Integration of Wind Power in a Weak Distribution Network, in IEEE International Conference on Control, Automation, Communication and Energy Conservation, pp.1-6, 2009.

[2] Yanhua Liu, Xu Zhang, Dongmei Zhao and Min Ma: Research on the Wind Farm Reactive Power Compensation Capacity and Control Target, in IEEE Asia-Pacific Conference on Power and Energy Engineering, pp.1-5, 2011.

DOI: 10.1109/appeec.2011.5748514

[3] M. Eidiani, Y. Ashkhane and M. Khederzadeh: Reactive Power Compensation in Order to Improve Static Voltage Stability in a Network with Wind Generation, in IEEE International Conference on Computer and Electrical Engineering, pp.47-50, 2009.

DOI: 10.1109/iccee.2009.239

[4] M. EL-Shimy, M.A. L Badr and O.M. RASSEM: Impact of Large Scale Wind Power on Power System Stability, in IEEE International Middle-East Conference on Power system, pp.630-636, 2008.

DOI: 10.1109/mepcon.2008.4562365

[5] Hua Zhou, Hongfen Wei, Xiaoyan Qiu, Jian Xu, Xiwen Wei and Song Wang: Improvement of Transient Voltage Stability of the Wind Farm Using SVC and TCSC, in IEEE Asia-Pacific Conference on Power and Energy Engineering(APPEEC), pp.1-4, 2011.

DOI: 10.1109/appeec.2011.5749161

[6] P.N. Boonchiam, A. Sode-Yome, N. Mithulananthan and K. Aodsup: Voltage Stability in Power Network when connected Wind Farm Generators, in IEEE International Conference on Power Electronics and Drive Systems, pp.655-660, 2009.

DOI: 10.1109/peds.2009.5385909

[7] A. Ozturk and K. Dosoglu: Investiqation of the Control Voltage and Reactive Power in Wind Farm Load Bus by Statcom and SVC, in IEEE International Conference on Electrical and Electronics Engineering, PP. 60-64, 2009.

[8] T.P. Sunil and N. Loganathan: Power Quality Improvement of a Grid-Connected Wind Energy Conversion System with Harmonics Reduction Using FACTS Device, in IEEE International Conference on Advances in Engineering, Science and Management(ICAESM), pp.415-420, 2012.
