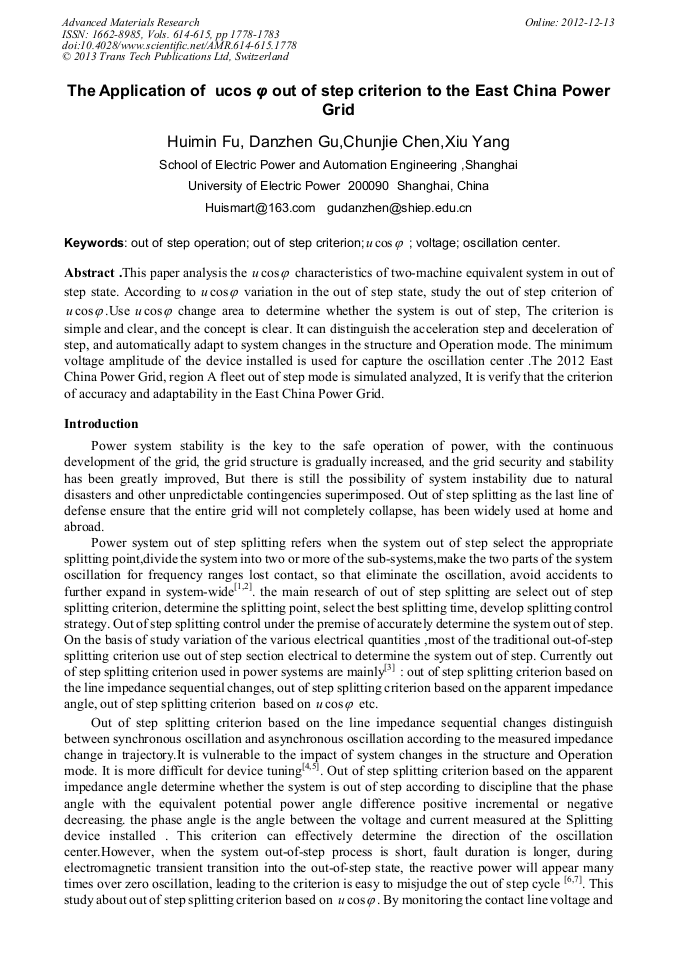

The Application of Ucosφ Out of Step Criterion to the East China Power Grid

Abstract:

This paper analysis the characteristics of two-machine equivalent system in out of step state. According to variation in the out of step state, study the out of step criterion of .Use change area to determine whether the system is out of step, The criterion is simple and clear, and the concept is clear. It can distinguish the acceleration step and deceleration of step, and automatically adapt to system changes in the structure and Operation mode. The minimum voltage amplitude of the device installed is used for capture the oscillation center .The 2012 East China Power Grid, region A fleet out of step mode is simulated analyzed, It is verify that the criterion of accuracy and adaptability in the East China Power Grid.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 1778-1783
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.1778
• Online since: December 2012
• Authors: Hui Min Fu, Dan Zhen Gu, Chun Jie Chen, Xiu Yang
• Keywords: Oscillation Center, Out of Step Criterion, Out of Step Operation, u cos φ, Voltage

References

[1] Peng Gao，Jianquan Wang，Deqiang Gan，Zhenxiang Han. Power system step Separation Summary [J]. AUTOMATION OF ELECTRIC POWER SYSTEMS，2005，29(19)：90-96. (In Chinese)

[2] Jixiu Yuan. The third line of defense to prevent the emergency control of power system blackouts - safe and stable operation of power systems.POWERSYSTEM TECHNOLOGY，1999，23(4): l-4. (In Chinese)

[3] Xuan Dong. Study for out of step splitting of large interconnected grid [M]. Nanjing University of Science and Technology，2007. (In Chinese)

[4] Taylor C W, Haner J M，et al.A new out-of-step relay with the rate of resistance augmentation[J]. IEEE Trans on Power Apparatus ans Systems，PAS-102,1983,3:631-639.

DOI: 10.1109/tpas.1983.317984

[5] Xiaopeng Lei. Study and Analysis for out of step splitting of large interconnected power system [M].XiAn：]Xi'an University of Technology，2008，3. (In Chinese)

[6] Peng Gao，Jianquan Wang，Wenping Zhou. The improvement of apparent impedance Out of step splitting criterion [J]. AUTOMATION OF ELECTRIC POWER SYSTEMS，2004，28(24): 36-42. (In Chinese)

[7] Baohui Zhang，Yigang Zhang，Haitao Liu. Principle study of Separation Device based on the local amount of oscillation [J].Proceedings of CSEE，2001,21（12）：67-72. (In Chinese)

[8] Xijian Dong，Jie Zhao，Chao Ling，Xueming Li，Huijun Li，Zhengqin Zhang，Qianyin Zhang. Mechanism of Oscillation splitting criterion based on the principle of phase angle [J].Power System Protection and Control，2010，38（7）：1-6. (In Chinese)

[9] Yongzheng Sui.Power System coherency identification method [J]. Heilongjiang Electric Power Technology，1997，19（6）：325-327. (In Chinese)

[10] Hongliang Zong，Zuyi Ren，Yuping Zheng，Xuejian Shao，Guanghui Sun，Guorong Shen. Out of step Separation Device baseed on [J]. AUTOMATION OF ELECTRIC POWER SYSTEMS，2003，27 (19)：83-86. (In Chinese)

[11] Jin Fan. Study on the power system out of step splitting [J]. Journal of Xi'an Institute of Posts and Telecommunications，2011.16（3）：56-61. (In Chinese)

[12] Lixiao Yao，Xiaopeng Lei，Jie Yang，Bo Ning，Zhenfeng Liang. Variation of the electrical quantities in the power system asynchronous run state [J].Power System and Clean Energy，2008, 24（1）：35-40. (In Chinese)

[13] Xuan Dong. Study for out of step splitting of large interconnected grid [M]. Nanjing University of Science and Technology,2007.(In Chinese)
