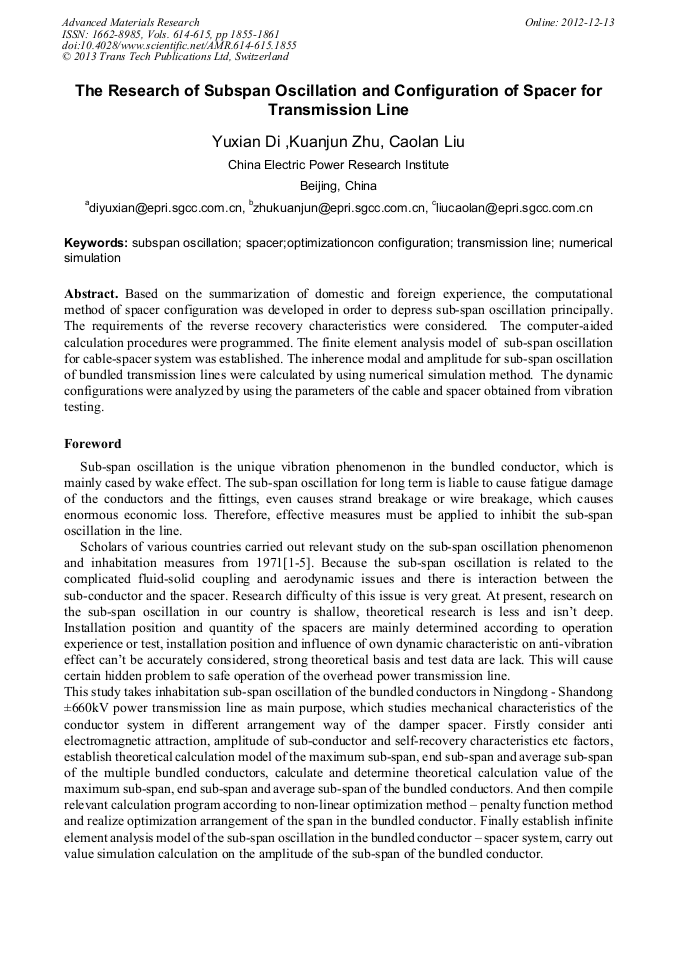

The Research of Subspan Oscillation and Configuration of Spacer for Transmission Line

Abstract:

Based on the summarization of domestic and foreign experience, the computational method of spacer configuration was developed in order to depress sub-span oscillation principally. The requirements of the reverse recovery characteristics were considered. The computer-aided calculation procedures were programmed. The finite element analysis model of sub-span oscillation for cable-spacer system was established. The inherence modal and amplitude for sub-span oscillation of bundled transmission lines were calculated by using numerical simulation method. The dynamic configurations were analyzed by using the parameters of the cable and spacer obtained from vibration testing.

• Periodical: Advanced Materials Research (Volumes 614-615)
• Pages: 1855-1861
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.614-615.1855
• Online since: December 2012
• Authors: Yu Xian Di, Kuan Jun Zhu, Cao Lan Liu
• Keywords: Numerical Simulation, Optimizationcon Configuration, Spacer, Subspan Oscillation, Transmission Line

References

[1] Gao Xuan, Optimum theory and practice of cable – spacer system, China Power, 1993（03）: 15-20

[2] Huang Jingya, Sub-span oscillation and protection countermeasure of bundled cable, Middle China Power, 1989，（03:47-53）

[3] D.Heamshaw，optimization of system performance for spacer dampers.In:IEEE Paper A75,1975:496-501

[4] Hardy C, Bourdon P. The influence of spacer dynamic properties in the control of bundle conductor motion IEEE Transactions on Power Apparatus and Systems.1980, PAS-99(2): 790-796

DOI: 10.1109/tpas.1980.319687

[5] Lilien J.-L., Snegovski D. Wake-induced vibration in power transmission line. Parametric study. Flow Induced Vibration,de Langre & Axisa ed. (2004)
