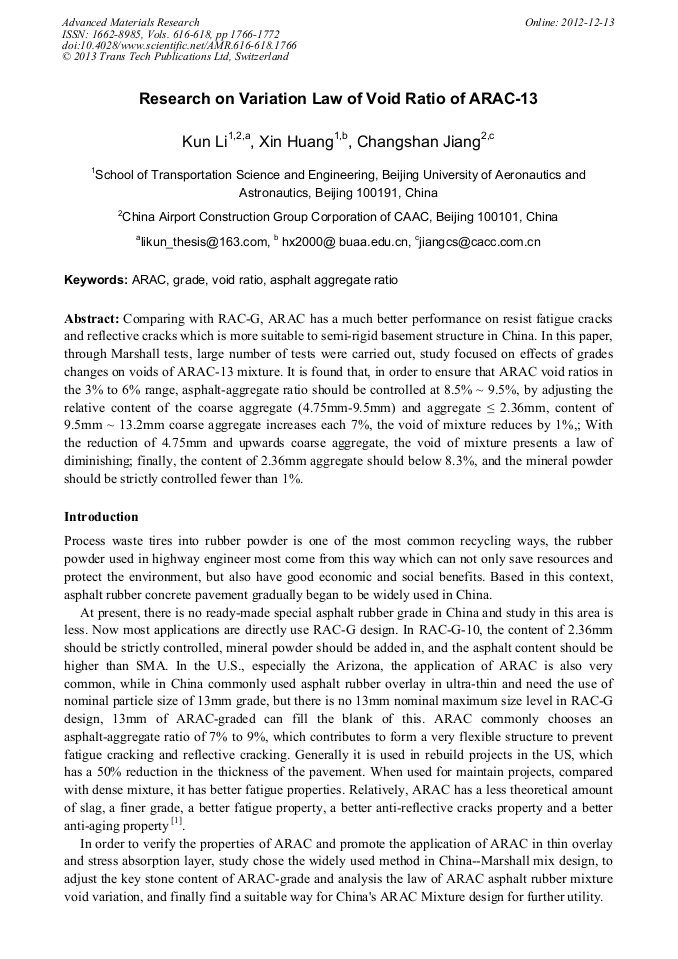

Research on Variation Law of Void Ratio of ARAC-13

Abstract:

Comparing with RAC-G, ARAC has a much better performance on resist fatigue cracks and reflective cracks which is more suitable to semi-rigid basement structure in China. In this paper, through Marshall tests, large number of tests were carried out, study focused on effects of grades changes on voids of ARAC-13 mixture. It is found that, in order to ensure that ARAC void ratios in the 3% to 6% range, asphalt-aggregate ratio should be controlled at 8.5% ~ 9.5%, by adjusting the relative content of the coarse aggregate (4.75mm-9.5mm) and aggregate ≤ 2.36mm, content of 9.5mm ~ 13.2mm coarse aggregate increases each 7%, the void of mixture reduces by 1%,; With the reduction of 4.75mm and upwards coarse aggregate, the void of mixture presents a law of diminishing; finally, the content of 2.36mm aggregate should below 8.3%, and the mineral powder should be strictly controlled fewer than 1%.

You might also be interested in these eBooks

Sustainable Development of Natural Resources

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 616-618)

Pages:

1766-1772

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.616-618.1766

Citation:

Cite this paper

Online since:

December 2012

Authors:

Kun Li*, Xin Huang, Chang Shan Jiang

Keywords:

ARAC, Asphalt Aggregate Ratio, Grade, Void Ratio

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Gene R. Morris, Douglas D. Carlson. The Arizona Asphalt-Rubber Project Review [M]. Arizona Department of Transportation and the Rubber Pavements Association. AZ.US.(2003)

Google Scholar

[2] JTG E42-2005, Test Methods of Aggregates for Highway Engineering[S] 2005. In Chinese

Google Scholar

[3] JTJ052-2000, Standard Test Method of Bitumen and Bituminous Mixtures for Highway Engineering[S].2000, In Chinese

Google Scholar

[4] JTJ F40-2004. Technical Specification for Construction of Highway Asphalt Pavements [S].2004, In Chinese

Google Scholar

[5] Wang Xudong. Technologies of Asphalt Rubber and Asphalt Rubber Mixtures[M]. People's Traffic Express, 2008, In Chinese

Google Scholar

[6] Vavrik W R, Pine W J , Huber G, Carpenter S H, Baliey R. The Bailey Method of Gradation Evaluation: The Influence of Aggregate Gradation and Packing Characteristics on Voids in the Mineral Aggregate[J]. AAPT. 2001.1701

Google Scholar
