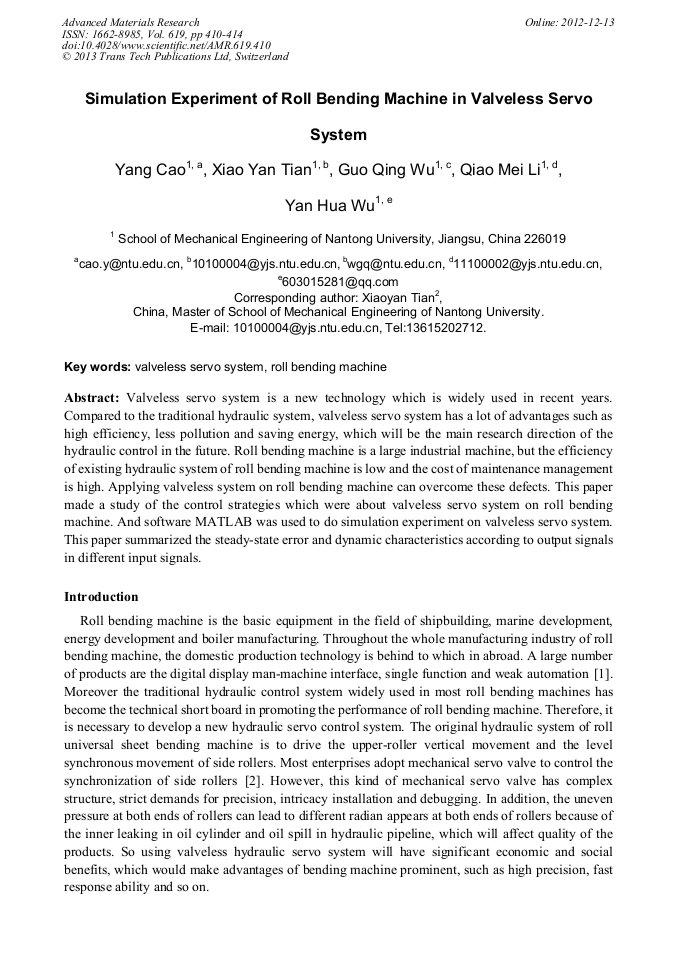

Simulation Experiment of Roll Bending Machine in Valveless Servo System

Abstract:

Valveless servo system is a new technology which is widely used in recent years. Compared to the traditional hydraulic system, valveless servo system has a lot of advantages such as high efficiency, less pollution and saving energy, which will be the main research direction of the hydraulic control in the future. Roll bending machine is a large industrial machine, but the efficiency of existing hydraulic system of roll bending machine is low and the cost of maintenance management is high. Applying valveless system on roll bending machine can overcome these defects. This paper made a study of the control strategies which were about valveless servo system on roll bending machine. And software MATLAB was used to do simulation experiment on valveless servo system. This paper summarized the steady-state error and dynamic characteristics according to output signals in different input signals.

• Periodical: Advanced Materials Research (Volume 619)
• Pages: 410-414
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.619.410
• Online since: December 2012
• Authors: Yang Cao, Xiao Yan Tian, Guo Qing Wu, Qiao Mei Li, Yan Hua Wu
• Keywords: Roll Bending Machine, Valveless Servo System

References

[1] Gao Yaodong, He Xue. Dynamic Simulation Research for the Plate Bending Process of Bending Machine [J]. China Heavy Equipment. 2010, (2): 3~7. (In Chinese).

[2] Song Yalin. Technique Improvement of the Three Roller Bending Machine Hydraulic Synchronous Circuit[J]. Chinese Hydraulics & Pneumatics. 2009, (10): 74~75. (In Chinese).

[3] Anna Iwaniec Hickerson, Derek Rinderknecht, Morteza Gharib. Experimental Study of the Behavior of A Valveless Impedance Pump [J]. Experiments in Fluids, 2005, 38 (4).

DOI: 10.1007/s00348-005-0946-z

[4] Zheng Jian-ming , Zhao Sheng-dun, Wei Shu-guo. Application of Self-tuning Fuzzy PID Controller for A SRM Direct Drive Volume Control Hydraulic Press [J]. Control Engineering Practice, 2009, (17) : 1~7.

DOI: 10.1016/j.conengprac.2009.07.001

[5] Christopher Williamson, Prof. Monika Ivantysynova. Pump Mode Prediction for Four-quadrant Velocity Control of Valveless Hydraulic Actuators [J]. Symposium on Fluid Power, 2008, (7): 323~328.

DOI: 10.5739/isfp.2008.323

[6] Guo Jianyu, Feng Gang. Valveless Electro-hydraulic Servo System [J]. Light Industry Machinery. 2005, (4): 117~120. (In Chinese).

[7] Bastian Eggers, Robert Rahmfeld. An Energetic Comparison Between Valveless and Valve Controlled Active Vibration Damping for Off-Road Vehicles [J]. Symposium on Power. 2005, (11): 7~10.

DOI: 10.5739/isfp.2005.275

[8] Longke Wang, Wayne J. Book and James D. Huggins. Application of Singular Perturbation Theory to Hydraulic Pump Controlled Systems [J]. IEEE/ASME Transactions on Mechatronics, 2012, 17 (2): 251~259.

DOI: 10.1109/tmech.2010.2096230
