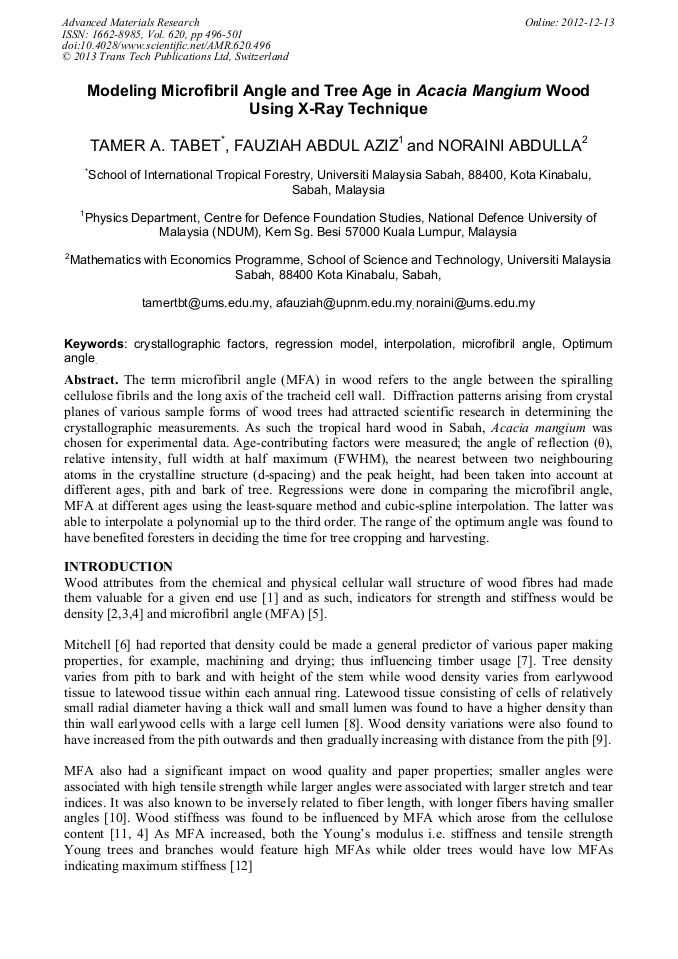

Modeling Microfibril Angle and Tree Age in Acacia mangium Wood Using X-Ray Technique

Abstract:

The term microfibril angle (MFA) in wood refers to the angle between the spiralling cellulose fibrils and the long axis of the tracheid cell wall. Diffraction patterns arising from crystal planes of various sample forms of wood trees had attracted scientific research in determining the crystallographic measurements. As such the tropical hard wood in Sabah, Acacia mangium was chosen for experimental data. Age-contributing factors were measured; the angle of reflection (θ), relative intensity, full width at half maximum (FWHM), the nearest between two neighbouring atoms in the crystalline structure (d-spacing) and the peak height, had been taken into account at different ages, pith and bark of tree. Regressions were done in comparing the microfibril angle, MFA at different ages using the least-square method and cubic-spline interpolation. The latter was able to interpolate a polynomial up to the third order. The range of the optimum angle was found to have benefited foresters in deciding the time for tree cropping and harvesting.

• Periodical: Advanced Materials Research (Volume 620)
• Pages: 496-501
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.620.496
• Online since: December 2012
• Authors: Tabet A. Tamer, Fauziah Abdul Aziz, Noraini Abdulla
• Keywords: Crystallographic Factors, Interpolation, Microfibril Angle, Optimum Angle, Regression Model

References

[1] L.A. Jozsaand and G. R Middleton: Canada special publication No. SP-34 (1994).

[2] G.K. Elliot: Technical Communication No. 8, Commonwealth Forestry Bureau: Oxford, England (1970).

[3] Anon: The Encyclopaedia Of Wood. Sterling publishing Co., Inc. New York (1980).

[4] I.D. Cave and J.F.C. Walker: Forest Product Journal. Vol. 44(5) (1994), pp.43-48.

[5] Addis, Tsehaye, A.H. Buchanan and J.C.F. Walker: Journal of Institute of Wood Science Vol. 13(5) (1995), pp.513-518.

[6] H.L. Mitchell and M.P. Denne: Forestry Vol. 70(1) (1997).

[7] J.D. Brazier and R.S. Howell: Forestry Vol. 52(2) (1979), pp.177-185.

[8] J.G. Haygreenand and J.L. Bowyer: Forest Product and Wood Science (An Introduction). 3rd Edition (1996), p.490.

[9] J.A. Petty, D.C. Macmillan and C.M. Steward 1990: Forestry Vol. 63(1), pp.39-49.

[10] L.A. Donaldson: New Zealand Journal of Forestry Science. Vol. 25(2) (1993), pp.164-174.

[11] J.C.F. Walker and B.G. Butterfield: New Zealand Forestry (1996) 34-40.

[12] M. Treacy, J. Evertsen and Á.N. Dhubháin: A Comparison of Mechanical & Physical Wood Properties of a Range of Sitka spruce Provenances. Processing Products No. 1 Extract from Coford final report publication. Coford, Diblin, Ireland (2001).
