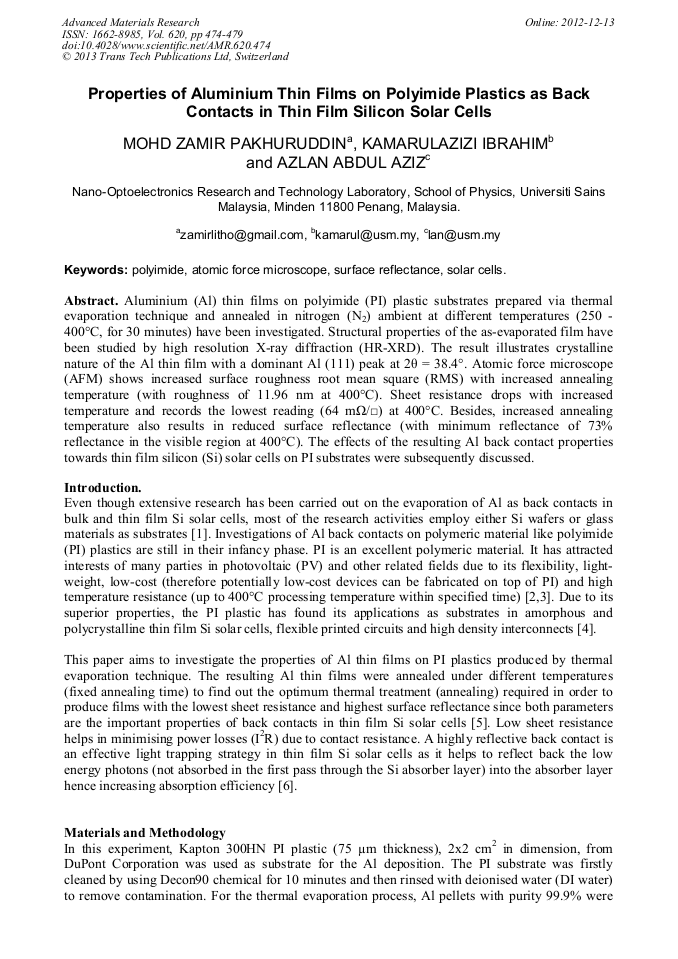

Properties of Aluminium Thin Films on Polyimide Plastics as Back Contacts in Thin Film Silicon Solar Cells

Abstract:

Aluminium (Al) thin films on polyimide (PI) plastic substrates prepared via thermal evaporation technique and annealed in nitrogen (N₂) ambient at different temperatures (250 - 400°C, for 30 minutes) have been investigated. Structural properties of the as-evaporated film have been studied by high resolution X-ray diffraction (HR-XRD). The result illustrates crystalline nature of the Al thin film with a dominant Al (111) peak at 2θ = 38.4°. Atomic force microscope (AFM) shows increased surface roughness root mean square (RMS) with increased annealing temperature (with roughness of 11.96 nm at 400°C). Sheet resistance drops with increased temperature and records the lowest reading (64 mΩ/) at 400°C. Besides, increased annealing temperature also results in reduced surface reflectance (with minimum reflectance of 73% reflectance in the visible region at 400°C). The effects of the resulting Al back contact properties towards thin film silicon (Si) solar cells on PI substrates were subsequently discussed.

• Periodical: Advanced Materials Research (Volume 620)
• Pages: 474-479
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.620.474
• Online since: December 2012
• Authors: Mohd Zamir Pakhuruddin, Kamarulazizi Ibrahim, Azlan Abdul Aziz
• Keywords: Atomic Force Microscope (AFM), Polyimide, Solar Cell, Surface Reflectance

References

[1] R.B. Bergmann, G. Oswald, M. Albrecht and V. Gross: Solar Energy Materials & Solar Cells Vol. 46 (1997), pp.147-155.

DOI: 10.1016/s0927-0248(97)00006-8

[2] B. Cui, Y. Cortot and T. Veres: Microelectronic Engineering Vol. 83 (2006), pp.906-909.

[3] J. Lee, J. Kim and B.K. Rhee: Macromolecular Research Vol. 15 (2007), pp.234-237.

[4] K. Otte, L. Makhova, A. Braun and I. Konovalov: Thin Solid Films Vol. 511-512 (2006), pp.613-622.

DOI: 10.1016/j.tsf.2005.11.068

[5] K.L. Chopra, P.D. Paulson and V. Dutta: Progress in Photovoltaics Research & Applications Vol. 12 (2004), pp.69-92.

[6] A.V. Shah, H. Schade, M. Vanecek, J. Meier, E. Vallat-Sauvain, N. Wyrsch, U. Kroll, C. Droz and J. Bailat: Progress in Photovoltaics Research & Applications Vol. 12 (2004), pp.113-142.

DOI: 10.1002/pip.533

[7] O.J. Cain: Thin Solid Films Vol. 2 (1968), pp.479-486.

[8] S. Tamai, T. Kuroki, A. Shibuya and A. Yamaguchi: Polymer Vol. 42 (2001), pp.2373-2378.

[9] A. Selmani: Metallization of Polymers (American Chemical Society, 1990).

[10] Information on http: /www. icdd. com.

[11] J.I. Langford and A.J.C. Wilson: Journal of Applied Crystallography Vol. 11 (1978), pp.102-113.

[12] P. Widenborg, A. Straub and A. Aberle: Journal of Crystal Growth Vol. 276 (2005), pp.19-28.

[13] R.E.I. Schropp and M. Zeman: Amorphous and Microcrystalline Silicon Solar Cells: Modelling, Materials and Device Technology (Kluwer Academic Publishers, Boston 1998).

DOI: 10.1007/978-1-4615-5631-2

[14] P.V. Andrews, M.B. West and C.R. Robeson: Philosophical Magazine Vol. 19 (1969), pp.887-898.

[15] G.P. Smestad: Optoelectronics of Solar Cells (SPIE Press, Washington 2002).

[16] R. Brendel: Thin-Film Crystalline Silicon Solar Cells: Physics and Technology (Wiley-VCH, Erlangen 2001).
