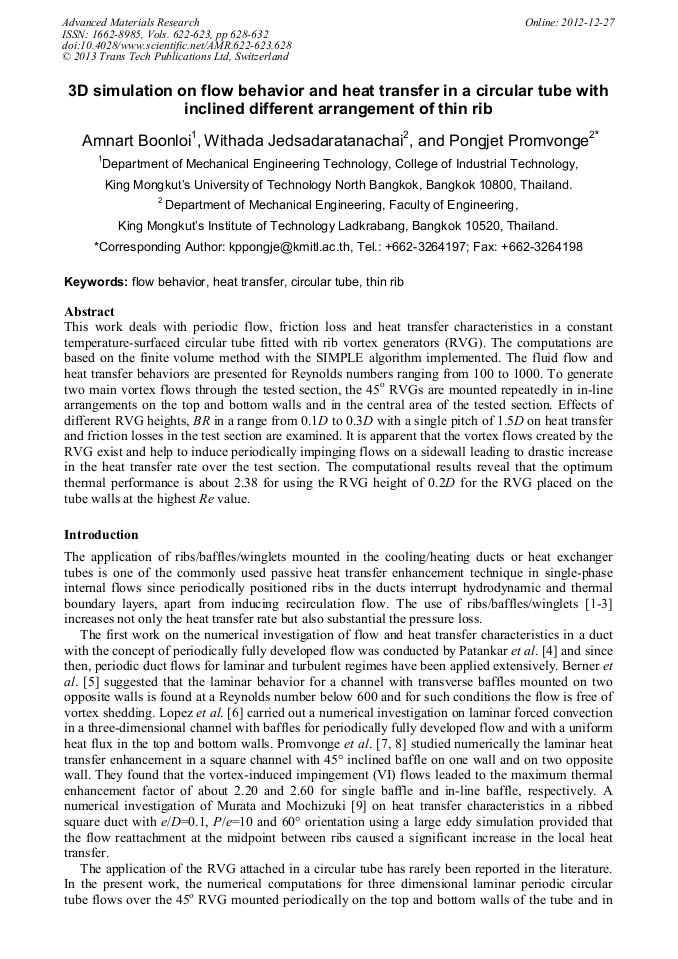

3D Simulation on Flow Behavior and Heat Transfer in a Circular Tube with Inclined Different Arrangement of Thin Rib

Abstract:

This work deals with periodic flow, friction loss and heat transfer characteristics in a constant temperature-surfaced circular tube fitted with rib vortex generators (RVG). The computations are based on the finite volume method with the SIMPLE algorithm implemented. The fluid flow and heat transfer behaviors are presented for Reynolds numbers ranging from 100 to 1000. To generate two main vortex flows through the tested section, the 45o RVGs are mounted repeatedly in in-line arrangements on the top and bottom walls and in the central area of the tested section. Effects of different RVG heights, BR in a range from 0.1D to 0.3D with a single pitch of 1.5D on heat transfer and friction losses in the test section are examined. It is apparent that the vortex flows created by the RVG exist and help to induce periodically impinging flows on a sidewall leading to drastic increase in the heat transfer rate over the test section. The computational results reveal that the optimum thermal performance is about 2.38 for using the RVG height of 0.2D for the RVG placed on the tube walls at the highest Re value.

• Periodical: Advanced Materials Research (Volumes 622-623)
• Pages: 628-632
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.622-623.628
• Online since: December 2012
• Authors: Amnart Boonloi, Withada Jedsadaratanachai, Pongjet Promvonge
• Keywords: Circular Tube, Flow Behavior, Heat Transfer, Thin Rib

References

[1] P. Promvonge and C. Thianpong, (2008). Thermal performance assessment of turbulent channel flows over different shaped ribs. Int Commun Heat Mass Transf, vol. 35, pp.1327-1334.

DOI: 10.1016/j.icheatmasstransfer.2008.07.016

[2] S. Sripattanapipat and P. Promvonge, (2009). Numerical analysis of laminar heat transfer in a channel with diamond-shaped baffles. Int. Commun. Heat Mass Transf, vol. 36, pp.32-38.

DOI: 10.1016/j.icheatmasstransfer.2008.09.008

[3] J.C. Han, Y.M. Zhang and C.P. Lee, (1991). Augmented heat transfer in square channels with parallel, crossed and V-shaped angled ribs, ASME, J. Heat Transf, vol. 113, pp.590-596.

DOI: 10.1115/1.2910606

[4] S.V. Patankar, C.H. Liu and E.M. Sparrow, (1977). Fully developed flow and heat transfer in ducts having streamwise-periodic variations of cross sectional area. ASME J. Heat Transf. pp.180-186.

DOI: 10.1115/1.3450666

[5] C. Berner, F. Durst, D.M. McEligot, (1984). Flow around baffles. Trans. ASME J. Heat Transfer, vol. 106, pp.743-749.

DOI: 10.1115/1.3246747

[6] J.R. Lopez, N.K. Anand, and L.S. Fletcher, (1996). Heat transfer in a three-dimensional channel with baffles. Numer. l Heat Transf. A: Appl, vol. 30, pp.189-205.

DOI: 10.1080/10407789608913835

[7] P. Promvonge, S. Sripattanapipat, S. Tamna, S. Kwankaomeng and C. Thianpong, (2010). Numerical investigation of laminar heat transfer in a square channel with 45 deg inclined baffles. Int. Commun. Heat Mass Transf, vol. 37, pp.170-177.

DOI: 10.1016/j.icheatmasstransfer.2009.09.010

[8] P. Promvonge, S. Sripattanapipat and S. Kwankaomeng, (2010). Laminar periodic flow and heat transfer in square channel with 45° inline baffles on two opposite. Int. J. Therm. Sci, vol. 49, pp.963-975.

DOI: 10.1016/j.ijthermalsci.2010.01.005

[9] A. Murata, and S. Mochizuki, (2001). Comparison between laminar and turbulent heat transfer in a stationary square duct with transverse or angled rib turbulators, Int. J. Heat Mass Transf, vol. 44, pp.1127-1141.

DOI: 10.1016/s0017-9310(00)00180-0

[10] S.V. Patankar, (1980). Numerical heat transfer and fluid flow (McGraw-Hill).

[11] F. Incropera and P.D. Dewitt, (2006). Introduction to heat transfer 5rd edition (John Wiley & Sons Inc).
