Stress Induced in Al2O3 Films as Deposited onto Al2O3TiC Substrate by RF Diode Sputtering

H. Panitchakan; Pichet Limsuwan

doi:10.4028/www.scientific.net/AMR.622-623.716

Paper Titles

Tailoring the Hysteresis Loop of the Si/Cu(10nm)/FeMn(10-30nm)/CoFeB(10nm) Bilayer System
p.695

Investigations on the Effect of Tool Speed and Feed Rate on the Friction Stir Processed AZ31B Magnesium Alloys
p.700

Effect of Process Parameters on Microstructure and Mechanical Properties on Severe Plastic Deformation Process of Aa7075-T6 Aluminum Alloy
p.705

Comparison of Bubble Electrospinning and Needle Electrospinning of Ethylcellulose Ultrafine Fibres
p.710

Stress Induced in Al₂O₃ Films as Deposited onto Al₂O₃TiC Substrate by RF Diode Sputtering
p.716

Hydrogen Integration in Refinery Using MINLP Method
p.720

Thermoelectric Module of P-Type Ca-Co-O/N-Type ZnO Thin Films
p.726

The Structural Stabilities and Electronic Properties of Orthorhombic and Rhombohedral LaCrO₃ — A First-Principles Study
p.734

The Damage Behaviour of Composite Tube with Pin Joint Holes
p.739

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 622-623Stress Induced in Al2O3 Films as Deposited onto...

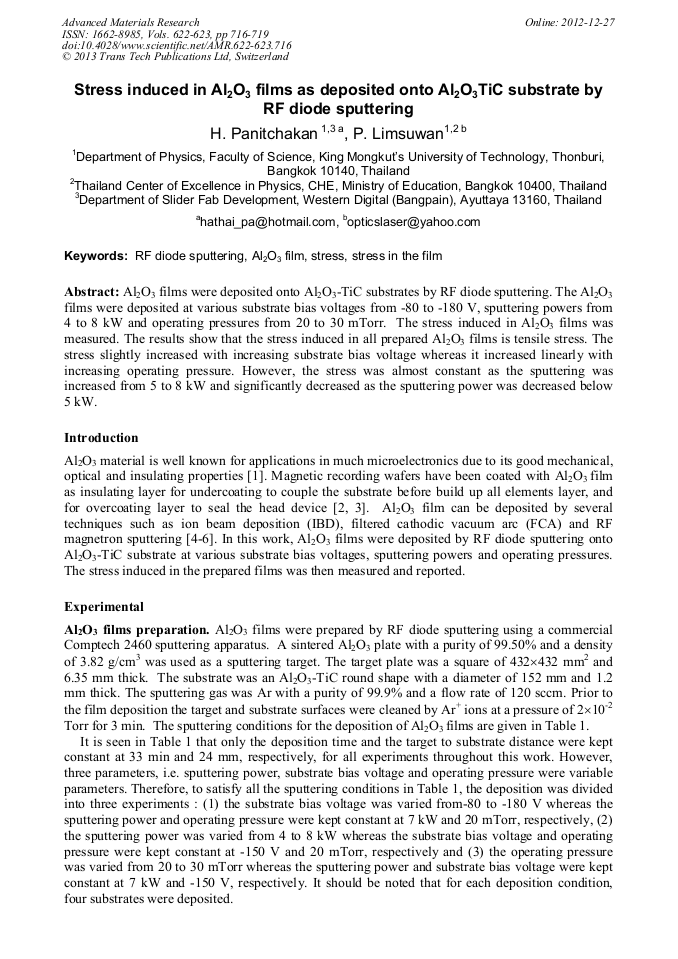

Stress Induced in Al₂O₃ Films as Deposited onto Al₂O₃TiC Substrate by RF Diode Sputtering

Abstract:

Al₂O₃ films were deposited onto Al₂O₃-TiC substrates by RF diode sputtering. The Al₂O₃ films were deposited at various substrate bias voltages from -80 to -180 V, sputtering powers from 4 to 8 kW and operating pressures from 20 to 30 mTorr. The stress induced in Al2O3 films was measured. The results show that the stress induced in all prepared Al₂O₃ films is tensile stress. The stress slightly increased with increasing substrate bias voltage whereas it increased linearly with increasing operating pressure. However, the stress was almost constant as the sputtering was increased from 5 to 8 kW and significantly decreased as the sputtering power was decreased below 5 kW.

You might also be interested in these eBooks

Manufacturing Science and Technology III

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 622-623)

Pages:

716-719

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.622-623.716

Citation:

Cite this paper

Online since:

December 2012

Authors:

H. Panitchakan, Pichet Limsuwan

Keywords:

Al₂O₃ Film, RF Diode Sputtering, Stress, Stress in the Film

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] E. Dörre, H. Hübner (eds. ): Alumina processing properties and applications Springer- Average (1984), p.9.

Google Scholar

[2] J. Ahn, U.S. Patent 6, 252, 741. (2001).

Google Scholar

[3] W. Hsiao, P.B.P. Phipps, Y. Shen, J.J. Yang and S.W. Yuan, US. Patent 2004/0070870. (2004).

Google Scholar

[4] M. Tan, S. Tan, Y. Shen. : Ion beam deposition of alumina for recording head Applications (IEEE Trans on Magnetic, USA 1995).

DOI: 10.1109/20.490095

Google Scholar

[5] Y.S. Choong, B.K. Tay, S.P. Lau, X. Shi, Y.H. Cheng: Thin Solid Films 386 (2001), pp.1-5.

Google Scholar

[6] C.M. Chiang, L.S. Chang : Surf. Coat. Technol. 198 (2005), p.152– 155.

Google Scholar

[7] F.C. Marques, P. Wickboldt, D. Pang, J.H. Chen and W. Paul : J. Appl. Phys. 82, 6 (1998), pp.3118-3123.

Google Scholar

[8] Information on http: /www. memsolver. com.

Google Scholar

[9] L.B. Freund, S. Suresh, in: Thin Film Materials Diffusion, The press syndicate of the University Cambridge Publishing , Cambridge, UK (2003), in press.

Google Scholar

[10] K. Koski, J. HoIsa, P. Juliet: Thin Solid Films 339 (1999), pp.240-248.

Google Scholar
