The Optimization Design for Protection Plate Structure of Honing Measuring Head

Abstract:

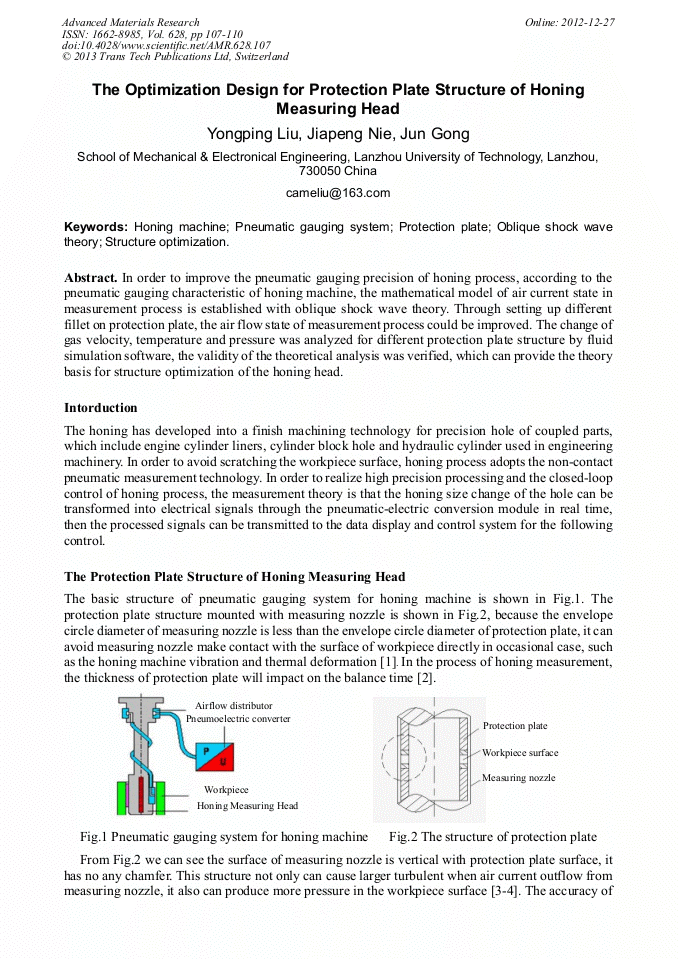

In order to improve the pneumatic gauging precision of honing process, according to the pneumatic gauging characteristic of honing machine, the mathematical model of air current state in measurement process is established with oblique shock wave theory. Through setting up different fillet on protection plate, the air flow state of measurement process could be improved. The change of gas velocity, temperature and pressure was analyzed for different protection plate structure by fluid simulation software, the validity of the theoretical analysis was verified, which can provide the theory basis for structure optimization of the honing head.

• Periodical: Advanced Materials Research (Volume 628)
• Pages: 107-110
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.628.107
• Online since: December 2012
• Authors: Yong Ping Liu, Jia Peng Nie, Jun Gong
• Keywords: Honing Machine, Oblique Shock Wave Theory, Pneumatic Gauging System, Protection Plate, Structure Optimization
