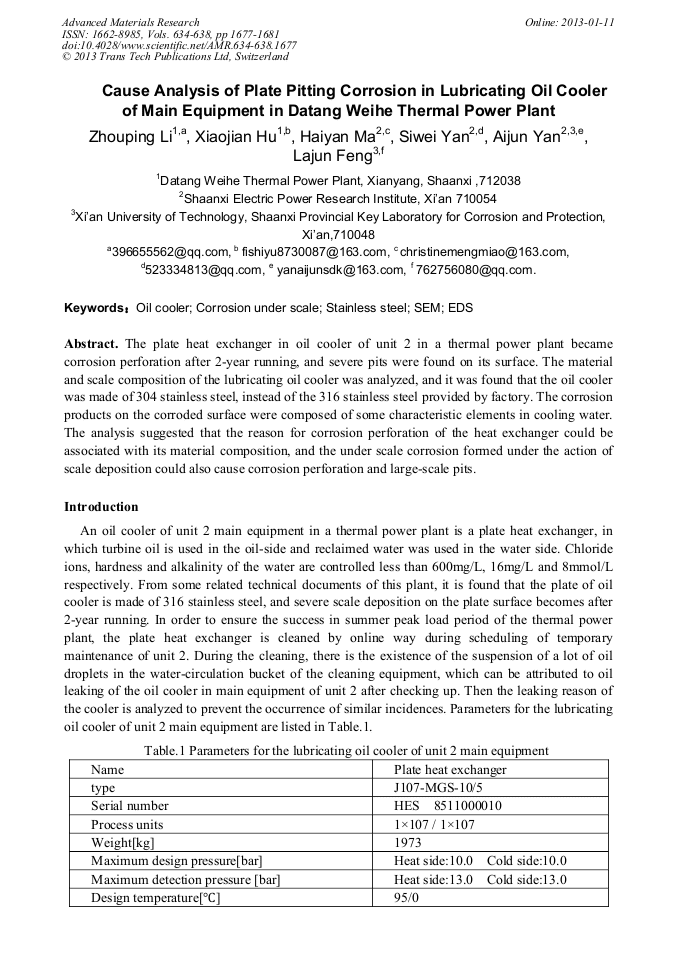

Cause Analysis of Plate Pitting Corrosion in Lubricating Oil Cooler of Main Equipment in Datang Weihe Thermal Power Plant

Abstract:

The plate heat exchanger in oil cooler of unit 2 in a thermal power plant became corrosion perforation after 2-year running, and severe pits were found on its surface. The material and scale composition of the lubricating oil cooler was analyzed, and it was found that the oil cooler was made of 304 stainless steel, instead of the 316 stainless steel provided by factory. The corrosion products on the corroded surface were composed of some characteristic elements in cooling water. The analysis suggested that the reason for corrosion perforation of the heat exchanger could be associated with its material composition, and the under scale corrosion formed under the action of scale deposition could also cause corrosion perforation and large-scale pits.

• Periodical: Advanced Materials Research (Volumes 634-638)
• Pages: 1677-1681
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.634-638.1677
• Online since: January 2013
• Authors: Zhou Ping Li, Xiao Jian Hu, Hai Yan Ma, Si Wei Yan, Ai Jun Yan, La Jun Feng
• Keywords: Corrosion under Scale, EDS, Oil Cooler, SEM, Stainless Steel (SS)

References

[1] Chen JiGang, LiangFeng, DingYuHua, LiuYuMin. Boiler tube failure and prevention measures(2)[J] Thermal Power Generation, 2(1992)55~62.

[2] LV Guocheng，CHENG Haidong，XU Chunchun, HE Zonghu. Effect of Strain and Chloride Concentration on Pitting Susceptibility for Type 304 Austenitic Stainless Steel[J]. Chinese Journal ofChemical Engineering，16(2008)314~319.

DOI: 10.1016/s1004-9541(08)60080-4

[3] Zuo Y, Wang H T, Zhao J M, et al. The effects of some anions on the metastable pitting of 316L stainless steel[J]. Corrossion. Science. 44(2002): 13-24.

DOI: 10.1016/s0010-938x(01)00031-2

[4] XU Chunchun, FU Xiaoping, LIU Youping Migration of Various Inorganic Anions and Their Effects on Occluded Corrosion Cell [J]Corrsion Science and Protection Technology, 12(2002): 130~137.

[5] WANG Ying-li, WANG Jian-sheng Corrosion Analysis of Heat Exchanger in Electric Desalter of Delay Cooking Unit[J] Materials for Mechanical Engineering, 32(2008)81~83.

[6] Liu Youping Corrosion Control of Occluded Cells Inside Pits, Crevices and Stress Corrosion Cracks[J] Chemical Industry and Engineering Progress, 1(1995)6~10, 24.

[7] LIU Youping Hydrogen Depolarization Reaction during Localized Corrosion of Stainless Steels in Sodium Chloride Solution[J] Corrsion Science and Protection Technology, 9(1997)115~119.

[8] Chinese Corrosion and Protection Society. Localized Corrosion of Metal [M]. Chemical Industry Press: (1995).
