Effect of Vanadium on Delayed Fracture Resistance of High Strength Pre-Stressed Concrete Steel Bar

Gui Zhi Xiao; Qing Juan Wang; Yu Hua Pang

doi:10.4028/www.scientific.net/AMR.634-638.1708

Paper Titles

Effect of Casting Temperature on the Microstructure of Al-Zn-Mg-Cu Aluminium Alloy Billets Prepared by LFEC Process
p.1690

Effect of Ag Addition on the Microstructure and Properties of Cu-5Cr Base Alloys
p.1694

Effect of Rare Elements on Corrosion Behavior of SPCC in CSP
p.1698

Effect of Austenite Transition under Pulsating Magnetism
p.1704

Effect of Vanadium on Delayed Fracture Resistance of High Strength Pre-Stressed Concrete Steel Bar
p.1708

Effect of Process Temperature on the Microstructure and Properties of Low-Temperature Gas Multi-Component Thermochemical Treatment 45CrMoV Alloy Steel
p.1712

Effect of the Current Density on Oxygen Overpotential and Corrosion Rate of the Al/Pb-Ag-Co Anodes for Zinc Electrowinning
p.1718

Effect of Titanium on the Partition Behavior of Alloying Elements in Single Crystal Superalloys Containing Rhenium
p.1724

Effects of Rolling Temperature on Through-Thickness Deformation and Recrystallization Textures in Heavily Rolled Silicon Steel
p.1729

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 634-638Effect of Vanadium on Delayed Fracture Resistance...

Effect of Vanadium on Delayed Fracture Resistance of High Strength Pre-Stressed Concrete Steel Bar

Abstract:

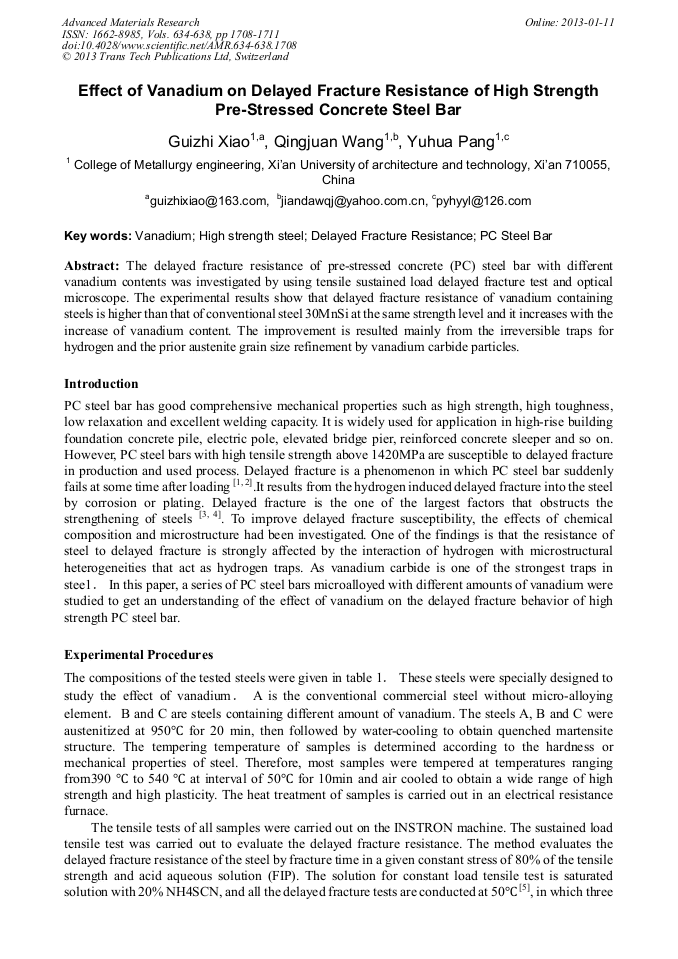

The delayed fracture resistance of pre-stressed concrete (PC) steel bar with different vanadium contents was investigated by using tensile sustained load delayed fracture test and optical microscope. The experimental results show that delayed fracture resistance of vanadium containing steels is higher than that of conventional steel 30MnSi at the same strength level and it increases with the increase of vanadium content. The improvement is resulted mainly from the irreversible traps for hydrogen and the prior austenite grain size refinement by vanadium carbide particles.
