Preparation and Characterization of PA 6/EPT Blends

Chang Cheng Wu; Xi Jun Liu

doi:10.4028/www.scientific.net/AMR.634-638.1947

Paper Titles

Flame Retardant Epoxy Resin Containing Magnesium Phosphinate
p.1927

Interfacial Debonding Force and Shear Strength of Sugar Palm (Arenga pinnata) Fiber Reinforced Composites by Pull-Out Test
p.1931

Porous Sepiolite/Starch Composites：Preparation, Structure and Absorption Properties
p.1937

Preparation and Application of Inorganic Nanoparticle-Polymer Composites
p.1943

Preparation and Characterization of PA 6/EPT Blends
p.1947

Preparation and Characterization of SiO₂-PMMA with Different Shell Thickness Using AGET ATRP
p.1951

Preparation and Properties of Glycerol Plasticized Starch/ Sepiolites Composites
p.1955

Photoluminescence of _Y2O₃:Eu³⁺ Prepared by the Wood Template
p.1962

Preparation and Water Absorbency of Superabsorbent Kaolin/PAA-AM Composite
p.1968

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 634-638Preparation and Characterization of PA 6/EPT...

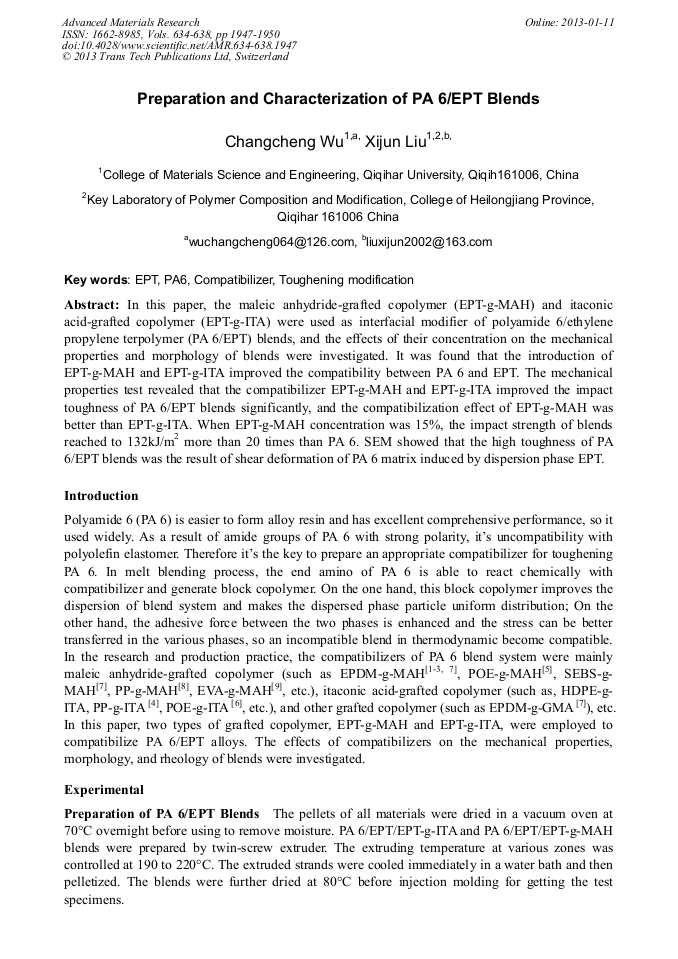

Preparation and Characterization of PA 6/EPT Blends

Abstract:

In this paper, the maleic anhydride-grafted copolymer (EPT-g-MAH) and itaconic acid-grafted copolymer (EPT-g-ITA) were used as interfacial modifier of polyamide 6/ethylene propylene terpolymer (PA 6/EPT) blends, and the effects of their concentration on the mechanical properties and morphology of blends were investigated. It was found that the introduction of EPT-g-MAH and EPT-g-ITA improved the compatibility between PA 6 and EPT. The mechanical properties test revealed that the compatibilizer EPT-g-MAH and EPT-g-ITA improved the impact toughness of PA 6/EPT blends significantly, and the compatibilization effect of EPT-g-MAH was better than EPT-g-ITA. When EPT-g-MAH concentration was 15%, the impact strength of blends reached to 132kJ/m2 more than 20 times than PA 6. SEM showed that the high toughness of PA 6/EPT blends was the result of shear deformation of PA 6 matrix induced by dispersion phase EPT.
