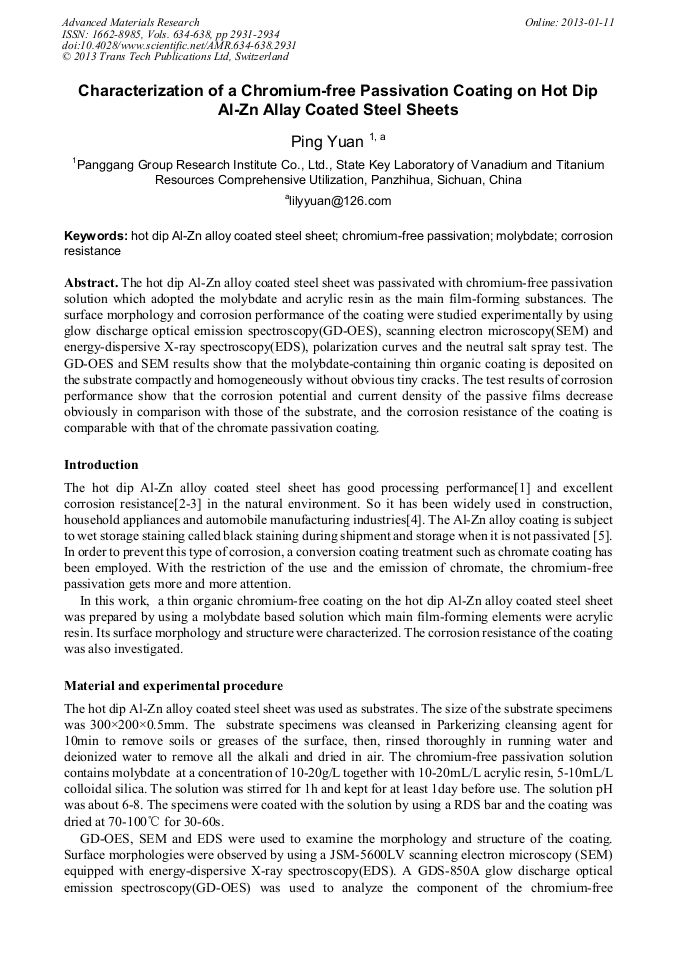

Characterization of a Chromium-Free Passivation Coating on Hot Dip Al-Zn Allay Coated Steel Sheets

Abstract:

The hot dip Al-Zn alloy coated steel sheet was passivated with chromium-free passivation solution which adopted the molybdate and acrylic resin as the main film-forming substances. The surface morphology and corrosion performance of the coating were studied experimentally by using glow discharge optical emission spectroscopy(GD-OES), scanning electron microscopy(SEM) and energy-dispersive X-ray spectroscopy(EDS), polarization curves and the neutral salt spray test. The GD-OES and SEM results show that the molybdate-containing thin organic coating is deposited on the substrate compactly and homogeneously without obvious tiny cracks. The test results of corrosion performance show that the corrosion potential and current density of the passive films decrease obviously in comparison with those of the substrate, and the corrosion resistance of the coating is comparable with that of the chromate passivation coating.

• Periodical: Advanced Materials Research (Volumes 634-638)
• Pages: 2931-2934
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.634-638.2931
• Online since: January 2013
• Authors: Ping Yuan
• Keywords: Chromium-Free Passivation, Corrosion Resistance, Hot Dip Al-Zn Alloy Coated Steel Sheet, Molybdate

References

[1] Di bailin: Surface Technology Vol.23(1994), p.1, in Chinese

[2] Zhang Hongbing: Journal of Shanghai Jiaotong University Vol. 32(1998), p.121, in Chinese

[3] Li Xin, Li Yan and Wei Xujun: Journal of Northeastern University (Natural Science) Vol.28(2007), p.1425, in Chinese

[4] Yang Chun-mao: Anshan Iron and Steel Technology Vol. 3(1989), p.68, in Chinese

[5] A.M. Rocco, Tania M.C., Renata A.Simão, and Wilma C. Lima: Surface and Coatings Technology Vol.179(2004), p.135

[6] Xiaoming Chen, Guangyu Li, Jianshe Lian, and Qing Jiang: Applied Surface Science Vol.255(2008), p.2322
