Corrosion Behavior of Alloys for Hot Dipping

You Bin Wang; Jian Min Zeng

doi:10.4028/www.scientific.net/AMR.634-638.2935

Paper Titles

The Relationship between Phase Structure and Melting Characteristics of High Cesium Content KF-CsF-AlF₃ Aluminum Flux
p.2909

CTOD Evaluation for HAZ Toughness of Offshore Structure Steels with Heavy Thickness Based on API RP 2Z
p.2916

Synchrotron Radiation SAXS Study of Microvoids Structure of PAN Fiber during Spinning Process
p.2923

Characterization of a Chromium-Free Passivation Coating on Hot Dip Al-Zn Allay Coated Steel Sheets
p.2931

Corrosion Behavior of Alloys for Hot Dipping
p.2935

Development of a Methanol Resistant Epoxy Coating
p.2939

Effect of Contact Angle Hysteresis on Liquid Bridge while Sphere Particles are in Relative Movement
p.2945

Effects of Alkaline Nano-SiO₂ Abrasive on Planarization of 300mm Copper Patterned Wafer
p.2949

Effect of Pre-Shot Peening on Plasma Nitriding Kinetics of Austenitic Stainless Steel
p.2955

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 634-638Corrosion Behavior of Alloys for Hot Dipping

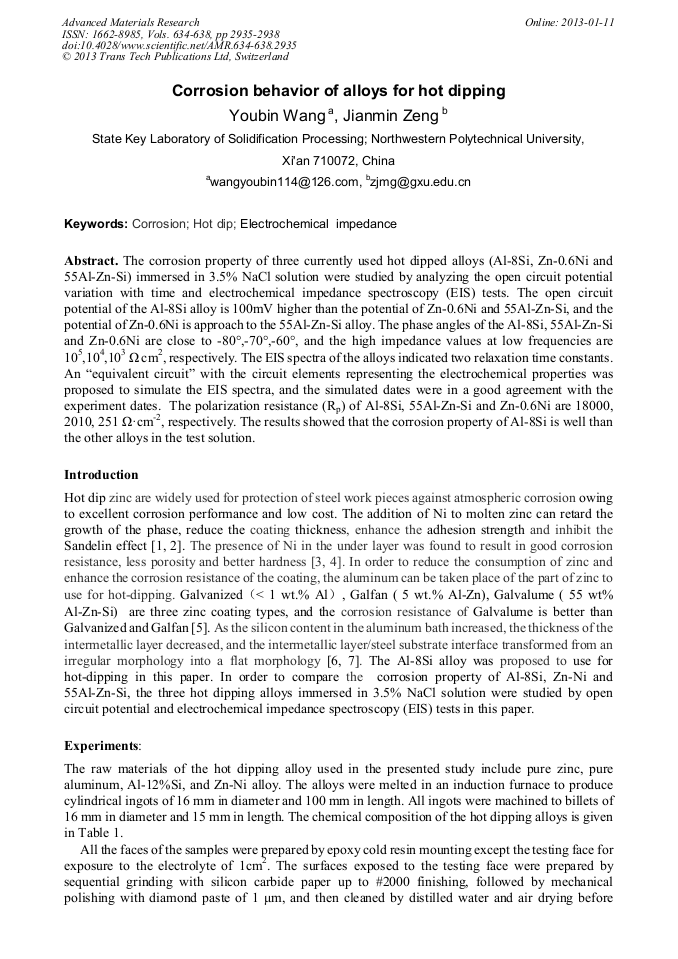

Corrosion Behavior of Alloys for Hot Dipping

Abstract:

The corrosion property of three currently used hot dipped alloys (Al-8Si, Zn-0.6Ni and 55Al-Zn-Si) immersed in 3.5% NaCl solution were studied by analyzing the open circuit potential variation with time and electrochemical impedance spectroscopy (EIS) tests. The open circuit potential of the Al-8Si alloy is 100mV higher than the potential of Zn-0.6Ni and 55Al-Zn-Si, and the potential of Zn-0.6Ni is approach to the 55Al-Zn-Si alloy. The phase angles of the Al-8Si, 55Al-Zn-Si and Zn-0.6Ni are close to -80°,-70°,-60°, and the high impedance values at low frequencies are 105,104,103 Ω cm2, respectively. The EIS spectra of the alloys indicated two relaxation time constants. An “equivalent circuit” with the circuit elements representing the electrochemical properties was proposed to simulate the EIS spectra, and the simulated dates were in a good agreement with the experiment dates. The polarization resistance (Rp) of Al-8Si, 55Al-Zn-Si and Zn-0.6Ni are 18000, 2010, 251 Ω•cm-2, respectively. The results showed that the corrosion property of Al-8Si is well than the other alloys in the test solution.
