Formation of Cr-Bearing Species in Stainless Steelmaking Dust by Induction Furnace

Yi Fang; Guo Jun Ma; Xiang Zhang; Chen Hui Wang; Bu Xiao Kuang; Fu Yang

doi:10.4028/www.scientific.net/AMR.634-638.3185

Paper Titles

The Technical Analysis of Energy Saving and Emission Reducing in China’s Iron and Steel Industry Based on LEAP Mode
p.3163

The Study of Nitrogen Solubility in High Nitrogen Steels Smelted with High Pressure and Bottom-Blowing Nitrogen
p.3170

Production of SG Grade Pig Iron in Mini Blast Furnace
p.3174

Study on Technology of Iron Removal during Recycling of Shell of Investment Casting
p.3181

Formation of Cr-Bearing Species in Stainless Steelmaking Dust by Induction Furnace
p.3185

Aluminum Removal from Leach Liquor of Nitric Acid Pressure Leaching Laterite Ores
p.3191

Atmospheric Acid Leaching of a Ferruginous Nickel Laterite
p.3196

Crystal Structure of bi(1,10-phenanthroline)- copper-Cl chlorine hydrate, [CuCl(C1₂H₈N₂)₂]Cl_0.5(H₂O)_5.5
p.3201

Effect of Out-Phase Electromagnetic Field on the HDC Casting Process of Commercial Aluminum
p.3205

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 634-638Formation of Cr-Bearing Species in Stainless...

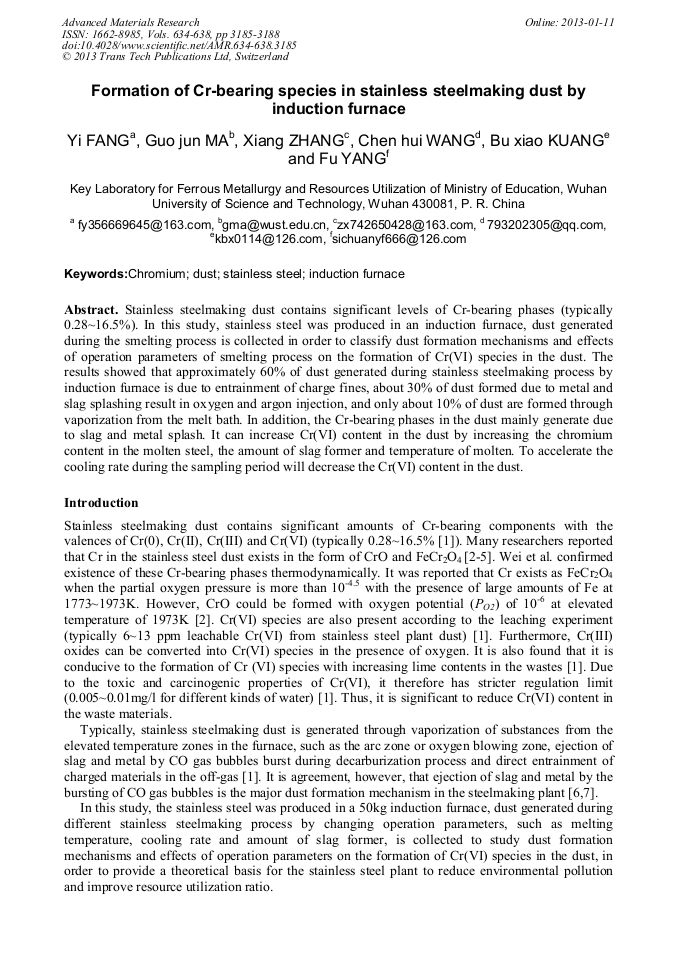

Formation of Cr-Bearing Species in Stainless Steelmaking Dust by Induction Furnace

Abstract:

Stainless steelmaking dust contains significant levels of Cr-bearing phases (typically 0.28~16.5%). In this study, stainless steel was produced in an induction furnace, dust generated during the smelting process is collected in order to classify dust formation mechanisms and effects of operation parameters of smelting process on the formation of Cr(VI) species in the dust. The results showed that approximately 60% of dust generated during stainless steelmaking process by induction furnace is due to entrainment of charge fines, about 30% of dust formed due to metal and slag splashing result in oxygen and argon injection, and only about 10% of dust are formed through vaporization from the melt bath. In addition, the Cr-bearing phases in the dust mainly generate due to slag and metal splash. It can increase Cr(VI) content in the dust by increasing the chromium content in the molten steel, the amount of slag former and temperature of molten. To accelerate the cooling rate during the sampling period will decrease the Cr(VI) content in the dust.

You might also be interested in these eBooks

Advances in Chemical, Material and Metallurgical Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 634-638)

Pages:

3185-3188

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.634-638.3185

Citation:

Cite this paper

Online since:

January 2013

Authors:

Yi Fang, Guo Jun Ma, Xiang Zhang, Chen Hui Wang, Bu Xiao Kuang, Fu Yang

Keywords:

Chromium, Dust, Induction Furnace, Stainless Steel (SS)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G. J. Ma and A. M. Garbers-Craig: Journal of S A Min. and Metall., Vol. 106(2006), p.753.

Google Scholar

[2] G. J. Ma, H. W. Ni and Z. L. Xue: Special Steel Vol. 27(2006), p.37 (in Chinese).

Google Scholar

[3] F.R. Wei, Y.L. Zhang, W.J. Wei, X.G. Yang: J. Proc. Eng., Vol. 11(2011), p.786(in Chinese).

Google Scholar

[4] B. Peng and J. Peng: Journal of North China Uni. of Tech., Vol. 15(2003), p.34 (in Chinese).

Google Scholar

[5] J. Lobel, B. Peng, J. A. Kozinski and M. Bourassa: Iron and Steelmaker, Vol. 25 (2000), p.41.

Google Scholar

[6] A. G. Guézennec, J. C. Huber, F. Patisson, P. Sessiecq, J. P. Birat and D. Ablitzer: Powder Technology, Vol. 157(2005), p.2.

DOI: 10.1016/j.powtec.2005.05.006

Google Scholar

[7] C. Delhaes, A. Hauck and D. Neuschutz: Steel research, Vol. 64 (1993), p.22.

Google Scholar

[8] Y. Lee and C.L. Nassaralla: Metallurgical and Materials Transactions, Vol. 28B (1997), p.855.

Google Scholar
