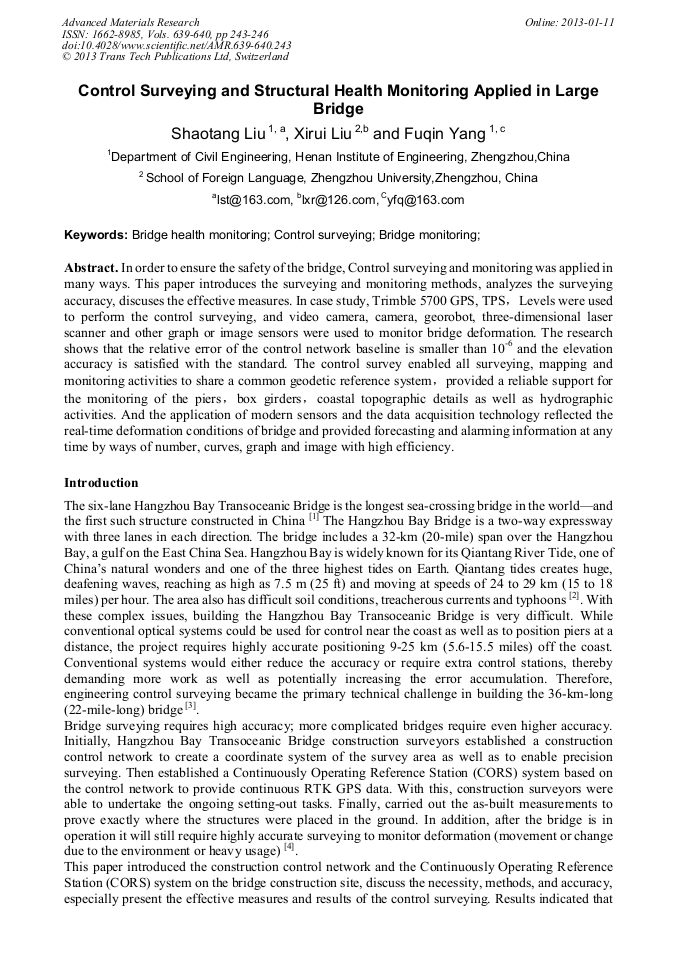

Control Surveying and Structural Health Monitoring Applied in Large Bridge

Abstract:

In order to ensure the safety of the bridge, Control surveying and monitoring was applied in many ways. This paper introduces the surveying and monitoring methods, analyzes the surveying accuracy, discuses the effective measures. In case study, Trimble 5700 GPS, TPS，Levels were used to perform the control surveying, and video camera, camera, georobot, three-dimensional laser scanner and other graph or image sensors were used to monitor bridge deformation. The research shows that the relative error of the control network baseline is smaller than 10-6 and the elevation accuracy is satisfied with the standard. The control survey enabled all surveying, mapping and monitoring activities to share a common geodetic reference system，provided a reliable support for the monitoring of the piers，box girders，coastal topographic details as well as hydrographic activities. And the application of modern sensors and the data acquisition technology reflected the real-time deformation conditions of bridge and provided forecasting and alarming information at any time by ways of number, curves, graph and image with high efficiency.

• Periodical: Advanced Materials Research (Volumes 639-640)
• Pages: 243-246
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.639-640.243
• Online since: January 2013
• Authors: Shao Tang Liu, Xi Rui Liu, Fu Qin Yang
• Keywords: Bridge Health Monitoring, Bridge Monitoring, Control Surveying

References

[1] Ashkenazi, V; Dodson, A H; Moore, T; Roberts, G W. "Real Time OTF GPS Monitoring of the Humber Bridge." Surveying World, Vol. 4 ( 4) (1996) 26-28.

[2] Information on http://www.pobonline.com/Articles/Cover_Story/

[3] Emily Cosser, Gethin W. Roberts, Xiaolin Meng and Alan Dodson. " Single Frequency GPS for Bridge Deflection Monitoring".Progress and Results of 1st FIG International Symposium on Engineering Surveys for Construction Works and Structural Engineering, Nottingham, United Kingdom, 2004.

[4] LIU Shao-tang. Application of RTK in Boundary Survey in Zhengzhou CBD Development Area .Beijing Surveying and Mapping. 3 (2005)55-56.

[5] LIU Shao-tang，XIAO Hai-hong, ZhAO Zhan-yang. "GPS Pilling Positioning System for Hang-Zhou Bay Major Bridge."Journal of Southwest University of Science and Technology (Natural science edition),4 (2005)42-45.

[6] LIU Shao-tang，WANG Zhi-wu, ZhAO Zhan-yang. " Positioning Techenique for Hang-Zhou Bay Major Bridge Pilling. " Railway Engineering. 5(2005)25-27.

[7] LIU Shao-tang，ZHAO Zhan-yang. "Application of total station in Hang-Zhou Bay Major Bridge Pilling. " Journal of Water Resources and Architectural Engineering. 1 (2006) 24-27.

[8] Shaotang LIU,Xiaoming YANG,Yubao LIANG, Xusheng CUI. Applications of Multimedia Technology in Deformation Monitoring of Subway Tunnel. Vol.2 of 2010 Second International Conference on MultiMedia and Information Technology（MMIT2010）. ( 2010)47-50.

DOI: 10.1109/mmit.2010.76
