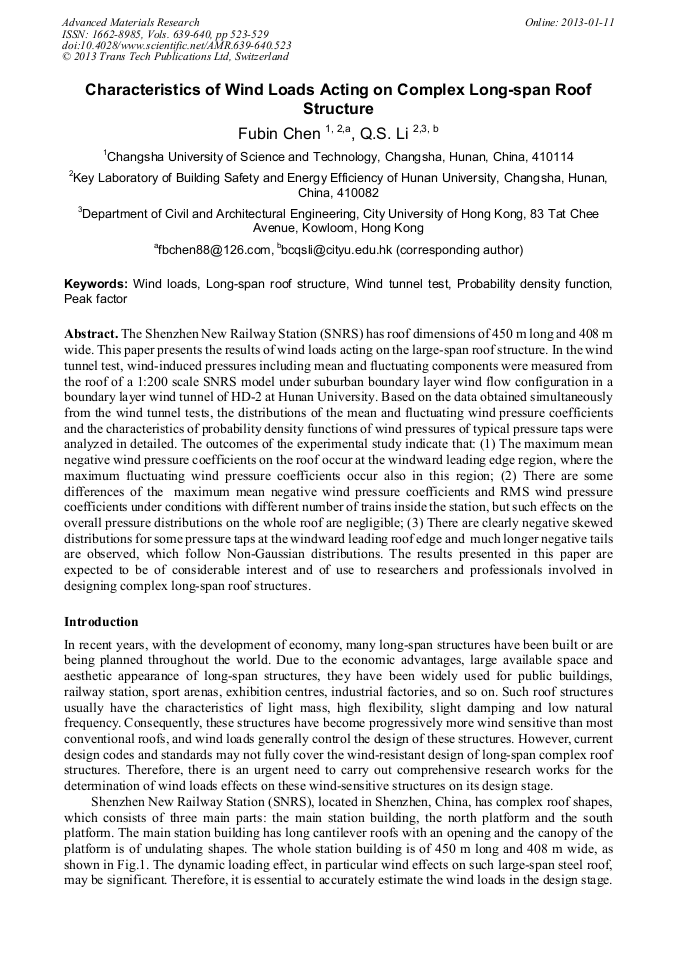

Characteristics of Wind Loads Acting on Complex Long-Span Roof Structure

Abstract:

The Shenzhen New Railway Station (SNRS) has roof dimensions of 450 m long and 408 m wide. This paper presents the results of wind loads acting on the large-span roof structure. In the wind tunnel test, wind-induced pressures including mean and fluctuating components were measured from the roof of a 1:200 scale SNRS model under suburban boundary layer wind flow configuration in a boundary layer wind tunnel of HD-2 at Hunan University. Based on the data obtained simultaneously from the wind tunnel tests, the distributions of the mean and fluctuating wind pressure coefficients and the characteristics of probability density functions of wind pressures of typical pressure taps were analyzed in detailed. The outcomes of the experimental study indicate that: (1) The maximum mean negative wind pressure coefficients on the roof occur at the windward leading edge region, where the maximum fluctuating wind pressure coefficients occur also in this region; (2) There are some differences of the maximum mean negative wind pressure coefficients and RMS wind pressure coefficients under conditions with different number of trains inside the station, but such effects on the overall pressure distributions on the whole roof are negligible; (3) There are clearly negative skewed distributions for some pressure taps at the windward leading roof edge and much longer negative tails are observed, which follow Non-Gaussian distributions. The results presented in this paper are expected to be of considerable interest and of use to researchers and professionals involved in designing complex long-span roof structures.

• Periodical: Advanced Materials Research (Volumes 639-640)
• Pages: 523-529
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.639-640.523
• Online since: January 2013
• Authors: Fu Bin Chen, Q.S. Li
• Keywords: Long-Span Roof Structure, Peak Factor, Probability Density Function, Wind Load, Wind Tunnel Test

References

[1] K.M. Lam, J.G. Zhao. Occurrence of peak lifting actions on a large horizontal cantilevered roof. Journal of Wind Engineering and Industrial Aerodynamics, 90(2002):897-940.

DOI: 10.1016/s0167-6105(02)00212-x

[2] H. Kawai, R. Yoshie, R. Wei, M. Shimura. Wind-induced response of a large cantilevered roof. Journal of Wind Engineering and Industrial Aerodynamics, 83(1999):263-275.

DOI: 10.1016/s0167-6105(99)00077-x

[3] H. Kawai. Structure of conical vortices related with suction fluctuation on a flat roof in oblique smooth and turbulent flows. Journal of Wind Engineering and Industrial Aerodynamics, 69-71(1997):579-588.

DOI: 10.1016/s0167-6105(97)00188-8

[4] H. Kawai, G.. Nishimura. Characteristics of fluctuating suction and conical vortices on a flat roof in oblique flow. Journal of Wind Engineering and Industrial Aerodynamics, 60(1996):211-225.

DOI: 10.1016/0167-6105(96)00035-9

[5] C. W. Letchford, G. P. Killen. Equivalent static wind loads for cantilevered grandstand roofs. Journal of Wind Engineering and Industrial Aerodynamics, 24(2002):207-217.

DOI: 10.1016/s0141-0296(01)00085-2

[6] G. P. Killen, C. W. Letchford. A parametric study of wind loads on grandstand roofs. Journal of Engineering Structures,23(2001):725-735.

DOI: 10.1016/s0141-0296(00)00069-9

[7] C. W. Letchford, A. Row, A. Vitale, J. Wolbers. Mean wind loads on porous canopy roof. Journal of Wind Engineering and Industrial Aerodynamics, 84(2000):197-213.

DOI: 10.1016/s0167-6105(99)00103-8

[8] Y. Uematsu, E. Iizumi, Theodore Stathopoulos. Wind force coefficients for designing free-standing canopy roofs. Journal of Wind Engineering and Industrial Aerodynamics, 95(2007):1486-1510.

DOI: 10.1016/j.jweia.2007.02.015

[9] Y. Uematsu, O. Kuribara, M. Yamada, A. Sasaki, T. Hongo. Wind-induced dynamic behavior and its load estimation of a single-layer latticed dome with a long span. Journal of Wind Engineering and Industrial Aerodynamics, 89(2001):1671-1687.

DOI: 10.1016/s0167-6105(01)00125-8

[10] Y. Uematsu, M. Yamada, A. Inoue, T. Hongo. Wind loads and wind-induced dynamic behavior of a single-layer latticed dome. Journal of Wind Engineering and Industrial Aerodynamics, 66(1997):227-248.

DOI: 10.1016/s0167-6105(97)00133-5

[11] GB50009-2001. Load code for the design of building structures. Beijing: China Architecture ＆ Building Press; 2002 [in Chinese].

[12] M. Gioffre, V. Gusella, M. Grigoriu. Non-Gaussian wind pressure on prismatic building. I: stochastic field. Journal of structural engineering, ASCE, 127(2001):981-989.

DOI: 10.1061/(asce)0733-9445(2001)127:9(981)

[13] Q.S. Li, I. Calderone, W.H. Melbourne. Probabilistic characteristics of pressure fluctuations in separated and reattaching flows for various free-steam turbulence. Journal of Wind Engineering and Industrial Aerodynamics, 82(1999):125-145.

DOI: 10.1016/s0167-6105(98)00214-1

[14] J.L.D. Ribeiro, J. Blessmann. Probability distribution of forces and pressure on a square cylinder. Journal of Wind Engineering and Industrial Aerodynamics, 41-44(1992):813-824.

DOI: 10.1016/0167-6105(92)90502-2
