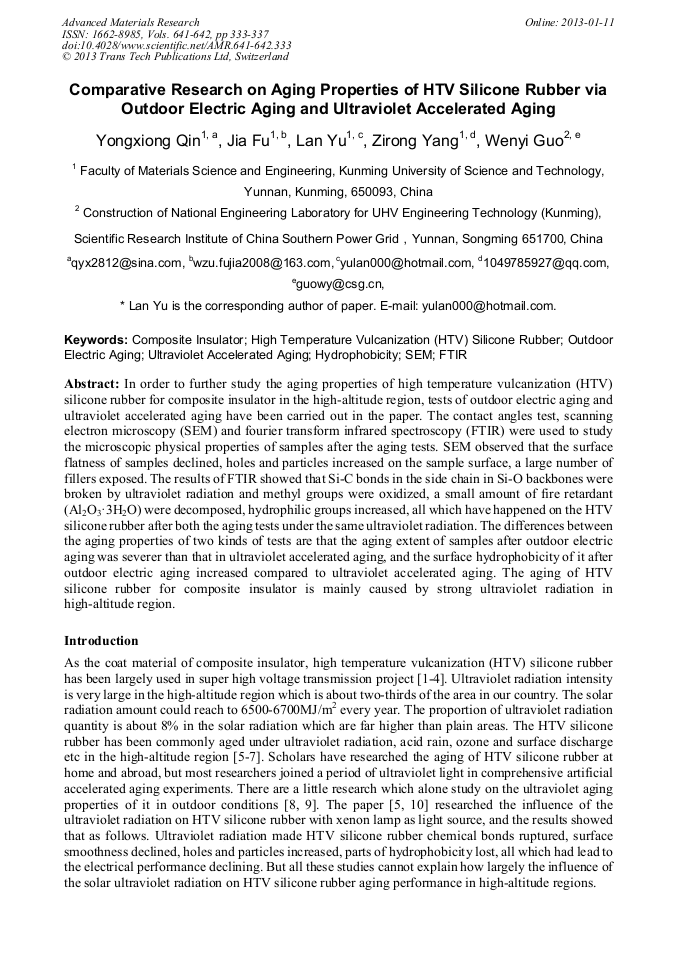

Comparative Research on Aging Properties of HTV Silicone Rubber via Outdoor Electric Aging and Ultraviolet Accelerated Aging

Abstract:

In order to further study the aging properties of high temperature vulcanization (HTV) silicone rubber for composite insulator in the high-altitude region, tests of outdoor electric aging and ultraviolet accelerated aging have been carried out in the paper. The contact angles test, scanning electron microscopy (SEM) and fourier transform infrared spectroscopy (FTIR) were used to study the microscopic physical properties of samples after the aging tests. SEM observed that the surface flatness of samples declined, holes and particles increased on the sample surface, a large number of fillers exposed. The results of FTIR showed that Si-C bonds in the side chain in Si-O backbones were broken by ultraviolet radiation and methyl groups were oxidized, a small amount of fire retardant (Al2O3•3H2O) were decomposed, hydrophilic groups increased, all which have happened on the HTV silicone rubber after both the aging tests under the same ultraviolet radiation. The differences between the aging properties of two kinds of tests are that the aging extent of samples after outdoor electric aging was severer than that in ultraviolet accelerated aging, and the surface hydrophobicity of it after outdoor electric aging increased compared to ultraviolet accelerated aging. The aging of HTV silicone rubber for composite insulator is mainly caused by strong ultraviolet radiation in high-altitude region.

• Periodical: Advanced Materials Research (Volumes 641-642)
• Pages: 333-337
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.641-642.333
• Online since: January 2013
• Authors: Yong Xiong Qin, Jia Fu, Lan Yu, Zi Rong Yang, Wen Yi Guo
• Keywords: Composite Insulator, FT-IR, High Temperature Vulcanization (HTV) Silicone Rubber, Hydrophobicity, Outdoor Electric Aging, SEM, Ultraviolet Accelerated Aging

References

[1] Zhixian Qiu: High pressure composite insulator and its application (China power press, China 2006).

[2] Zhengmin Li, Tanfeng Hu: Review of power transmission and transformation engineering of composite insulator. Northwest Electric Power Technology. 34-36 (2006), p.34.

[3] K. Wieczorek, J.F. Eski, W. Bretuj: Effect of shape of insulator housings and positions of composite insulators on ageing resistance under High Voltage and Precipitation. IEEE Transactions on Dielectrics and Electrical Insulation. 1044-1045 (2012).

DOI: 10.1109/tdei.2012.6215111

[4] L. Kumosa, M. Kumosa, D. Armentrout: Resistance to stress corrosion cracking of unidirectional ECR-glass/polymer composites for high voltage composite insulator applications. Ei. Applied Science and Manufacturing. 1-3(2003), p.34.

DOI: 10.1016/s1359-835x(02)00260-9

[5] Hexuan Zhao, Shurong Zhao, Lianzhang Wang: Influence of UV-irradiation on degradation of silicone rubber composite insulators in high-altitude regions. North China Electric Power. 10 (2009), p.3.

[6] Dui Wu: The sun's ultraviolet radiation and its biological effects. Meteorology. 54-55 (2001), p.26.

[7] V.M. Moreno, R.S. Gorur, A. Kroese: Impact of corona on the long term performance of non-ceramic insulators. IEEE Transactions on Dielectric and Electrical Insulators. 80-95 (2003), p.10.

DOI: 10.1109/tdei.2003.1176565

[8] B. Dhananjay, J.V. Rauch, C.K. Malek: Surface modification and aging studies of addition-curing silicone rubbers by oxygen plasma. Sci. EurPolym J. 2130-2139 (2008), p.44.

DOI: 10.1016/j.eurpolymj.2008.04.012

[9] Yu Yin, Xidong Ling, Qingfeng Li, Zhiyi Su, etal: Artificial accelerated ageing test of composite insulators. Ei. Power System Technology. 70-74 (2006), p.3.

[10] Yunpeng Liu, Qiusha Wang, Fangcheng Lv, etal: Influence of UV radiation on HTV silicon rubber performance. Ei. High Voltage Engineering. 2635-2635 (2010), p.36.

[11] Seog-Hyeon Kim, A. Edward, Cherney, etal: Chemical changes at the surface of RTV silicone rubber coatings on insulators during dry-band arcing. IEEE Transactions on Dielectrics and Electrical Insulation. 113-115 (2004), p.1004.

DOI: 10.1109/94.300238

[12] Hee-Youn Bok, Chang Suhuh: Surface degradation of HTV silicone rubber and EPDM used for outdoor insulators under accelerated ultraviolet weathering condition. IEEE Transactions on Dielectrics and Electrical Insulation. 1021-1024 (2005), p.12.

DOI: 10.1109/tdei.2005.1522194

[13] V. Rajin, K. Udayakumar: Degradation of silicone rubber under AC or DC voltages in radiation environment. IEEE Transactions on Dielectrics and Electrical Insulation. 837-838 (2009), p.3.

DOI: 10.1109/tdei.2009.5128524

[14] Chemical synthetic materials research institute, Synthetic materials prevent ageing practical manual (Chemical Industry Press, China1991).
